The XKC-Y23-V contactless liquid level sensor is the compact size design, with high and low signal,widely suitable for both tube or flat surface liquid container.
Request Quote PDF Format
Buy At AliExpress
Description Mechanical Size and Cable Length How to Work with other Devices? Any Applicaiton Example ? Review
Description
The intelligent non-contact liquid level sensor produced by trumsense precision technology uses advanced signal processing technology and high-speed signal processing chip to break through the influence of the wall thickness of the container and realize the true non-contact detection of the liquid level in the closed container. . The liquid level sensor (probe) is installed above and below the outer wall of the container to be tested (the high and low positions of the liquid level). The non-metallic container does not need to be opened, and the installation is simple and does not affect the production. The liquid level of various toxic substances, strong acids, strong alkalis and various liquids in the high-pressure closed container can be detected. The liquid level sensor has no special requirements on the material of the liquid medium and the container, and can be widely used.

Working Principle
The intelligent non-contact liquid level sensor uses the sensing capacitance of water to detect the presence of liquid. When there is no liquid approaching the sensor, the sensor has a certain static capacitance due to the distributed capacitance. When the liquid level slowly rises close to the inductor, the parasitic capacitance of the liquid will be coupled to the static capacitor, causing the final capacitance of the inductor to become larger. The changed capacitance signal is then input to the control IC for signal conversion, which will change. The capacitance is converted into the amount of change of an electrical signal, and then a certain algorithm detects and judges the degree of the change. When the amount of change exceeds a certain threshold, the liquid level is considered to reach the sensing point.

Product Elite Feature:
 1. Non-contact liquid level sensor, suitable for non-metallic container outer wall without direct contact with liquid, no corrosion by corrosive liquid such as strong acid and alkali, free from scale or other debris.
 2. Intelligent liquid level reference adjustment and liquid level memory function, liquid level status display mode, can realize multi-point series connection; support high and low level output.
communication interface output (when selecting and manufacturer) Description can be).
 3. The detection is accurate and stable, and the boiling water level can be detected.
 4. Pure electronic circuit structure, non-mechanical working mode, stable performance and longevity.
 5. High stability, high sensitivity, strong interference ability, free from external electromagnetic interference, special treatment for power frequency interference and common mode interference, to be compatible with all 5~24V power adapters on the market.
 6. Strong compatibility, through a variety of non-metallic containers, such as plastic, glass, ceramics, etc., the sensing distance can reach 20mm; liquid, powder, particles can be detected.
 7. Open collector output mode, wide voltage range (5V), suitable for connecting various circuits and product applications.

Signal output:
The intelligent non-contact liquid level sensor has only one signal output interfaces:
High and low level output interface: Model: XKC-Y23-V


Parameter:
Project Name Parameters
Input voltage（In VCC） DC 5V
Current consumption 5 mA
Output voltage (high) 5 V
Output voltage (low) below 0.4 V
Output Current 1~100mA
Response time 500mS
Working temperature -10~100℃
Induction thickness (sensitivity) range 0~20mm
Communications ——
Humidity 5%~100%
Container Material Plastic, glass, ceramics and other containers
Protection grade IP67



Wiring:
1: Brown wire(VCC):  Power + 5V（Power+）
2: Black wire: Signal Output
3: Blue wire: Power - 5V (Power-)








Typical Installtion：
1) Adhesive installation method: as shown in the figure below:
    It can be directly attached to the outer wall of a plastic container.
    Adhesive materials can be glass glue, 704 silicone, waterproof 3M double-sided tape, etc.
    Precautions:
                      1: Do not use double-sided tape made of foam cotton.
                      2: The container must be made of insulating material.
                      3: As far as possible, use a uniform material without air interlayer, no bubbles, no water
                          absorption, and the dielectric constant is not easy to change the container.

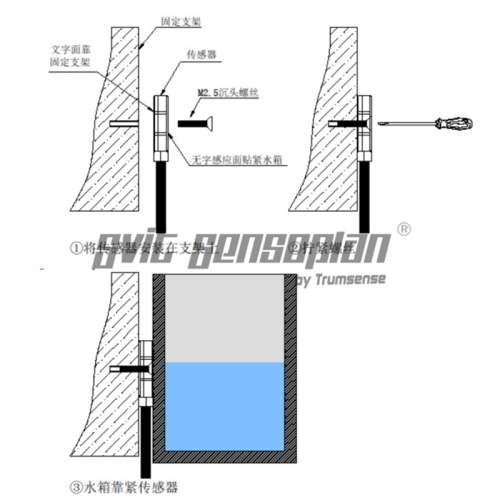

2) Screw fixing installation:

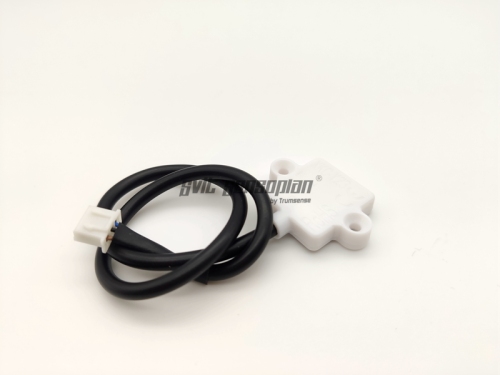

Order Photo Show:












Mechanical Size and Cable Length





How to Work with other Devices?
This touchless liquid level sensor, can work perfectly with LED strip,IC board,PCB board,alarm,relay and the electromagnetic valve... ...

Any Applicaiton Example ?
This contactless liquid level sensor, has wide application, like automated control, sewage environmental protection treatment, water tower anti-dry control, agricultural insurance machines, household appliances, aquarium water control, medical equipment, drone liquid sensing... ...
