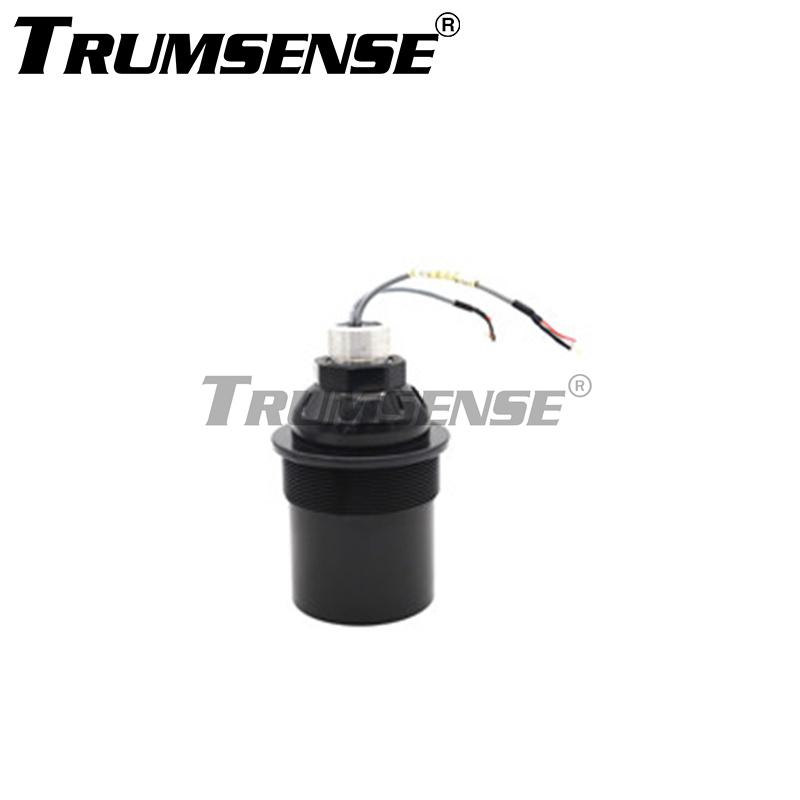

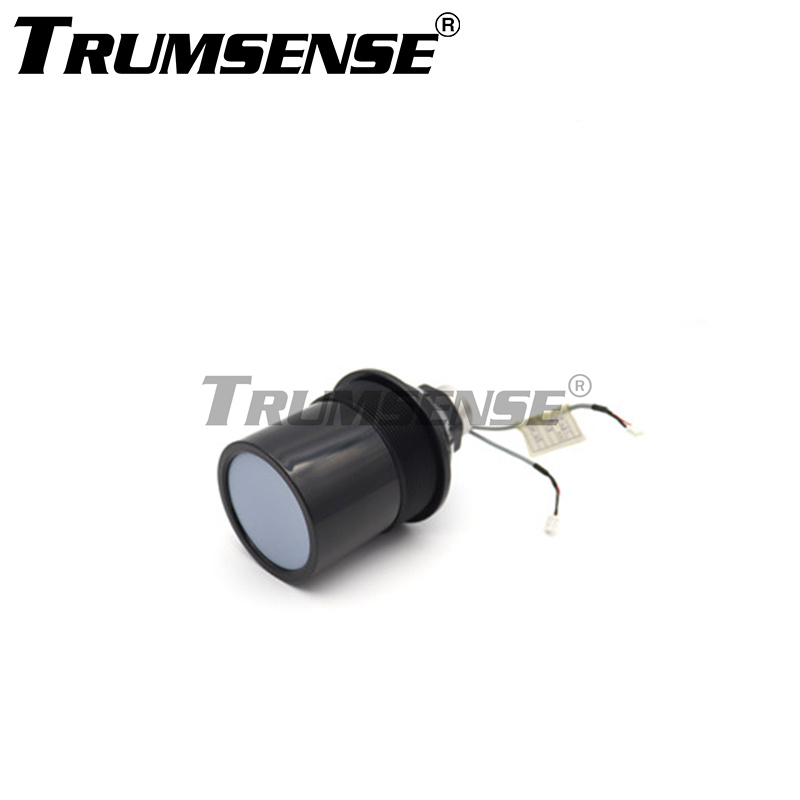

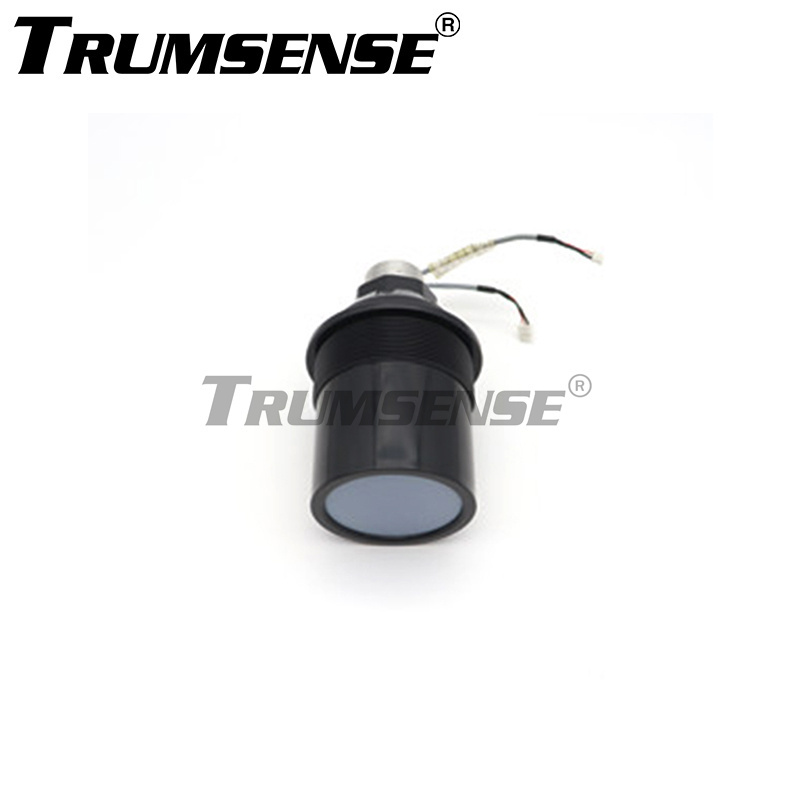

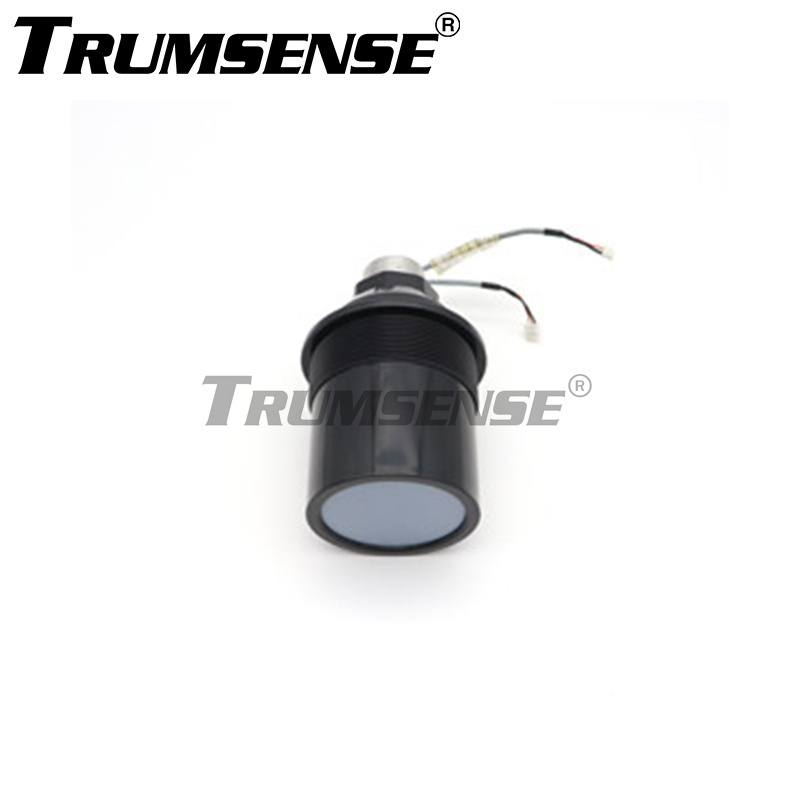

Ultrasonic Transducer 49khz Ordinary Transducer Integrated Gas Medium Ultrasonic Transducer 0.4 To 8 Meters Range

Item No.: 00209
Range: 0.4~8m
Working temperature: -40~+80℃
Frequency: 49KHz±5%
Working voltage: peak voltage <1500Vpp
Description Admittance Curve Of The Transducer Mechanical Size Review
Description
Range: 0.4~8m
Working temperature: -40~+80℃
Frequency: 49KHz±5%
Working voltage: peak voltage <1500Vpp


Technical Parameter:
Frequency: 49KHz±5%
Suggested range: 0.4~8m
Minimum impedance: 400Ω±20%
Electric capacity: 2000pF±20% @1KHz
Sensitivity: Load driving voltage: 850Vpp, distance 0.6m, echo amplitude 500mV
Working voltage: peak voltage <1500Vpp
Working temperature: -40~+80℃
Pressure: ≤3kg or 0.3MPa
Angle: (beam width) half power angle@-3dB: 8°±10%, sharpness angle: 18°±10%
Shell material: ABS
Purpose: Ultrasonic level gauge, monitoring, anti-collision, security... ...
Installation size: Bottom mounting thread: M60×2 or G2A
Protection level: IP68
Weight: 410g±5%
Wiring instructions: Integrated: interface (3PIN, 2.54mm terminal): red positive, white negative, black shielded wire; interface (3PIN, 2.0mm terminal): white and black are temperature sensor wires (MF58);

This product is suitable for: ultrasonic level gauge, ultrasonic monitoring, ultrasonic anti-collision, ultrasonic security, ultrasonic switch
Admittance Curve Of The Transducer
Mechanical Size
