Genuine Trumsense XKC-Y25-V
DC 5 to 24V Contactless Liquid / Water Level Sensor
For Flat Surface of Liquid or Water Container
Suitable for any Liquid with Conductivity
Suitalble for any Non-metallic Material Liquid / Water Hose or Container or Tank
※Cable length: 2 meter
※ Terminal connector: not included ( naked wire for free wiring)
1. Working Principle of Trumsense XKC-Y25-V ( DC 5 to 24 V ) Contactless Liquid / Water Sensor or Liquid Detector or Fluid Monitor :
Intelligent non-contact liquid level sensor produced by Shenzhen Trumsense Technology Co.,Ltd. uses the inductive capacitance of water to detect whether there is liquid. When there is no liquid approaching the sensor, due to the presence of distributed capacitance on the sensor, there is a certain static capacitance on the ground of the sensor. When the liquid level slowly rises and approaches the sensor, the parasitic capacitance of the liquid will be coupled to the static capacitance, so that the final capacitance value of the sensor becomes larger, the changed capacitance signal is then input to the control IC for signal conversion, the changed capacitance is converted into a certain amount of change in electrical signal, and then a certain algorithm is used to detect and judge the degree of this change, when this change exceeds a certain threshold value. The capacitance signal is then input to the control IC for signal conversion, and the changed capacitance is converted into a certain amount of change in electrical signal, and then a certain algorithm is used to detect and judge the degree of this change, when this change exceeds a certain threshold value It is considered that the liquid level has reached the sensing point.
2. Brief Introdution of Trumsense XKC-Y25-V ( DC 5 to 24 V ) Contactless Liquid / Water Sensor or Liquid Detector or Fluid Monitor :
The intelligent non-contact liquid level sensor (hereinafter referred to as the liquid level sensor) adopts advanced signal processing technology and high-speed signal processing chip, which breaks through the influence of the wall thickness of the container and realizes the true non-contact detection of the liquid level height in the closed container.The liquid level sensor (probe) is installed above and below the outer wall of the container under test (the high and low levels of the liquid level). There is no need to open holes in the non-metallic container, the installation is simple, and the production is not affected.It can realize the detection of various toxic substances, strong acids, strong alkalis and the liquid levels of various liquids in high-pressure airtight containers.The liquid level sensor has no special requirements for the material of the liquid medium and container, and can be widely used.
3. Elite Features of Trumsense XKC-Y25-V ( DC 5 to 24 V ) Contactless Liquid / Water Sensor or Liquid Detector or Fluid Monitor:
● Trumsense XKC-Y25-V non-contact liquid level sensor, suitable for all kinds of non-metallic containers, the outer wall of non-metallic pipes does not need to be in direct contact with the liquid, will not be corroded by corrosive liquids such as strong acids and alkalis, and will not be affected by scale or other debris. It can be completed outside the container or pipeline to detect whether there is liquid inside.
● Intelligent liquid level reference adjustment and liquid level memory function, liquid level status display mode, multi-point series wiring can be realized.
● The detection is accurate and stable, and the liquid level of boiling water can be detected.
● Pure electronic circuit structure, non-mechanical working method, stable performance and durable life.
● High stability, high sensitivity, strong interference ability, not subject to external electromagnetic interference, special treatment for power frequency interference and common-mode interference is made to be compatible with all 5V,12V, 24V power adapters on the market.
● Strong compatibility, penetrates containers and pipes of various non-metallic materials, such as plastic, glass, ceramics and other containers, and the diameter of the sensor tube is above 11mm, it is suitable for liquid level detection of various curved, curved, and cylindrical containers or pipes.
● Wide voltage range (5 to 24V), suitable for connecting various circuits and product applications.
4. Application Prerequisites of XKC-Y25-V ( DC 5 to 24 V ) Contactless Liquid / Water Sensor or Liquid Detector or Fluid Monitor:
a. Viscosity of measured liquid medium
Dynamic viscosity < 10mPaS normal measurement. 10mPaS < dynamic viscosity < 30mPaS may affect the detection. Dynamic viscosity > 30mPaS due to a large number of liquid attached to the container wall, can not be measured.
b.With the increase of temperature viscosity decreases, most of the high viscosity of the liquid is more affected by temperature, so pay attention to the liquid temperature effect when measuring liquid viscosity.
c. Pay attention to keep the sensor clean, as far as possible to achieve anti-corrosion and avoid other objects violent collision, hit.
d. Outdoor installation should avoid direct sunlight and rain direct flow to the sensor body, and away from the high heat source and pay attention to ventilation, if the ambient temperature exceeds the rated temperature, the corresponding cooling protection measures should be taken.
e. When the ambient temperature is lower than the normal operating temperature range of the sensor, the instrument protection box or other protective rain cap device can be used for antifreeze protection, and pay attention to keep the sensor dry. Sensors should be regularly maintained. ( The detection time interval is determined by the user according to the specific situation ).
5. Application Environment of Trumsense XKC-Y25-V ( DC 5 to 24 V ) Contactless Liquid / Water Sensor or Liquid Detector or Fluid Monitor:
1. This product is suitable for liquid pipe or water container wall thickness below 20mm
2. The liquid hose or water container material should be non-metallic one
3. The liquid with hose or tank should has conductivity,because XKC-Y25-V working principle is capacitive.
※ If your liquid hose or container is metal ,please refer to the below product, which is specially designed for the metal material contaner or hose because its working principle is ultrasonic:
Ultrasonic Working Ultrasonic Liquid Level Detector For Metal Container Wall Used For Special Industry Contactless Level Sensor:
http://www.aliexpress.com/item/32948776110.html
http://www.aliexpress.com/item/1005002071930161.html
6. Parameters of Trumsense XKC-Y25-V ( DC 5 to 24 V ) Contactless Liquid / Water Sensor or Liquid Detector or Fluid Monitor:
7. Size of Trumsense XKC-Y25-V ( DC 5 to 24 V ) Contactless Liquid / Water Sensor or Liquid Detector or Fluid Monitor (※ the one you will receive will be 2 meters cable length without ternimal connector):
8. Wiring Diagram of XKC-Y25-V ( DC 5 to 24 V ) Contactless Liquid / Water Sensor or Liquid Detector or Fluid Monitor:
9. Sensitivity Admustment of XKC-Y25-V ( DC 5 to 24 V ) Contactless Liquid / Water Sensor or Liquid Detector or Fluid Monitor:
Use a small screwdriver to rotate the potentiometer at the side of the sensor. The anti-clockwise rotation sensitivity increases, and the clockwise rotation sensitivity decreases. As show below:
10. Installation of Trumsense XKC-Y25-V ( DC 5 to 24 V ) Contactless Liquid / Water Sensor or Liquid Detector or Fluid Monitor:
Preparation of installation: clearance
Requirements for the clearance between the contact surface of the sensor(or probe) and the outer wall of the containerThe contact surface of the sensor (or probe) and the outer wall of the container should be tightly pasted with AB or othersolid-resistant glue.If there are special requirements, the gap should be less than 0.5mm, preferably no gap, otherwise itmay affect the measurement accuracy
The following description is about the installation method of XKC-Y25 series products, including requirements and installation methods of the tested container.
According to their materials: the tested containers are divided into 3 categories
1>insulating material container
Containers made of non-metallic materials with flat surface, uniform thickness, compact materials, and good insulationproperties, such as glass, plastic, non-absorbent ceramics, acrylic, rubber and other aterials or their composite materials installation method:
a. If the container wall where the measuring probe is installed is of multi-layer material, the layers should be in close contact with each other without bubbles or gas interlayers. The inner and outer surfaces of the container wall should be flat.
b. Wall thickness: 0-20mm
c. Tank type: spherical tank, horizontal tank, vertical tank, etc.

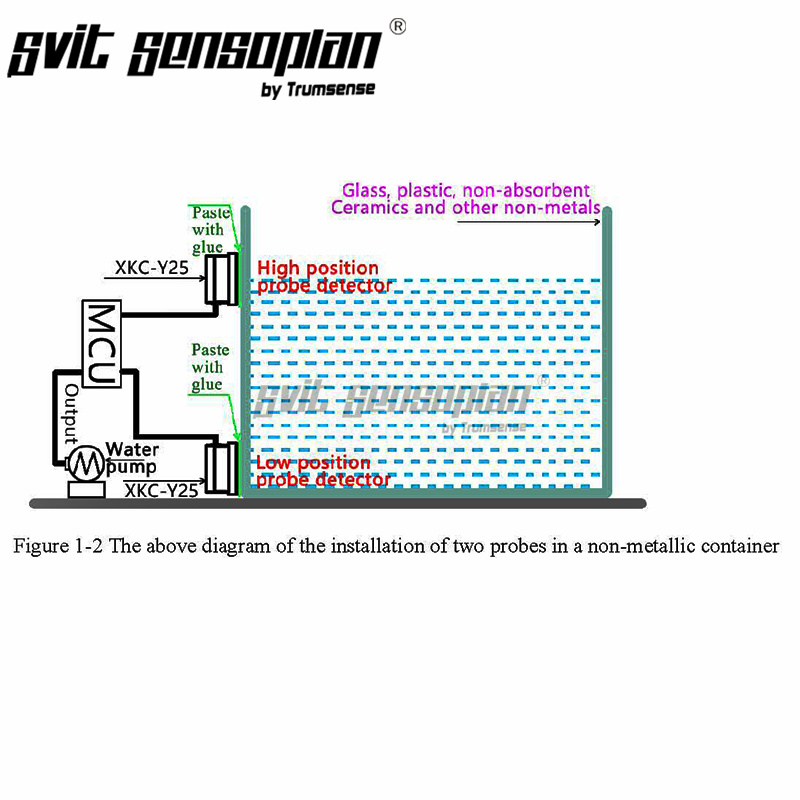

d. The installation method of this kind of material container is shown in Figure 1;The probe can be pasted and fixed with glue or fixed on the outer wall of the container with a non-metal bracket.
※ Try to avoid metal and other parts where the probe is installed, so as not to affect the detection.
※ The location where the probe is installed should avoid the liquid inlet and the flow path of the liquid.
※ There should be no silt or other debris inside the container facing the low-level probe, so as not to affect the detection;

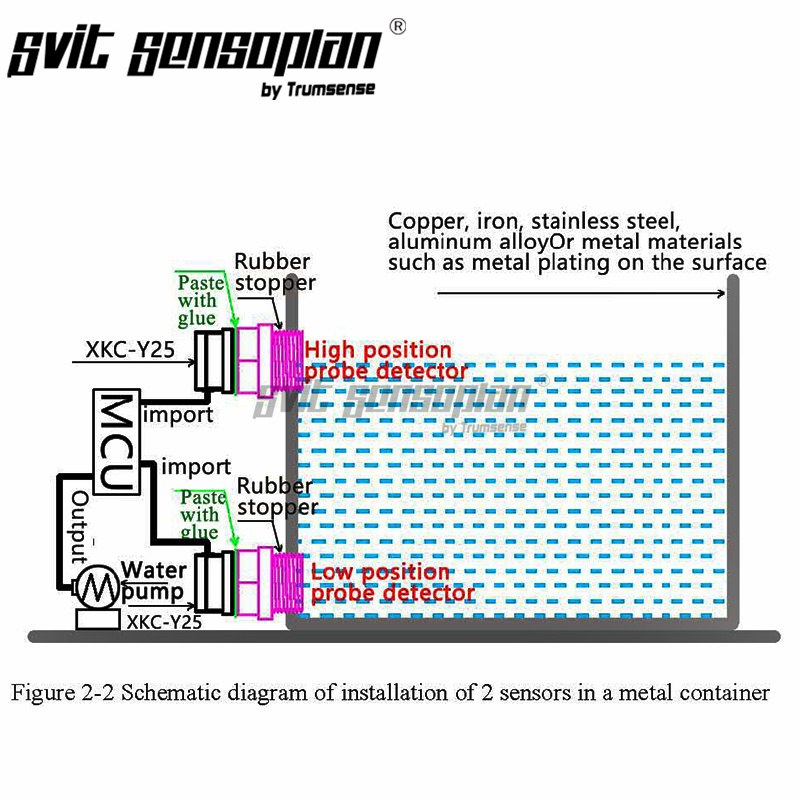

2>Metal conductive material container
Containers made of metal or other conductive materials; such as stainless steel, copper, aluminum alloy or materials with electroplated metal layers on the surface.Because capacitive sensors are sensitive to all conductive objects, this typeof container cannot be directly attached to the outer wall of the container, therefore, for containers of this type of material,holes need to be made on the side of the container. The installation method is as follows:
a. Prepare two rubber plugs and the necessary tools for opening threaded holes;
b. Two threaded holes are opened in the high position and the low position respectively, and the hole diameter matches the size of the rubber plug;
c. Put a nubber plug on the threaded hole and tighten it to check for water leakage, and add glue to seal if necessary,
d. Paste the sensor on the rubber plug with glue and fix it with the bracket. After the glue has solidified, remove the bracket.

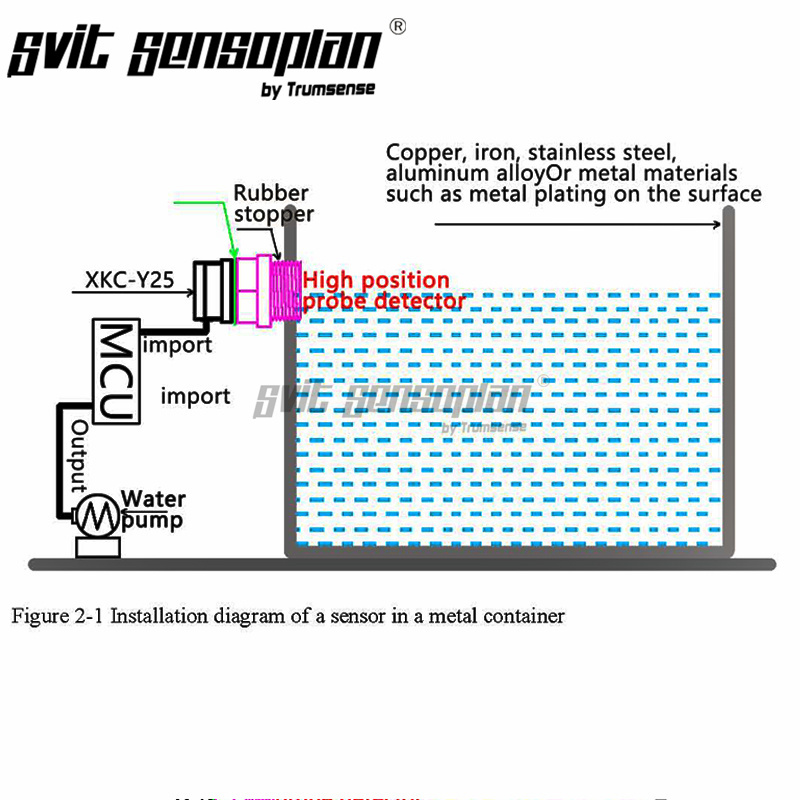

The installation of the metal container is shown in Figure 2.
3>Non-metallic materials that absorb water
Containers made of ceramics, tiles, bricks, tiles, cement, wood boards and other materials are insulators or weakly conductive. This kind of container may not be detected when it is close to the liquid level sensor when it is dry and without water, but when the container is filled with water, the container wall will absorb water, causing the container wall to become a conductor, even if the container is empty when the sensor is close to the container wall,the signal will alsobe detected.
If the sensor is to be used on a container of this type of material the installation method should be in accordance with the installation method of a metal container. For the installation method, refer to above described
instruction " 2>Metal conductive material container " and Figure 2;
or use an external pipe to install:
External pipes are divided into extemal non-metallic pipes and external metal pipes
a.The installation method of external non-metallic pipes is shown in Figure 3-1 and Figure 3-2.
b.The instalation method ofexternal metal pipes is shown in Figure 4-1 and Figure 4-2.
c. Figure 5 The sensor is installed on the iron pipe with the three-prong joint (the installation diagram of metal and water-absorbing container)
d. Figure 6 The sensor is directly attached to the non-metallic water pipe with a smaller diameter (diagram of installation of insulating container)
11. Trouble Shooting of Trumsense XKC-Y25-V ( DC 5 to 24 V ) Contactless Liquid / Water Sensor or Liquid Detector or Fluid Monitor:
12. Product Maintenance of Trumsense XKC-Y25-V ( DC 5 to 24 V ) Contactless Liquid / Water Sensor or Liquid Detector or Fluid Monitor:
Pay attention to keeping the liquid level gauge clean, try to prevent corrosion and avoid violent collisions and strikes by other objects.When installing outdoors, avoid direct sunlight on the main body of the level gauge, stay away from heat sources and pay attention to ventilation. If the ambient temperature exceeds the rated temperature, corresponding cooling and protection measures should be taken.
When the ambient temperature is too low, the instrument protection box or other protective devices can be used for antifreeze protection, and care should be taken to keep the liquid level meter dry.
The sensor should be regularly maintained and inspected.(The detection time interval is determined by the unit used according to the specific circumstances).
13. Typical Application of Trumsense XKC-Y25-V ( DC 5 to 24 V ) Contactless Liquid / Water Sensor or Liquid Detector or Fluid Monitor:
The liquid level sensor (probe) is installed on the outer wall of the hose or water tank outer surface. There is no need to open holes in the non-metallic container, the installation is simple, and the production is not affected.It can realize the detection of various toxic substances, strong acids, strong alkalis and the liquid levels of various liquids in high-pressure airtight containers.The liquid level sensor has no special requirements for the material of the liquid medium and container, and can be widely used, it can be used for anywhere there is a hose,pipe,tube,or any water container with flat surface or its interior is made of homogeneous material and there are no vacuoles ,lik e the application fields of medical equipment,smart appliances,agricultural machinery,intelligent water supply for animal husbandry or agriculture drip irrigation, agriculture infiltration irrigation, or agriculture sprinkler irrigation,sewage environmental protection equipment,industrial automation control,water tower, water tank, coffee machine,boiler to prevent dry burning and fish tank living water control and so on... ...

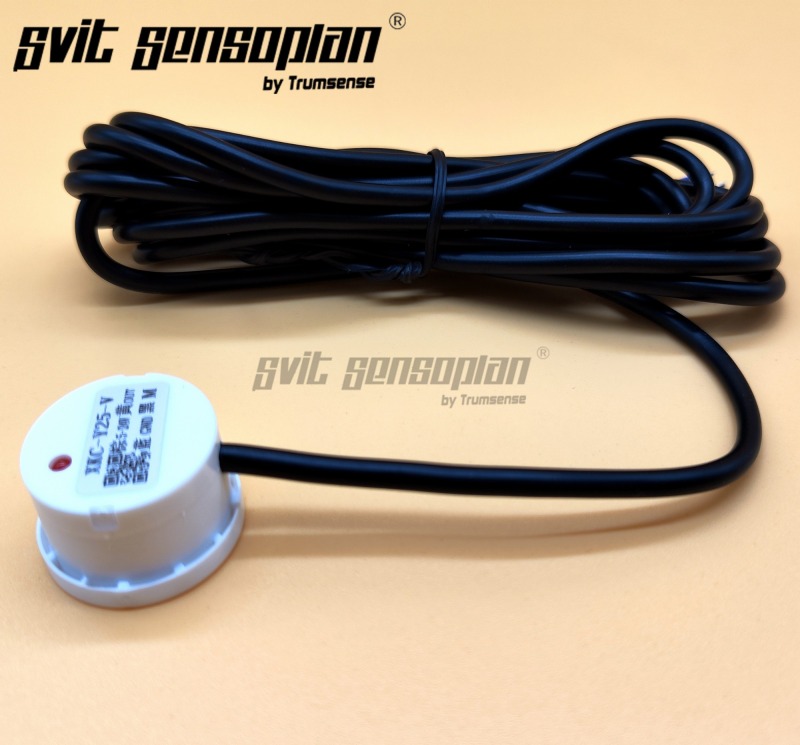

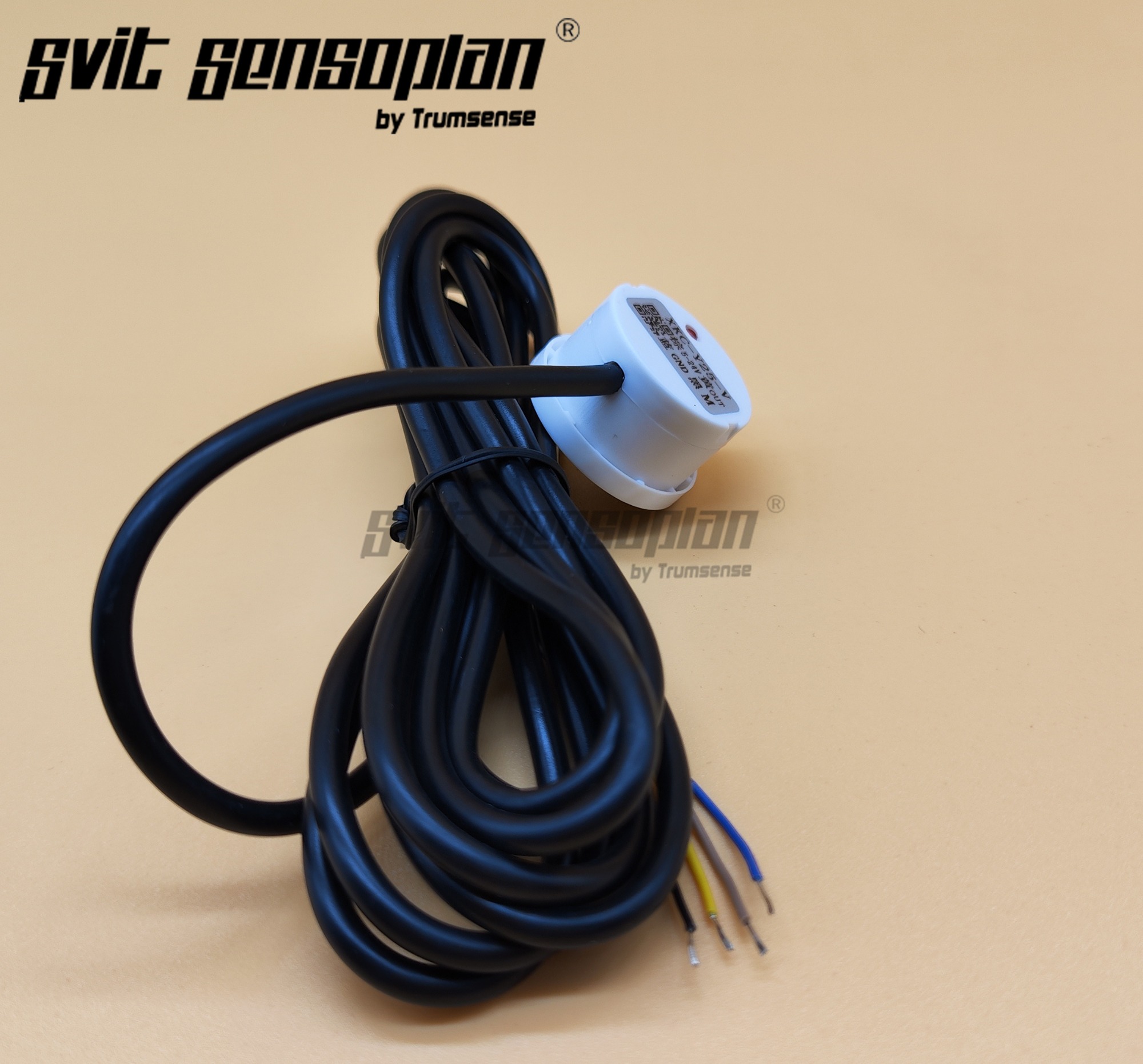

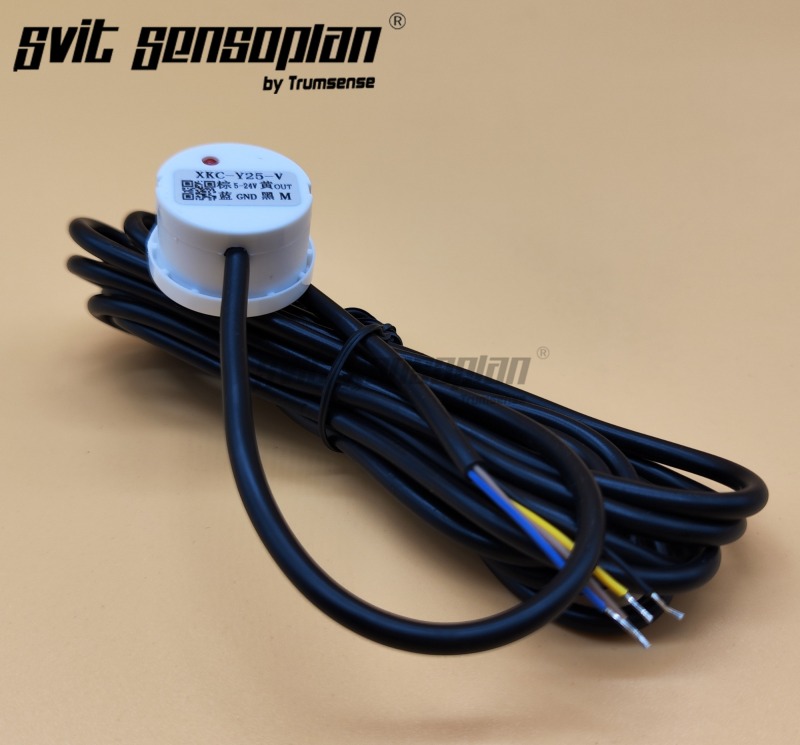

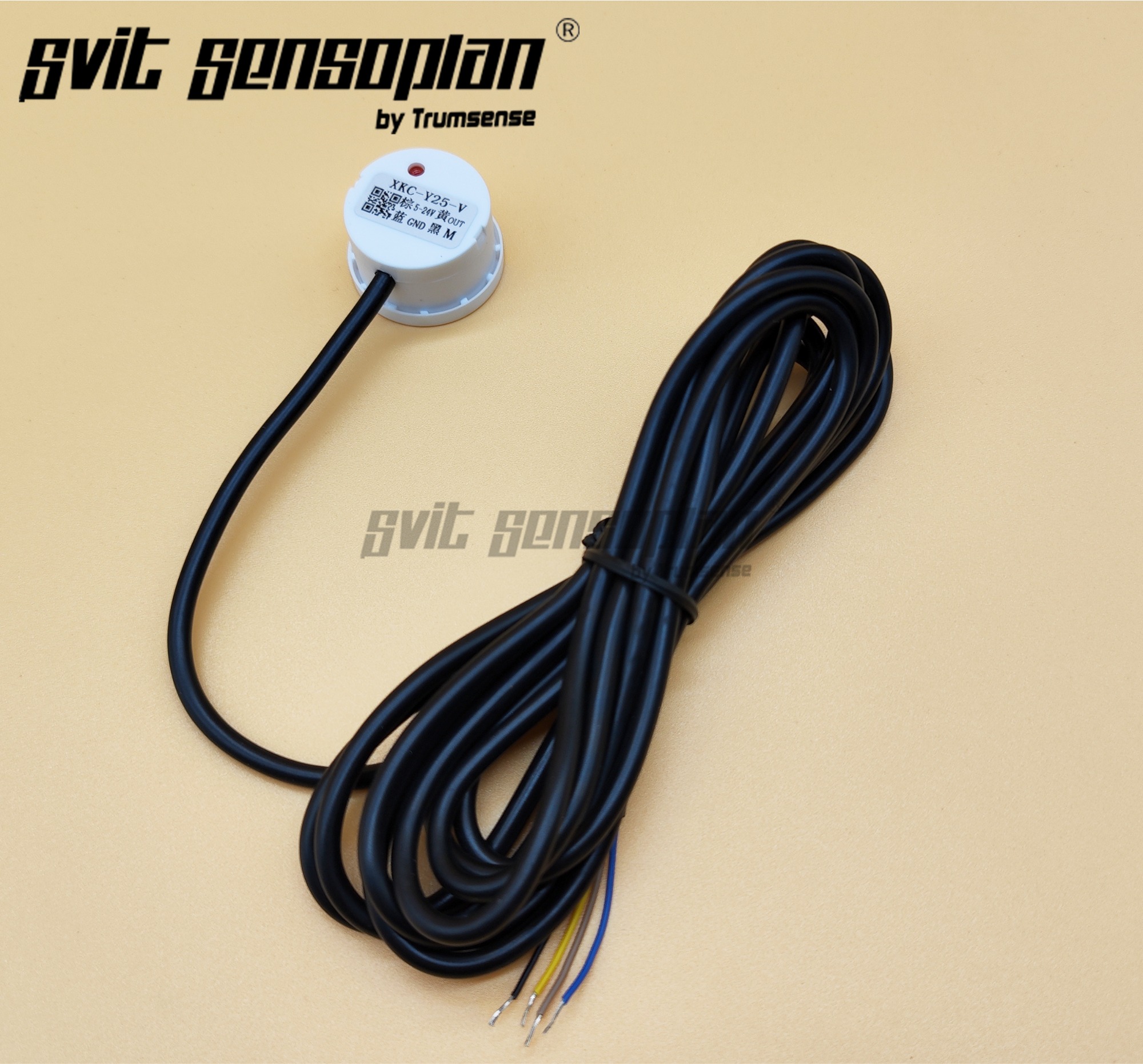

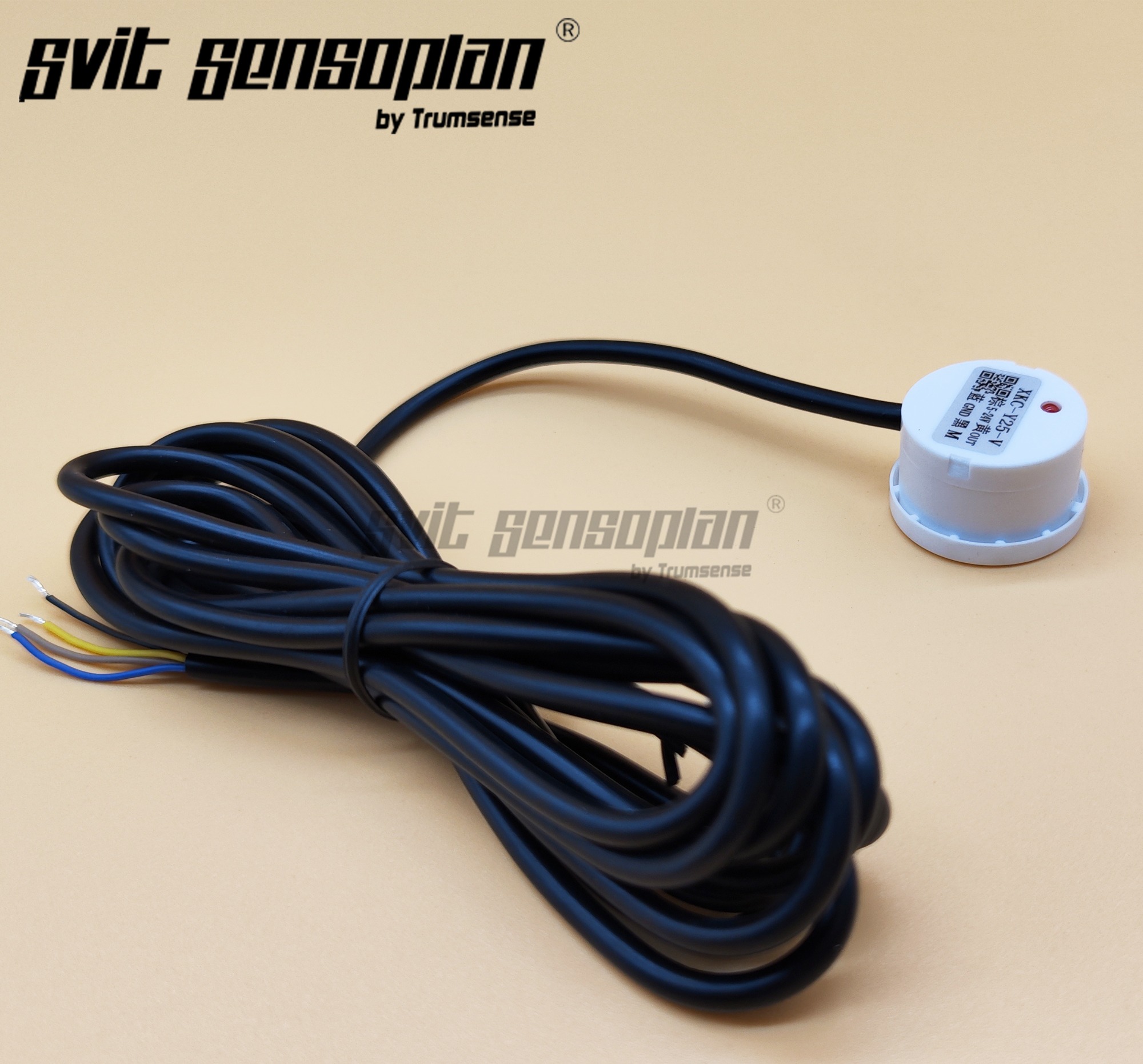

14. You Will Receive the XKC-Y25-V ( DC 5 to 24 V ) Contactless Liquid / Water Sensor or Liquid Detector or Fluid Monitor, totally Same as Below Detail Photos:
※Cable length: 2 meter
※ Terminal connector: not included ( naked wire for free wiring)
15. ※ The above sensor is used for Non-metallic material liquid container, if your liquid hose or container is metal ,please refer to the below product, which is specially designed for the metal material contaner or hose because its working principle is ultrasonic:
Ultrasonic Working Ultrasonic Liquid Level Detector For Metal Container Wall Used For Special Industry Contactless Level Sensor:
http://www.aliexpress.com/item/32948776110.htmlhttp://www.aliexpress.com/item/1005002071930161.html
We are the original factory, if the above parameters can not satisfy yourspecific needs, contact at any time, our technician team will offer youthe proposal within 24 hours.
