Trumsense WS08F3-M6-BW LED Light Mirror Touch Switch Steplessly Dimming Brightness With Anti Fog for KTV Bathroom Washroom Bar or Home Mirror Refirbishment

Item No.: 00536

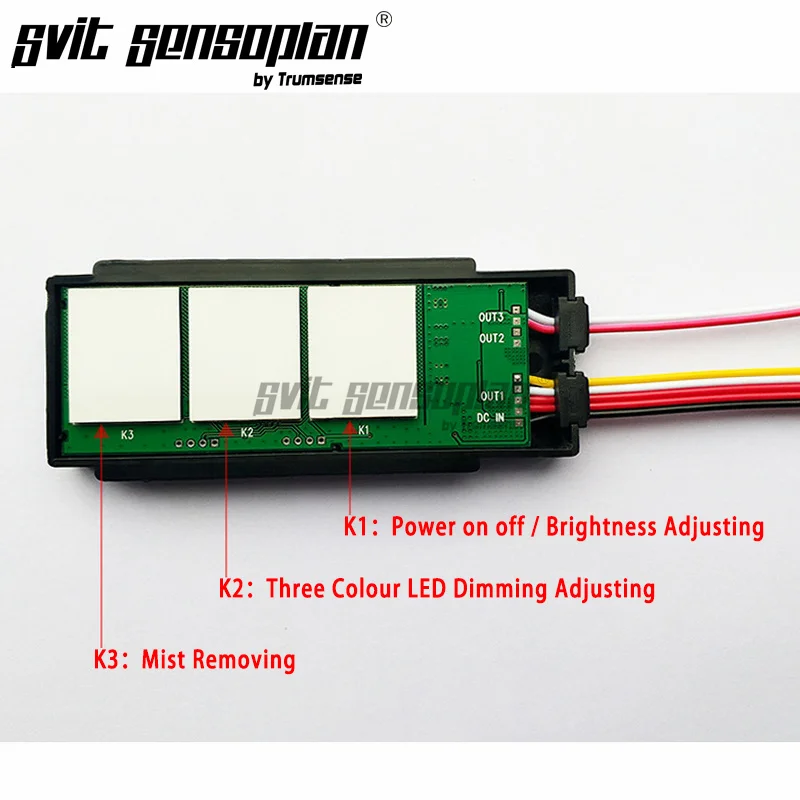

This product has built-in two sets of LED light switches and one set of anti-fog switches. K1 and K2 control the LED lights, and K3 controls the anti-fog.
Description Review
Description

Buying options explaination:

▶WS08F3-M6-BW:

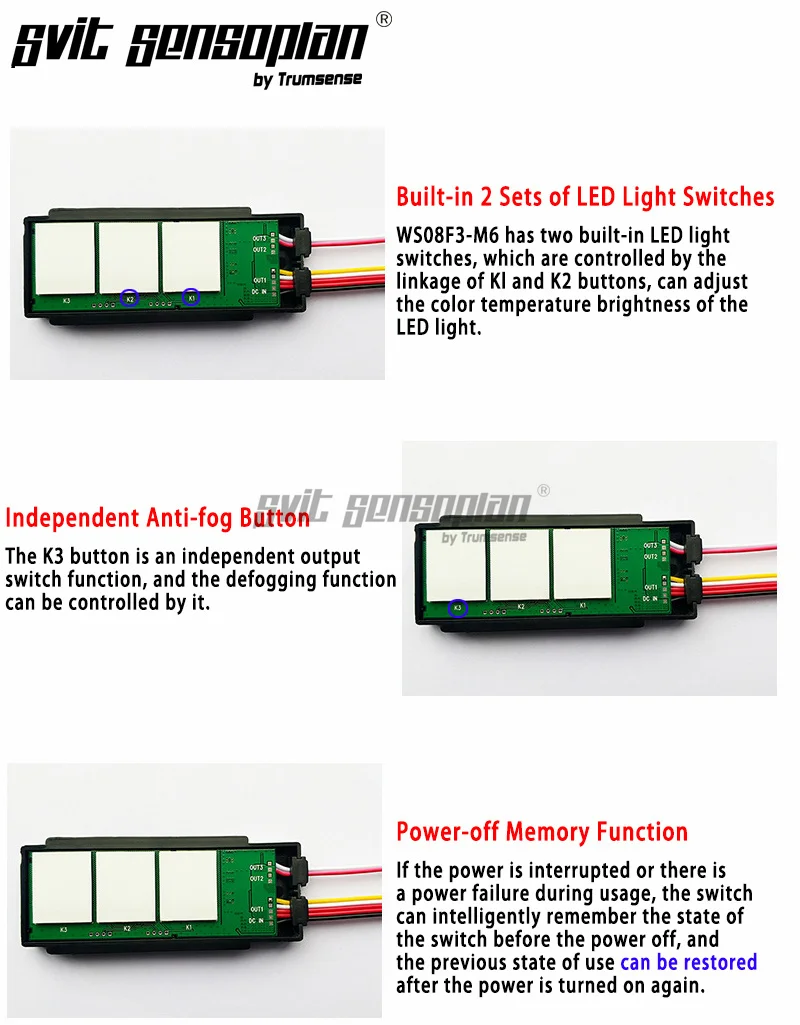

This product has built-in two sets of LED light switches and one set of anti-fog switches. K1 and K2 control the LED lights, and K3 controls the anti-fog.

●Powered on, the buttons K1 and K3 turn on with blue back ground light , and the back ground light of K2 is not on.

▷Short press K1, the back light of the K1 and K2 buttons turns white, and the LED light is turned on at the same time.

▷Short press K1 again to turn off the LED strip light, and the back light of the K1 button turns back to blue at the same time, and so on. Cycle like this.

●When the LED strip is on:

▷Long press K1 to adjust the brightness steplessly; short press K2 to adjust the color temperature in stages, and long press K2 to adjust the color temperature stepless.

▷Short press K3, its back light turns white, and the anti-fog function is turned on at the same time, then press K3 again to turn off the anti-fog, and the back light of the button turns back to blue at the same time.

●During the LED strip light off state:

▷press and hold the K1 or K3 button for 3 seconds to turn off the corresponding button back light, the switch enters the sleep state,

▷and then short press to wake up again, the button back light become blue, and the system enters the standby state.

●The switch supports the power-off memory function:

▷In the event of a power failure during use, the current brightness and color temperature can be remembered, and there is no need to adjust it again after re-energizing.

a​a
aa

★  Trumsense Factory Warehouse Directly Delivery

●   Model: WS08F3-M6-BW

●  Can Steplessly Adjust the Brightness of the LED Strip

●  Switch for on off of anti-fog film (WS08F3-M2A-BW)

● Used for LED Light Mirror of Bathroom,Washroom,Bedroom, Bar,Hotel,Beauty Salon,Coffee Shop,Sitting    Room,KTV,Homestay,Makeup Room... ... ... ... ... ...

1: Trumsense WS08F3-M6-BW LED Light Mirror Touch Switch Wholesales Price Reminding:

     We are the direct factory, our mainly users are from the smart mirror manufacturer worldwide, if you has bulk quantity

     purchasing plan,please kindly contact us for wholesales offer.

2: Important Before You Place An Order of Touch Switch Trumsense WS08F3-M6-BW LED Light Mirror Touch Switch In This Link:

      a: We only produce and sell touch switch sensor,do not produce and sell mirror.

      b: We will only send you the touch switch sensor, do not send mirror.

      c: You will only receive the touch switch, you will not receive any mirror.

      d: All the photos with mirror you can see in main photos, in description, in advertisement , in videos,or any other

          possible places,only with the purpose to show the final performance or functions, after you install our mirror touch

          switch sensor , on your old/existing mirrors.

      e: The most important job is: remove the mercury, to make it transparent, to match our touch switch's touch key, please

          contact us for the video, if you has a plan to buy or already receive the goods, because we can not upload large file

          here.

      f: We are the factory, we will make the touch panel work perfectly with our instruction, after your parcel was received.

      g: If your quantity is very big, please contact us and we will offer you the best prices or maybe exclusive prices in your

          province or your country.

3: Trumsense WS08F3-M6-BW LED Light Mirror Touch Switch Working Principle:

4: Basic Function of Trumsense WS08F3-M6-BW LED Light Mirror Touch Switch:

●Powered on, the buttons K1 and K3 turn on with blue back ground light , and the back ground light of K2 is not on.

▷Short press K1, the back light of the K1 and K2 buttons turns white, and the LED light is turned on at the same time.

▷Short press K1 again to turn off the LED strip light, and the back light of the K1 button turns back to blue at the same time, and so on. Cycle like this.

●When the LED strip is on:

▷Long press K1 to adjust the brightness steplessly; short press K2 to adjust the color temperature in stages, and long press K2 to adjust the color temperature stepless.

▷Short press K3, its back light turns white, and the anti-fog function is turned on at the same time, then press K3 again to turn off the anti-fog, and the back light of the button turns back to blue at the same time.

●During the LED strip light off state:

▷press and hold the K1 or K3 button for 3 seconds to turn off the corresponding button back light, the switch enters the sleep state, ▷and then short press to wake up again, the button back light become blue, and the system enters the standby state.

●The switch supports the power-off memory function:

▷In the event of a power failure during use, the current brightness and color temperature can be remembered, and there is no need to adjust it again after re-energizing.

5: Parameters of Trumsense WS08F3-M6-BW LED Light Mirror Touch Switch :

Switch name: mirror touch sensor switch

Switch model: WS08F3-M6-BW

Working voltage: DC12

Dimming method: PWM stepless

Working current 35mA (Max)

Brightness adjustment range:

                         Stepless: 5%-100%

                         Graded dimming : cold - neutral - arm

Switching current: 5A (Max) total current

Adjust color temperature: yes, it can control 2 colour LED strip

Touch method: capacitive touch sensing

Switch channel: 3 channels

Button backlight: blue and white

Power-off Memory: yes

Support Mirror thickness: ≤5mm

Switch size: 116*46*12mm

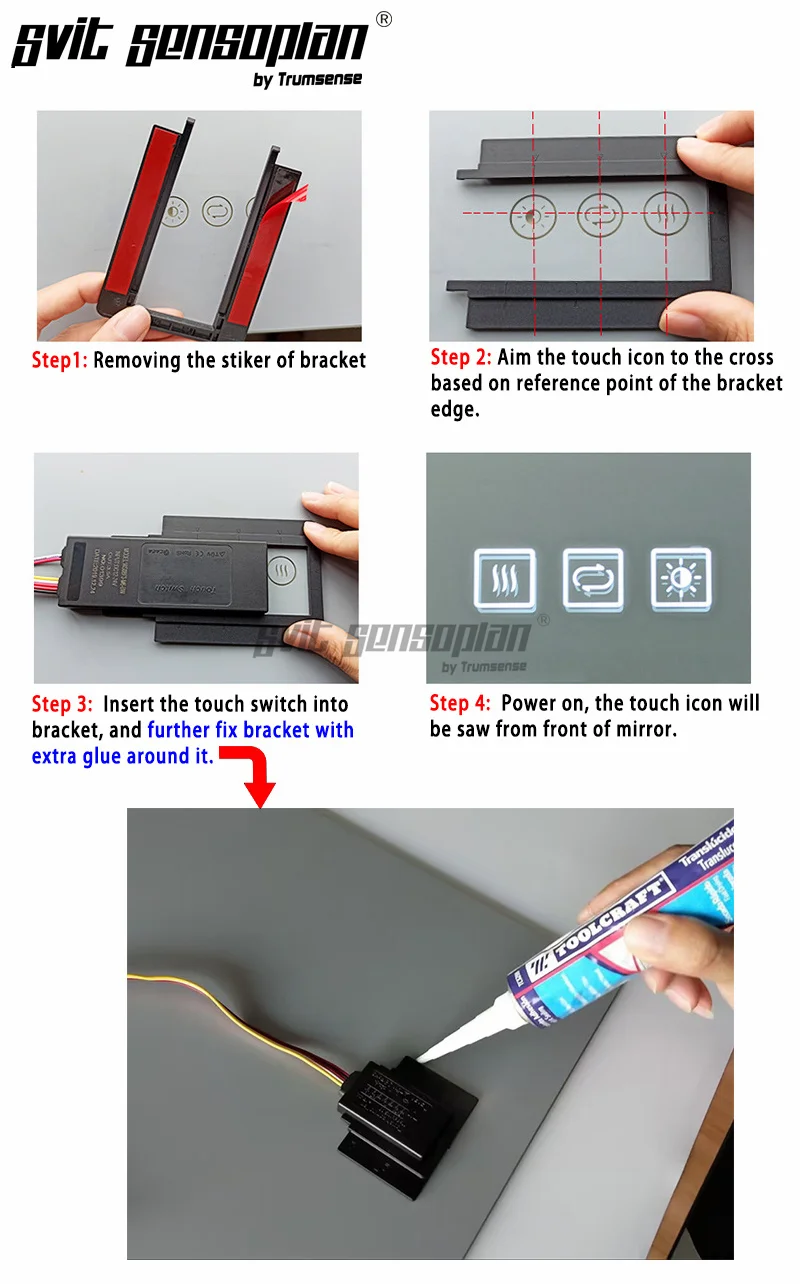

6: Installation of Trumsense WS08F3-M6-BW LED Light Mirror Touch Switch :

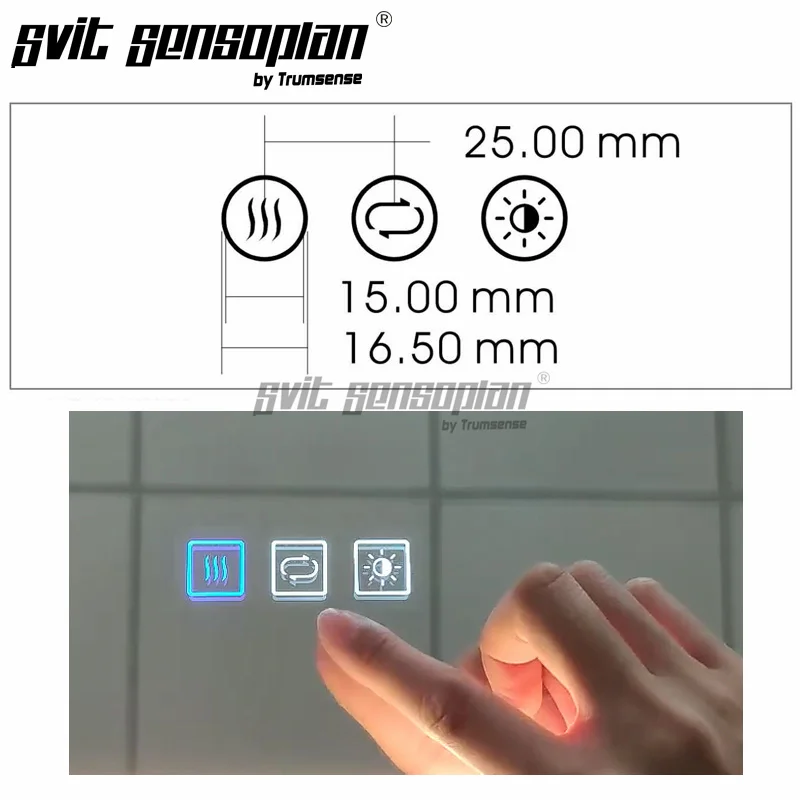

     a: Before the installation ,you need to remove the mercury of your mirror with the laser machine and we will send you

        the DWG format file for this laser engraving job, after you receive our touch switch, please kindly do the installation as

        below instruction:

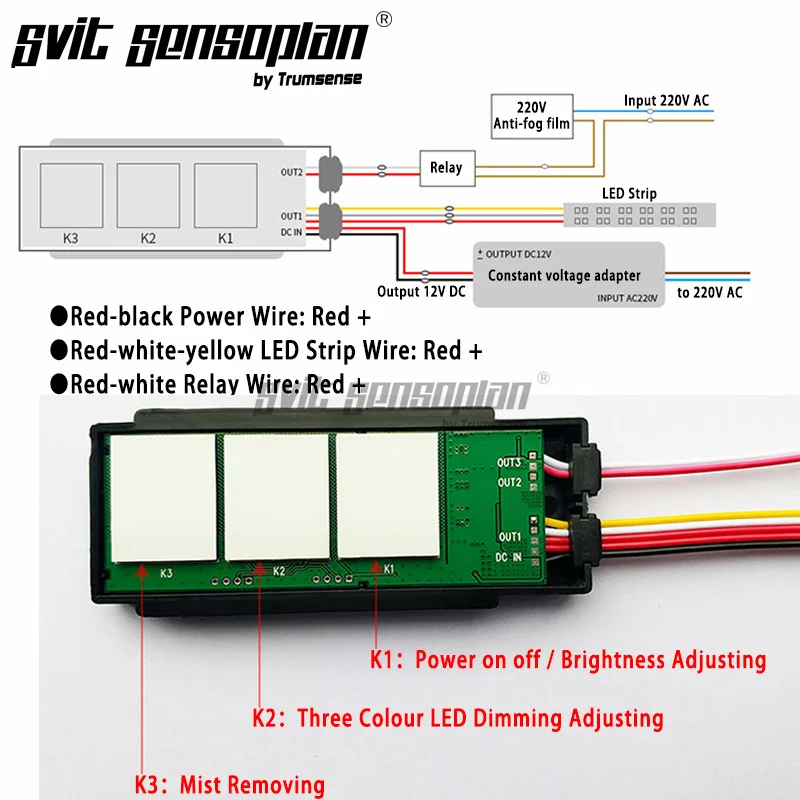

     b: Wiring Diagram of WS08F3-M6-BW:

​ ​

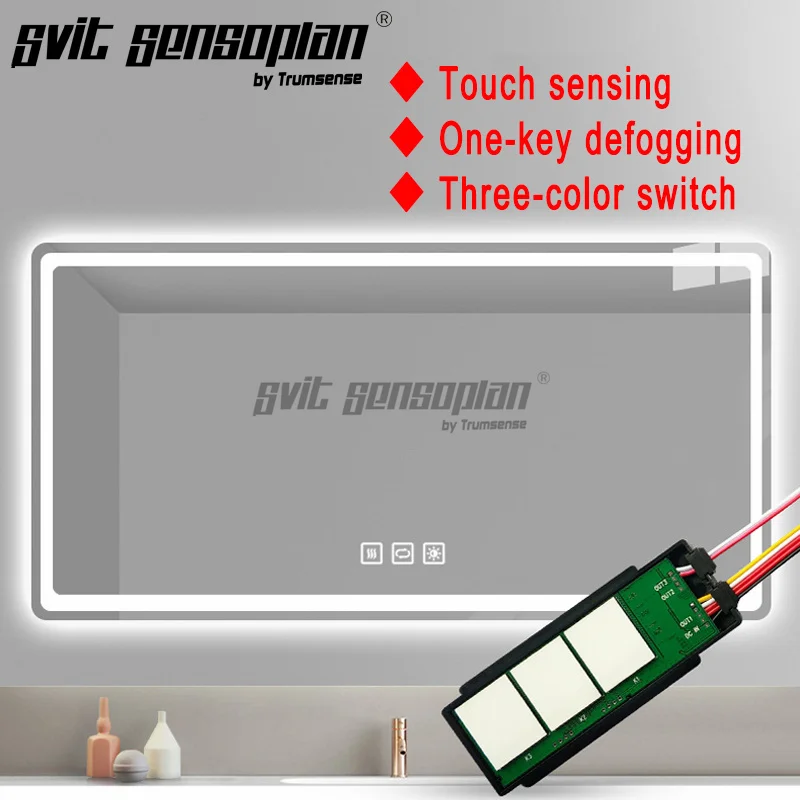

7: Application examples of the Trumsense WS08F3-M6-BW LED Light Mirror Touch Switch

are Used In Below Fields Widely Where There Is A Led Mirror :

like: Bathroom,Washroom,Bedroom, Bar,Hotel,Beauty Salon,Coffee Shop,Sitting Room,KTV,Homestay,Makeup Room...

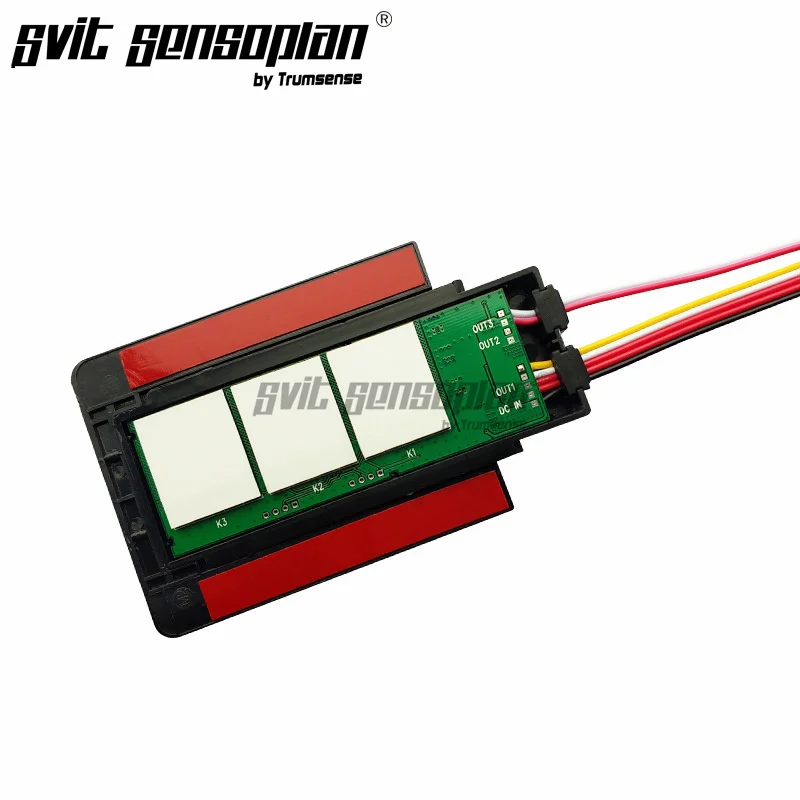

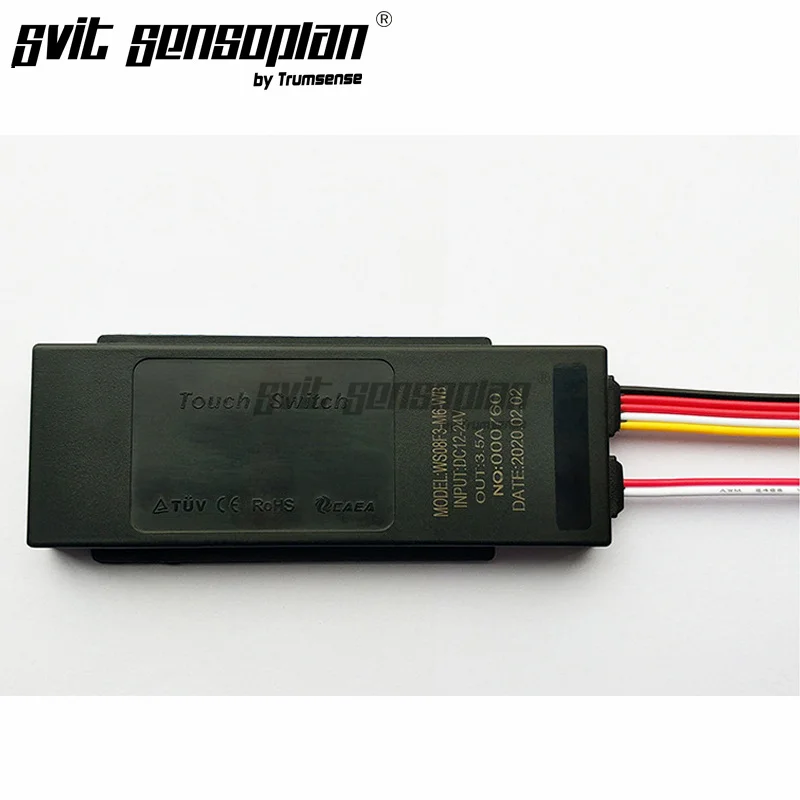

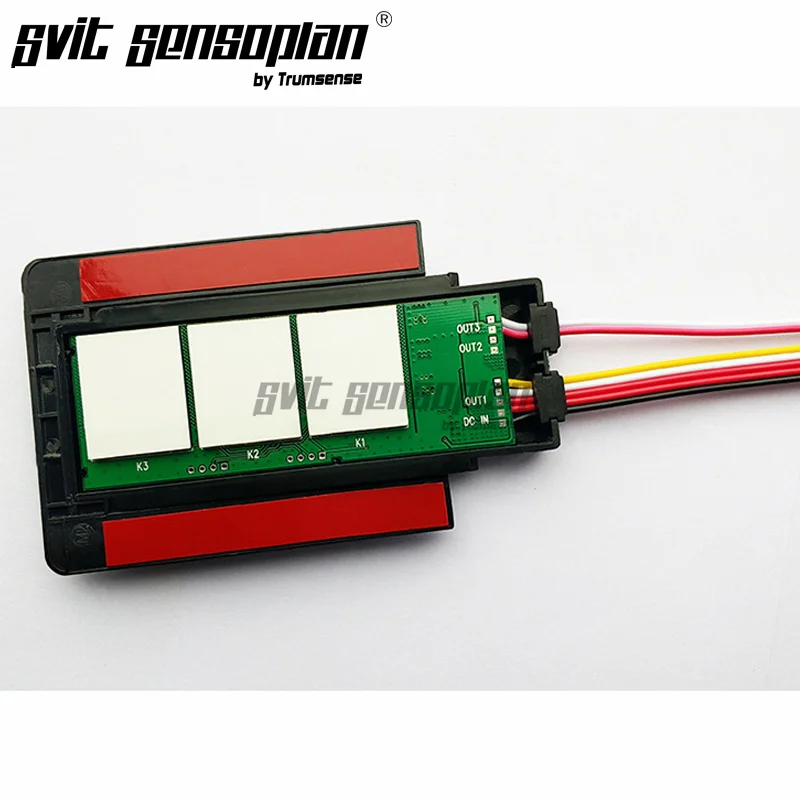

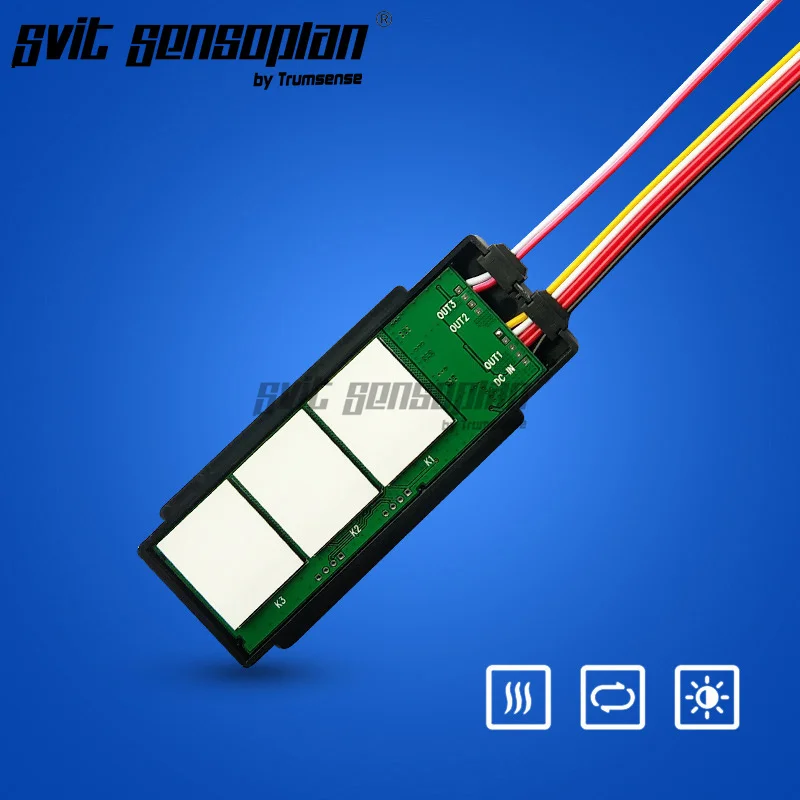

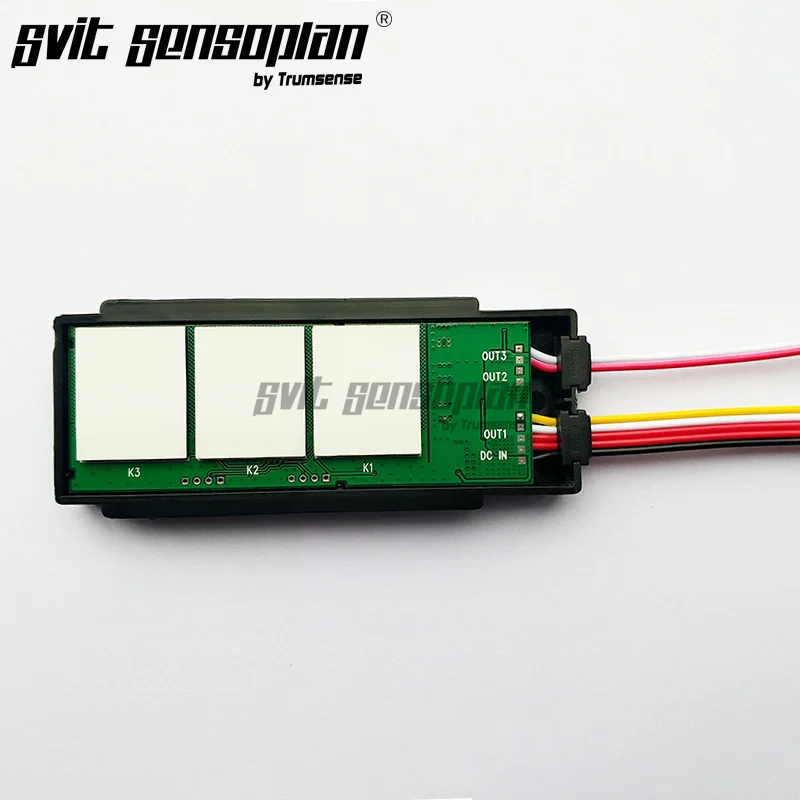

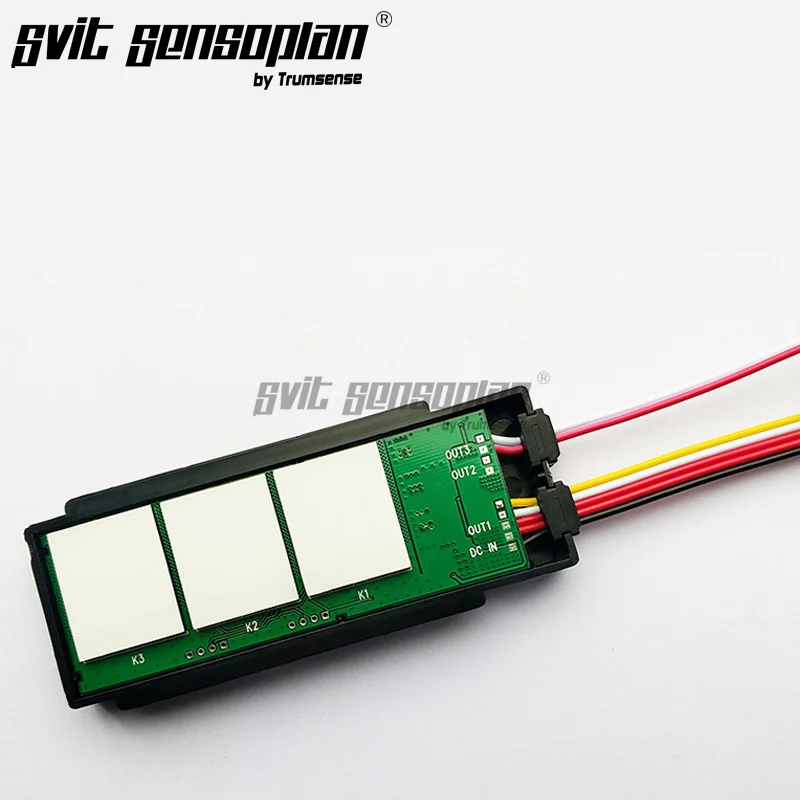

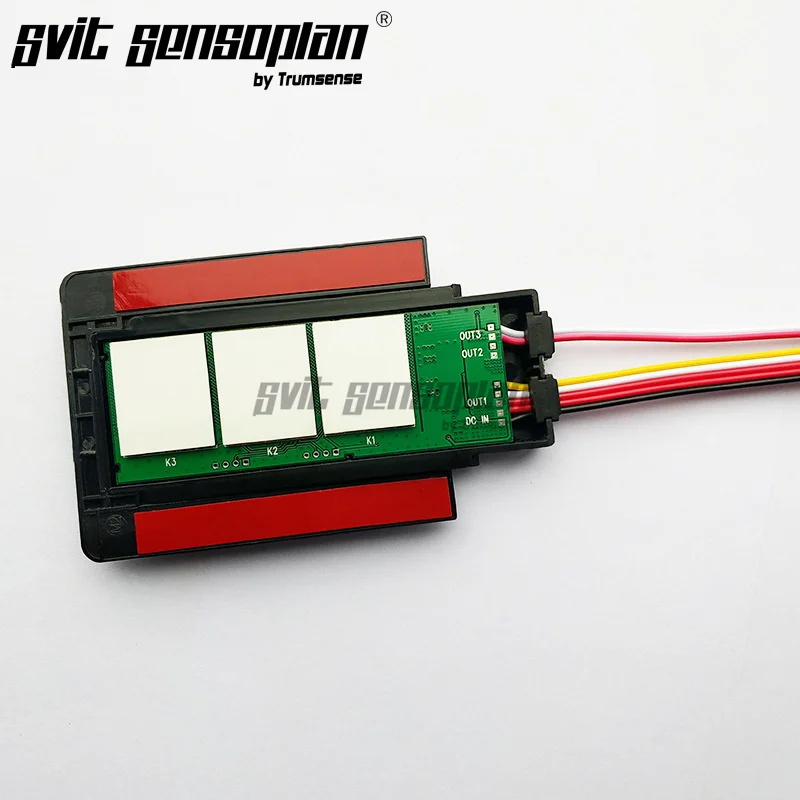

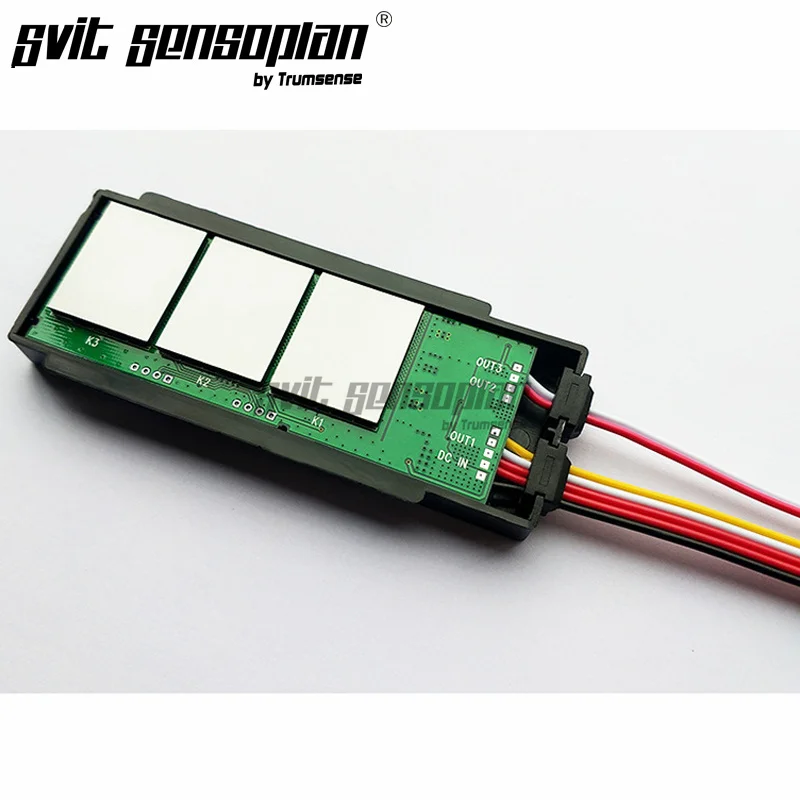

8: You Will Receive The Trumsense WS08F3-M6-BW LED Light Mirror Touch Switch , Totally Same As the Detail Photos Showed Below:

9:  Below Are The Products That is Compatible With Trumsense WS08F3-M6-BW LED Light Mirror Touch Switch , and they are all our own designed products:

      a: Power Adapter: D14 http://www.aliexpress.com/item/4001143977296.html采到旺销王

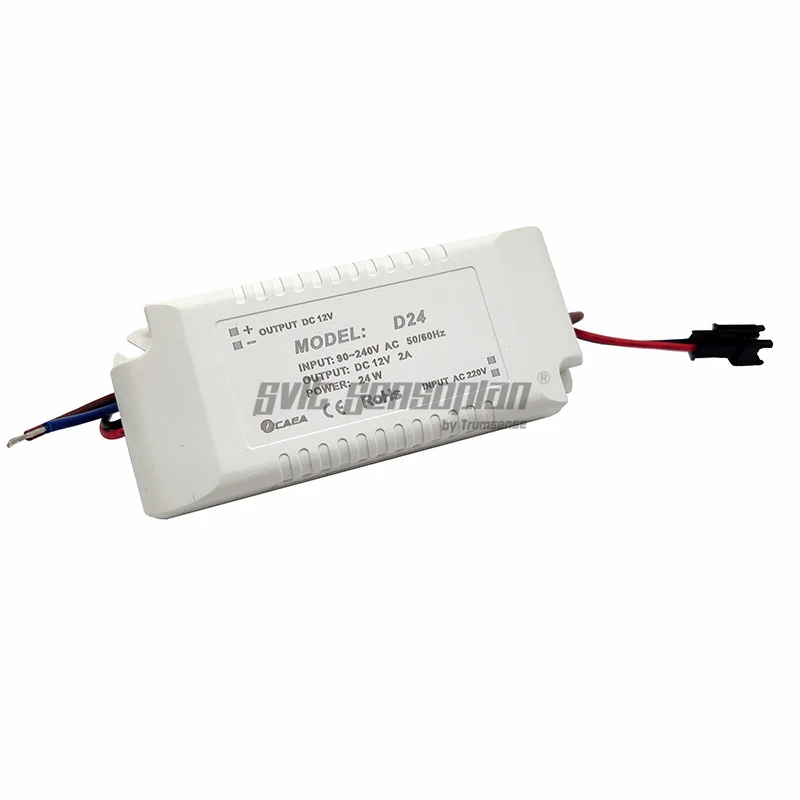

      b: Power Adapter: D24 http://www.aliexpress.com/item/4001148019275.html采到旺销王

      c: Power Amplifier: http://www.aliexpress.com/item/4001189815565.html采到旺销王

      d: Big Power Supply Adapter: http://www.aliexpress.com/item/4001226295374.html采到旺销王

10: Customized Products Available:

       In past years, plenty of smart mirror factory purchased from us and many of the items was customzied, if the above

       function can not meet your needs, please conact us to discuss, our enginner will share our suggestion with you.

K3013BA,K3013CA,WS08CA,WS08CB,WS08D1,WS08D2,WS08F2,WS08F3,WS08,EX-01,FD-01,FD-04,

K3013,K3014A,k3014AF,K3030B,k3015CA,K3015CAL,K3015CAH,K3015CBF,k3015CA-USB,K3015CBH,WS08CB-S5A-BW,WS08CB-S1-BW,WS08CB-S2-BW,WS08CB-S4-BW,WS08CA-A0-B,WS08CA-A0-W,WS08CA-A2-BW,WS08CA-A1-B,WS08CA-A1-W,WS08D1-S3A-BW,WS08D1-S4-BW,WS08D1-S5-BW,WS08D1-S5A-BW,K3013BA-S1-BW,K3013BA-S1-RB,K3013BA-S1-B,K3013CA-A0-B,K3013CA-A2-BW,K3013CA-A1-B,K3013CA-A3-BW,K3013CA-A1-W,K3013CA-A0-W,K3100C-WB,K3102A-S2-WB,K3102A-S5A-WB,WS08F2-S2-BW,WS08F2-S3-BW,WS08F2-S3A-BW,WS08F2-S5-BW,WS08F2-S5A-BW,WS08D2-S1-BW,WS08D2-S2-BW,WS08F3-M2-BW,WS08F3-M2A-BW,
