Buying options explaination:
▶WS08F3-M2-BW:
K1: is the light control button: short press can switch the LED light, and the key backlight displays different colors according to the switch state; long press in the light off state will make the function enter the sleep state, and the key backlight is also turned off at the same time; Short press once to return to normal standby.
K2: short press to control the opening or closing of anti-mist film.Press and hold in the normal working state to make the function enter the sleep state, the button backlight is turned off; short press in the sleep state to wake up again and return to the normal standby state.
K3: short press to control the opening or closing of bluetooth. Press and hold in the normal working state to make the function enter the sleep state, the button backlight is turned off; short press in the sleep state to wake up again and return to the normal standby state.
▶WS08F3-M2A-BW:
K1: is the light control button: short press can switch the LED light, and the key backlight displays different colors according to the switch state; long press in the light off state will make the function enter the sleep state, and the key backlight is also turned off at the same time; Short press once to return to normal standby.
The light control key of WS08F3-M2A-BW has a brightness adjustment function. When the LED light is on, long press the K1 control key to adjust the brightnessof the LED light.
K2: short press to control the opening or closing of anti-mist film.Press and hold in the normal working state to make the function enter the sleep state, the button backlight is turned off; short press in the sleep state to wake up again and return to the normal standby state.
K3: short press to control the opening or closing of bluetooth. Press and hold in the normal working state to make the function enter the sleep state, the button backlight is turned off; short press in the sleep state to wake up again and return to the normal standby state.
★ Trumsense Factory Warehouse Directly Delivery
● Model: WS08F3-M2-BW WS08F3-M2A-BW
● Can Steplessly Adjust the Brightness of the LED Strip (WS08F3-M2A-BW)
● Switch for on off of bluetooth (WS08F3-M2A-BW)
● Switch for on off of anti-fog film (WS08F3-M2A-BW)
● Used for LED Light Mirror of Bathroom,Washroom,Bedroom, Bar,Hotel,Beauty Salon,Coffee Shop,Sitting Room,KTV,Homestay,Makeup Room... ... ... ... ... ...
1: WS08F3-M2-BW / WS08F3-M2A-BW Wholesales Price Reminding:
We are the direct factory, our mainly users are from the smart mirror manufacturer worldwide, if you has bulk quantity purchasing plan,please kindly contact us for wholesales offer.
2: Important Before You Place An Order of Touch Switch WS08F3-M2-BW / WS08F3-M2A-BW In This Link:
a: We only produce and sell touch switch sensor,do not produce and sell mirror.
b: We will only send you the touch switch sensor, do not send mirror.
c: You will only receive the touch switch, you will not receive any mirror.
d: All the photos with mirror you can see in main photos, in description, in advertisement , in videos,or any other possible places,only with the purpose to show the final switch sensor , on your old/existing mirrors.
e: The most important job is: remove the mercury, to make it transparent, to match our touch switch's touch key, please contact us for the video, if you has a plan to buy or already receive the goods, because we can not upload large file here.
f: We are the factory, we will make the touch panel work perfectly with our instruction, after your parcel was received.
g: If your quantity is very big, please contact us and we will offer you the best prices or maybe exclusive prices in your province or your country.
3: Touch Switch WS08F3-M2-BW / WS08F3-M2A-BW Working Principle:
4: Basic Function of Touch Switch WS08D2-S2-BW:
▶WS08F3-M2-BW:
K1: is the light control button: short press can switch the LED light, and the key backlight displays different colors according to the switch state; long press in the light off state will make the function enter the sleep state, and the key backlight is also turned off at the same time; Short press once to return to normal standby.
K2: short press to control the opening or closing of anti-mist film.Press and hold in the normal working state to make the function enter the sleep state, the button backlight is turned off; short press in the sleep state to wake up again and return to the normal standby state.
K3: short press to control the opening or closing of bluetooth. Press and hold in the normal working state to make the function enter the sleep state, the button backlight is turned off; short press in the sleep state to wake up again and return to the normal standby state.
▶WS08F3-M2A-BW:
K1: is the light control button: short press can switch the LED light, and the key backlight displays different colors according to the switch state; long press in the light off state will make the function enter the sleep state, and the key backlight is also turned off at the same time; Short press once to return to normal standby.
The light control key of WS08F3-M2A-BW has a brightness adjustment function. When the LED light is on, long press the K1 control key to adjust the brightnessof the LED light.
K2: short press to control the opening or closing of anti-mist film.Press and hold in the normal working state to make the function enter the sleep state, the button backlight is turned off; short press in the sleep state to wake up again and return to the normal standby state.
K3: short press to control the opening or closing of bluetooth. Press and hold in the normal working state to make the function enter the sleep state, the button backlight is turned off; short press in the sleep state to wake up again and return to the normal standby state.
5: Parameters of Touch Switch WS08F3-M2-BW / WS08F3-M2A-BW :
Switch name: mirror touch sensor switch
Switch model: WS08F3-M2/M2A (BW)
Working voltage: DC12-24V
Dimming method: PWM stepless
Working current 35mA (Max)
Brightness adjustment range: Stepless: 5%-100% Grading: 4
Switching current: 5A (Max) total current
Adjust color temperature: none
Touch method: capacitive touch sensing
Switch channel: 3 channels
Button backlight: blue and white
Power-off Memory: none
Support Mirror thickness: ≤5mm

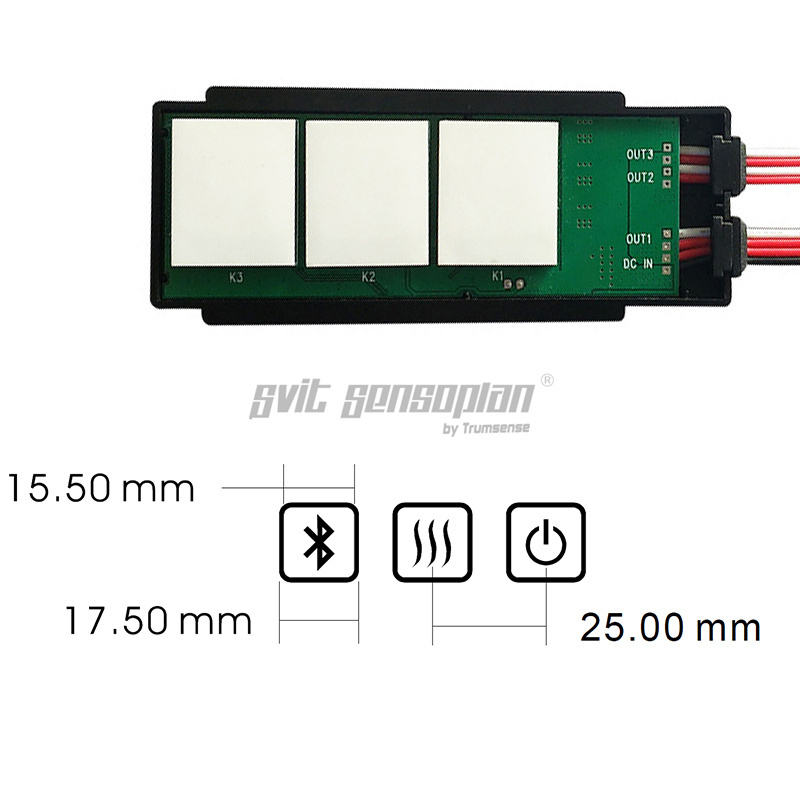

Switch size: 115*46*12mm

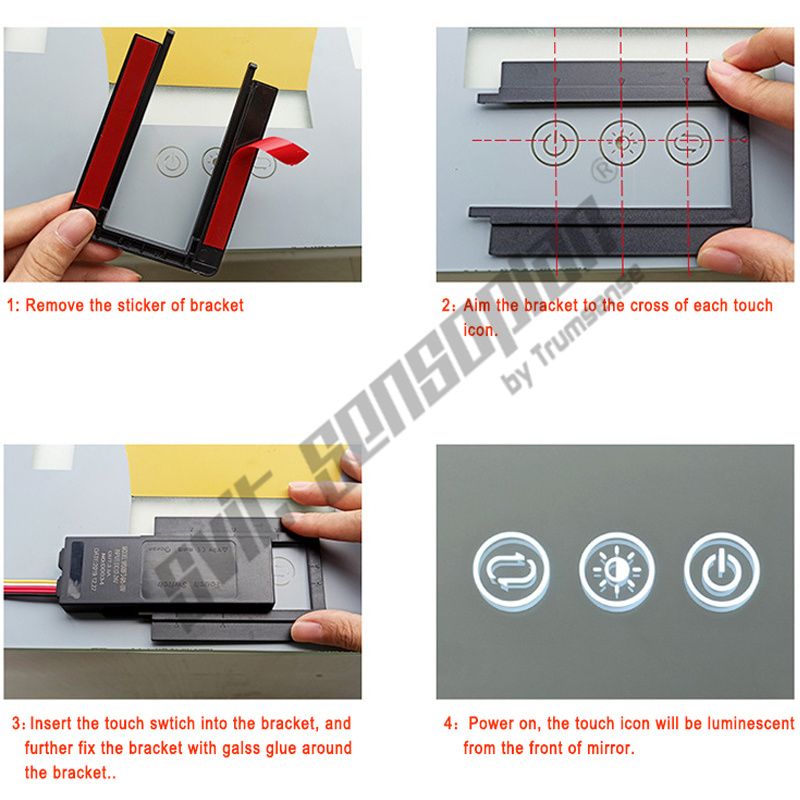

6: Installation of Touch Switch WS08F3-M2-BW / WS08F3-M2A-BW :
a: Before the installation ,you need to remove the mercury of your mirror with the laser machine and we will send you the DWG format file for this laser engraving job, after you receive our touch switch, please kindly do the installation as below instruction:

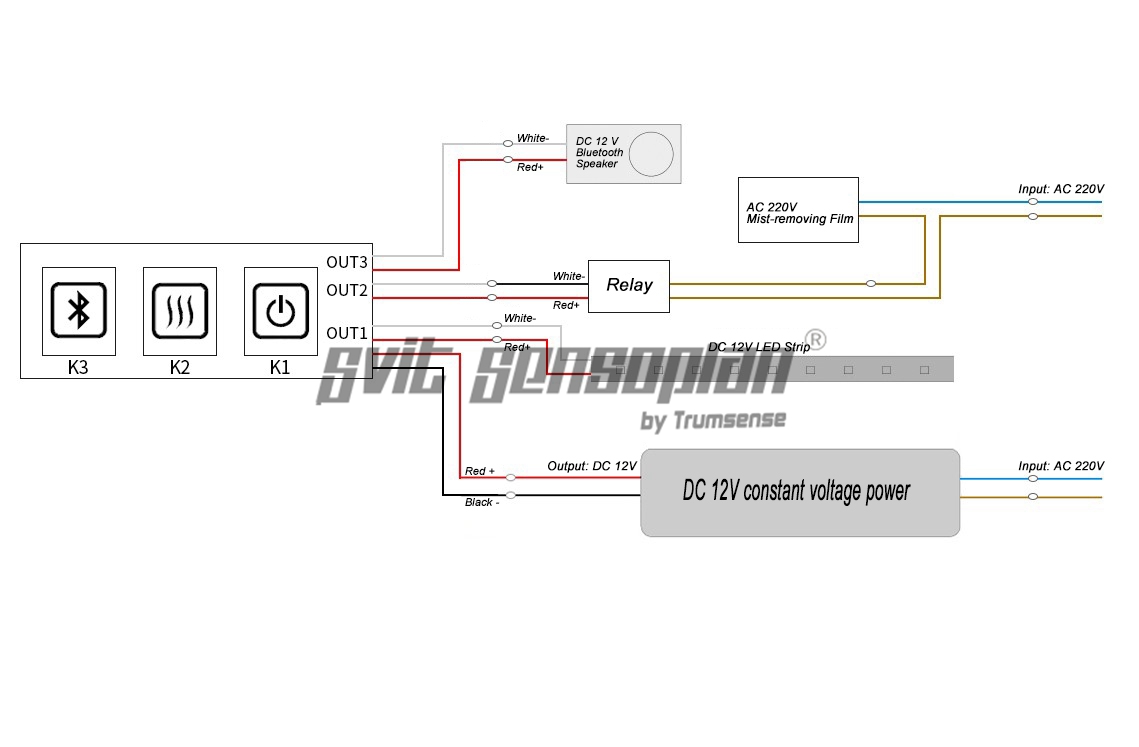

b: Wiring Diagram of WS08F3-M2-BW / WS08F3-M2A-BW:

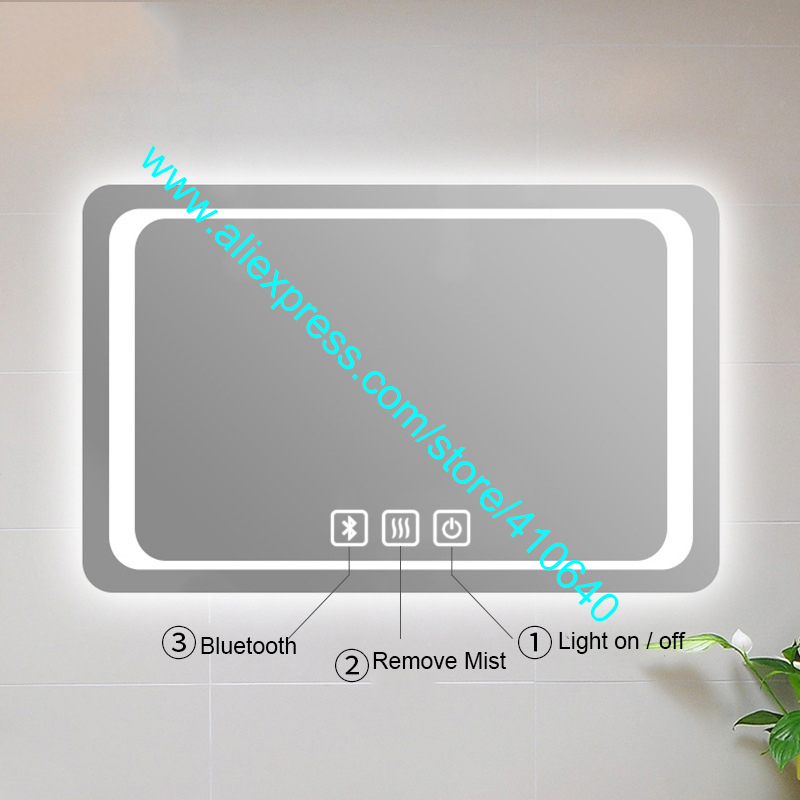

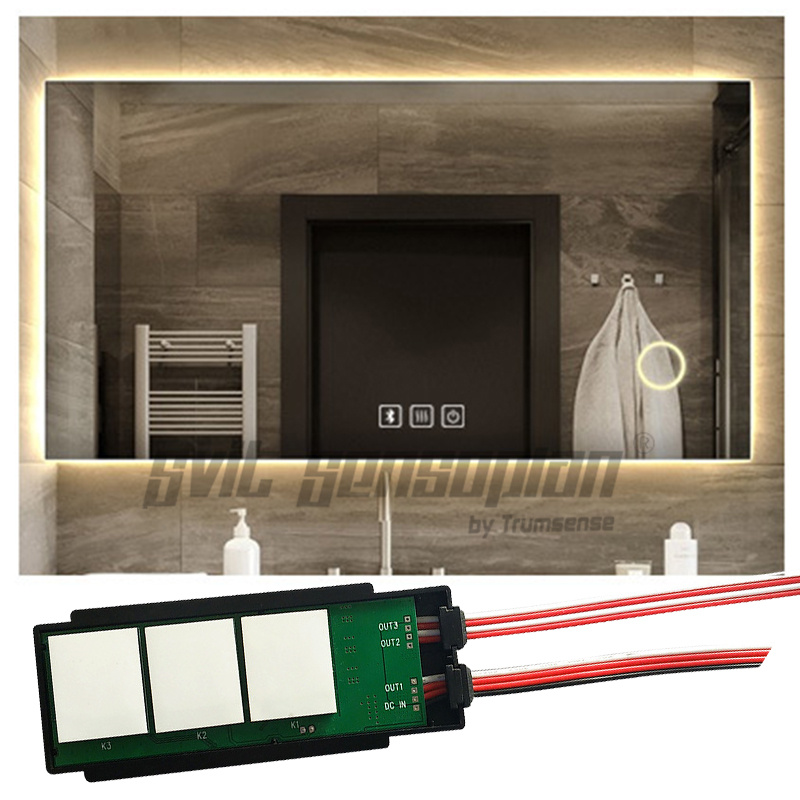

7: Applications of the WS08F3-M2-BW / WS08F3-M2A-BW are Used In Below Fields Widely Where There Is A Led Mirror :
like: Bathroom,Washroom,Bedroom, Bar,Hotel,Beauty Salon,Coffee Shop,Sitting Room,KTV,Homestay,Makeup Room...

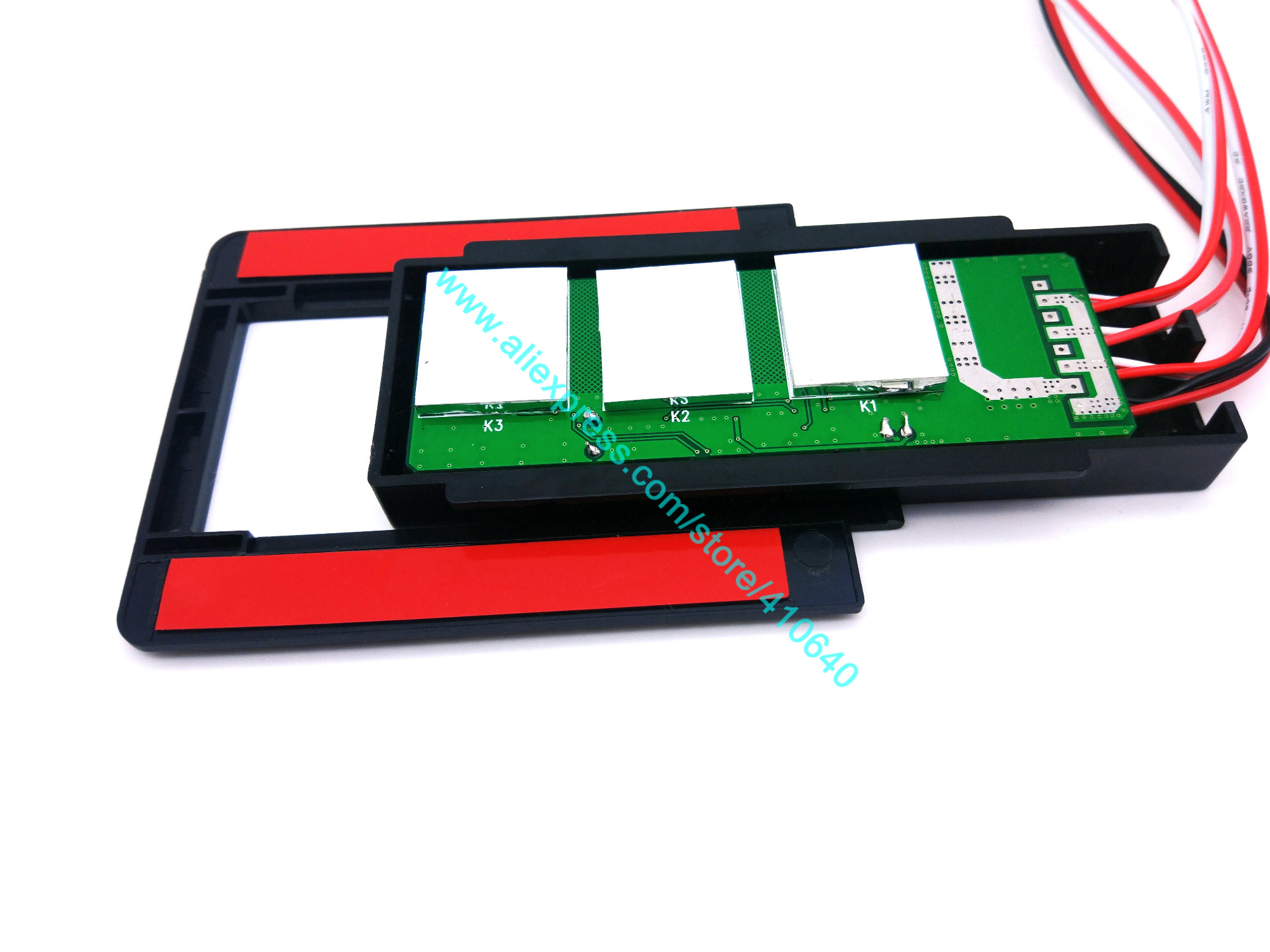

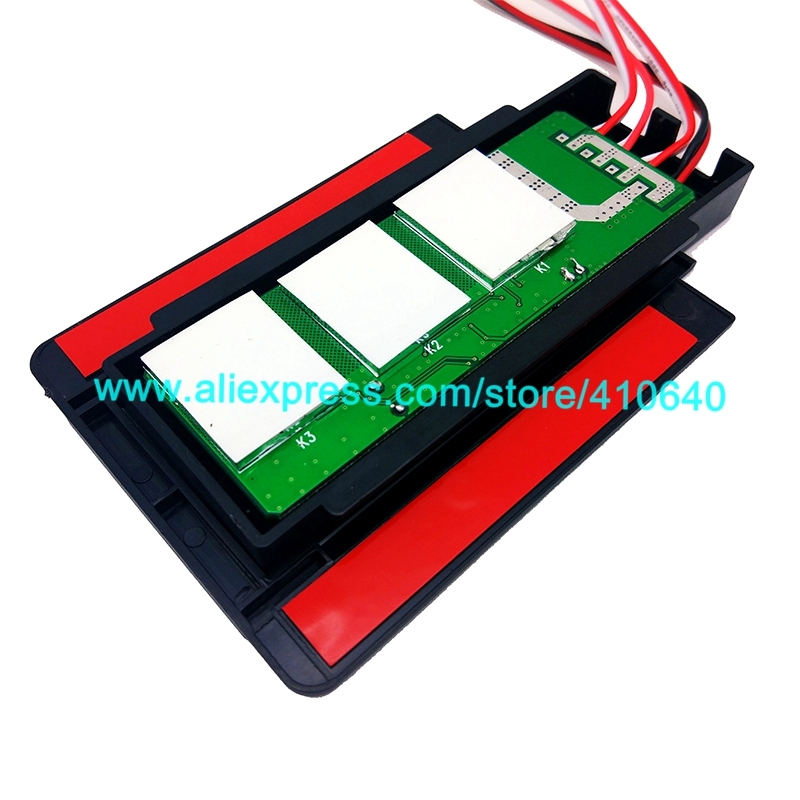

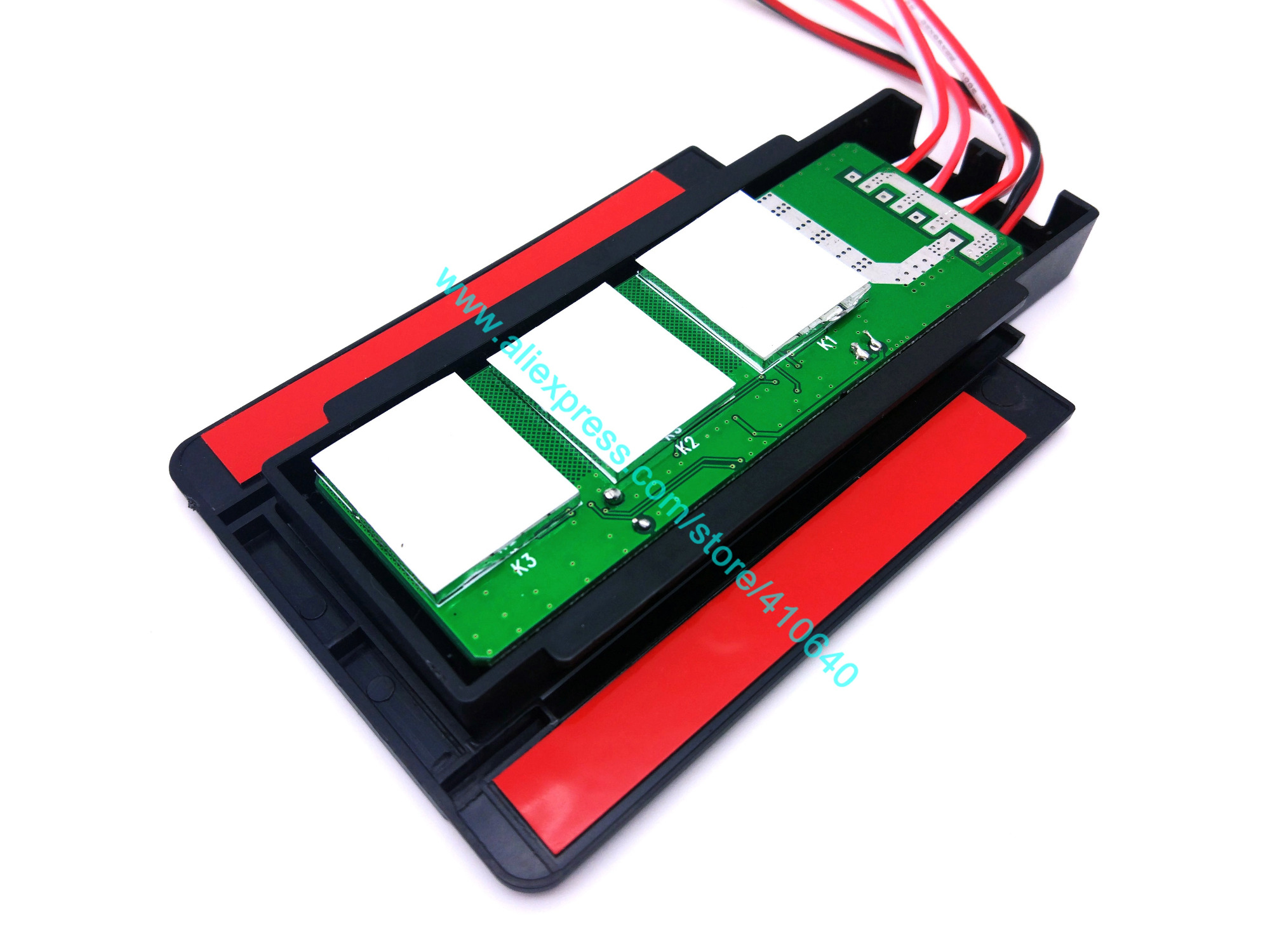

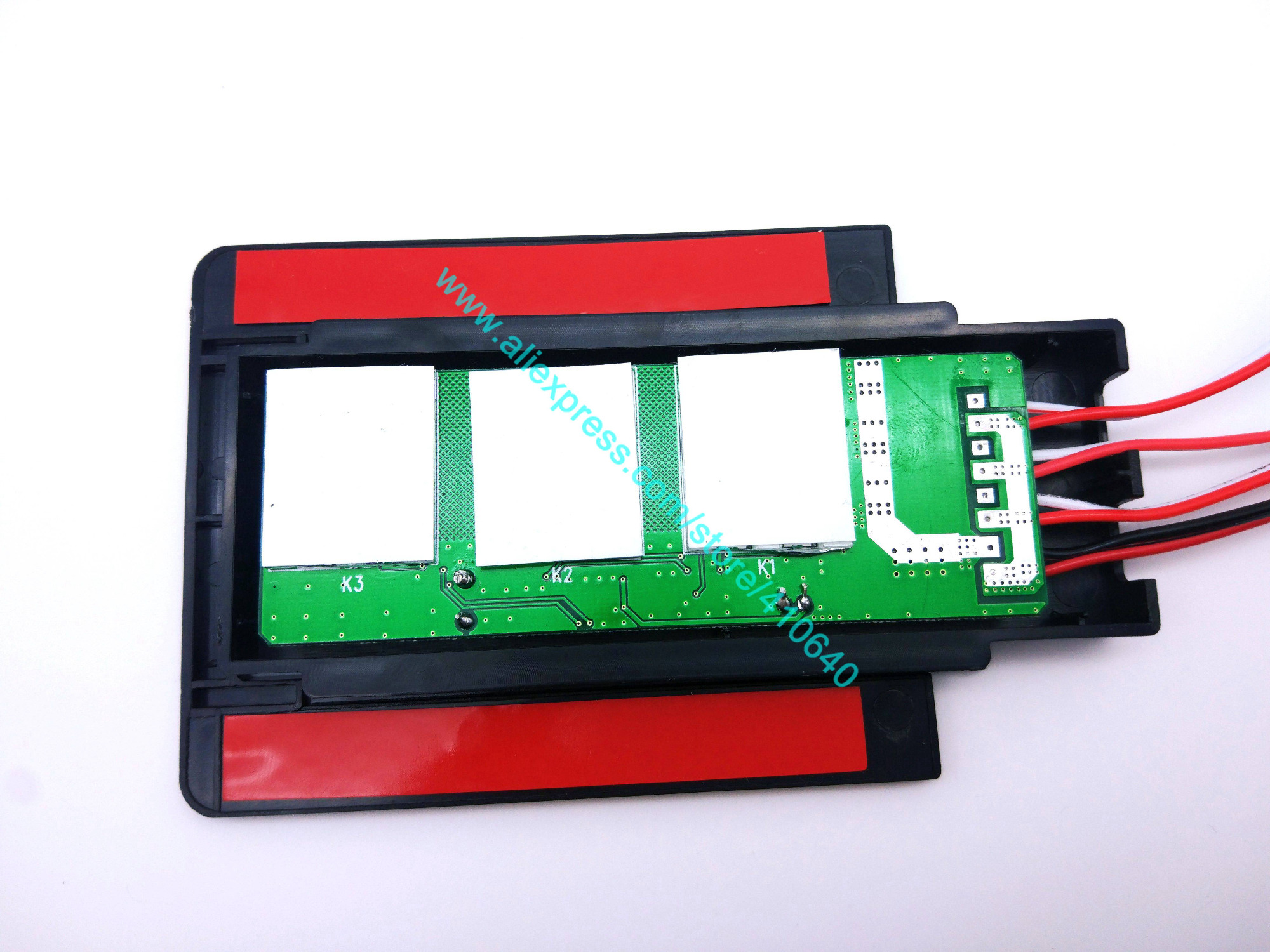

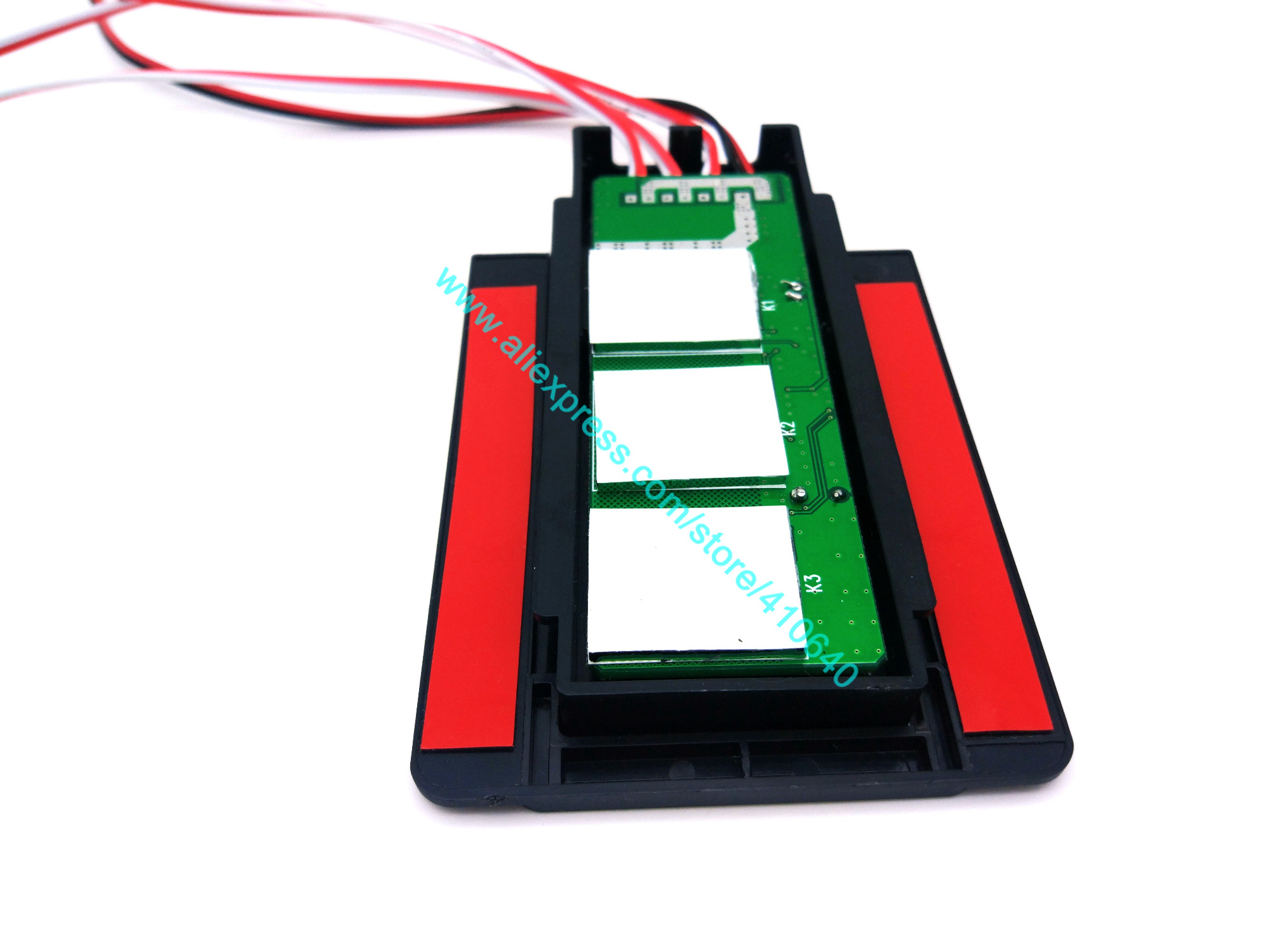

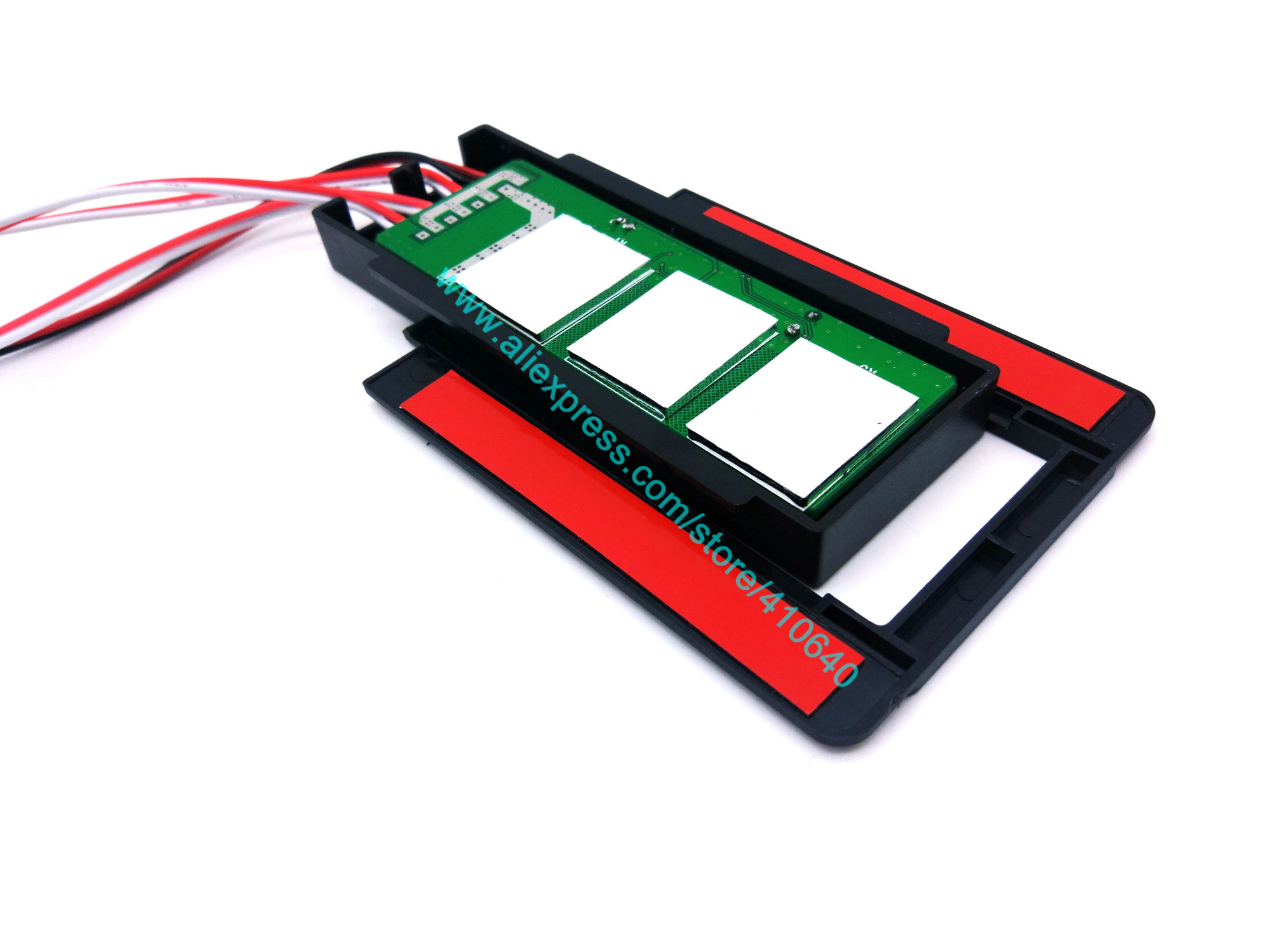

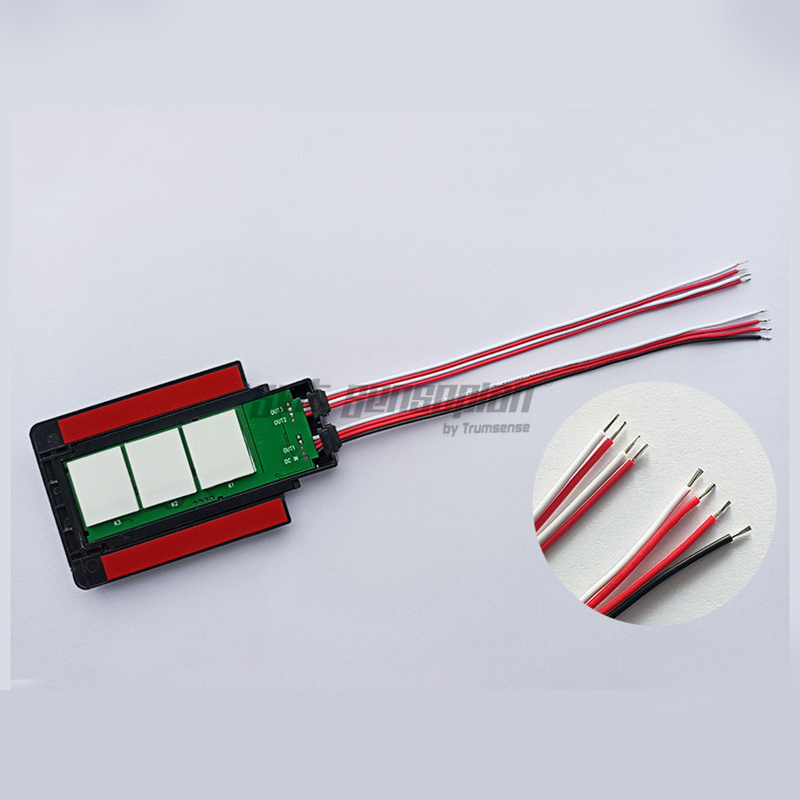

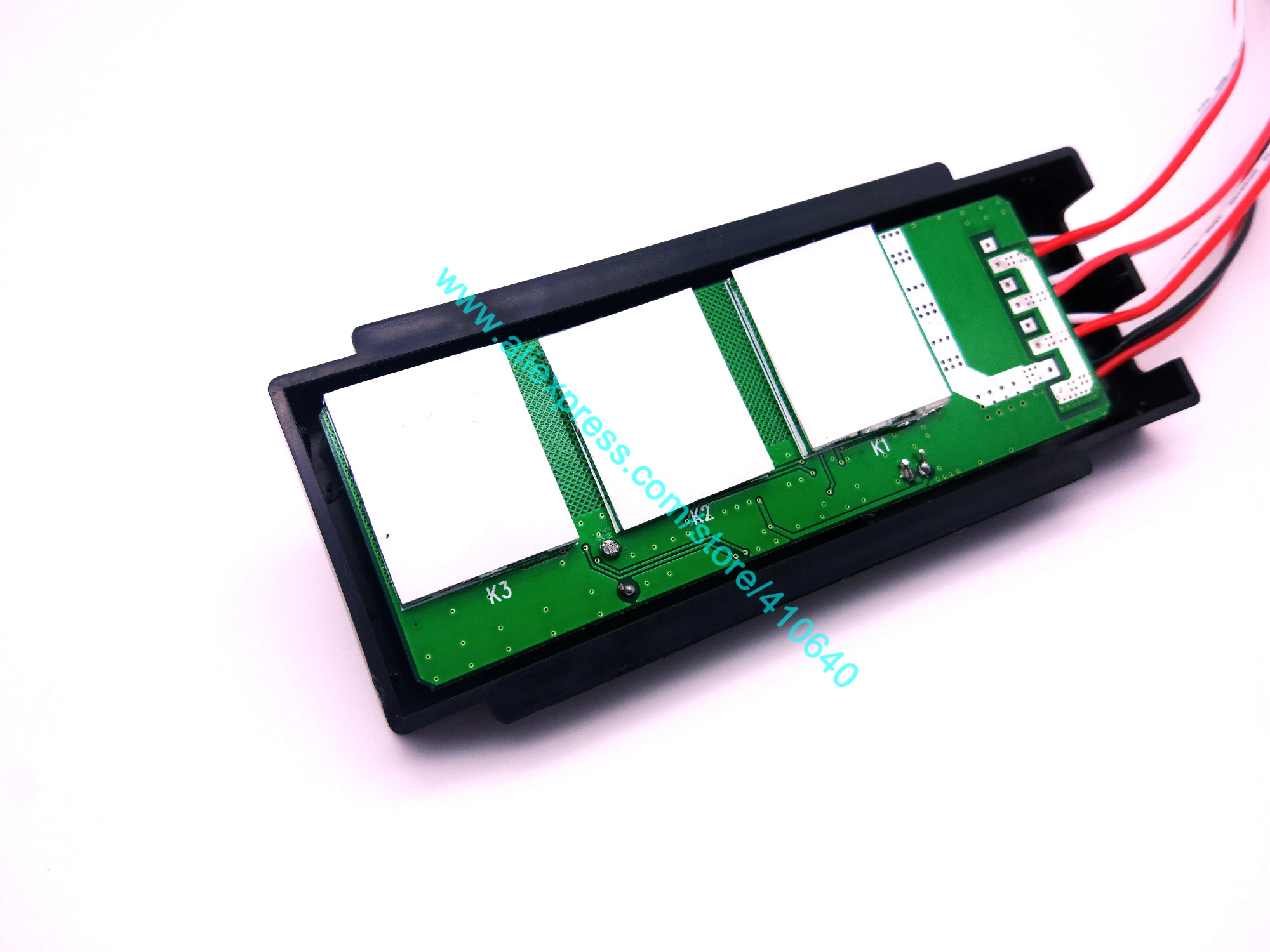

8: You Will Receive The Touch Switch WS08F3-M2-BW / WS08F3-M2A-BW , Totally Same As the Detail Photos Showed Below:
9: Below Are The Products That is Compatible With The Touch Switch WS08F3-M2-BW / WS08F3-M2A-BW , and Below products are all our own designed and products:
a: Power Adapter: D14 http://www.aliexpress.com/item/4001143977296.html
b: Power Adapter: D24 http://www.aliexpress.com/item/4001148019275.html
c: Power Amplifier: http://www.aliexpress.com/item/4001189815565.html
d: Big Power Supply Adapter: http://www.aliexpress.com/item/4001226295374.html
e: Mist removing film: http://www.aliexpress.com/item/32917242459.html
10: Customized Products Available:
In past years, plenty of smart mirror factory purchased from us and many of the items was customzied, if the above function can not meet your needs, please conact us to discuss, our enginner will share our suggestion with you.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
