Buying options explaination:
▶WS08F3-A3-BW:
● This product has a built-in 1-way switch, which is controlled by three buttons.
● Power on, button K1 lights up blue light, K2, K3 backlight does not light, short press K1, the backlight of all buttons turns white, and the LED lights turn on at the same time, and then short press K1 to turn off the LED lights, and the backlight of the keys turns back to blue, so cycle;
● In any state, press and hold the K1 button for 3 seconds to turn off the button backlight and LED light, and then briefly press it to wake up again, the button backlight lights up blue, and the system enters the standby state;
● When the LED light is on, short press K3 to decrease the brightness of the light in stages, and long press to continuously decrease the brightness; short press K3 to increase the light brightness in stages, and long press to continuously increase the brightness.
★ Trumsense Factory Warehouse Directly Delivery
● Model: WS08F3-A3-BW
● Can Steplessly Adjust the Brightness of the LED Strip

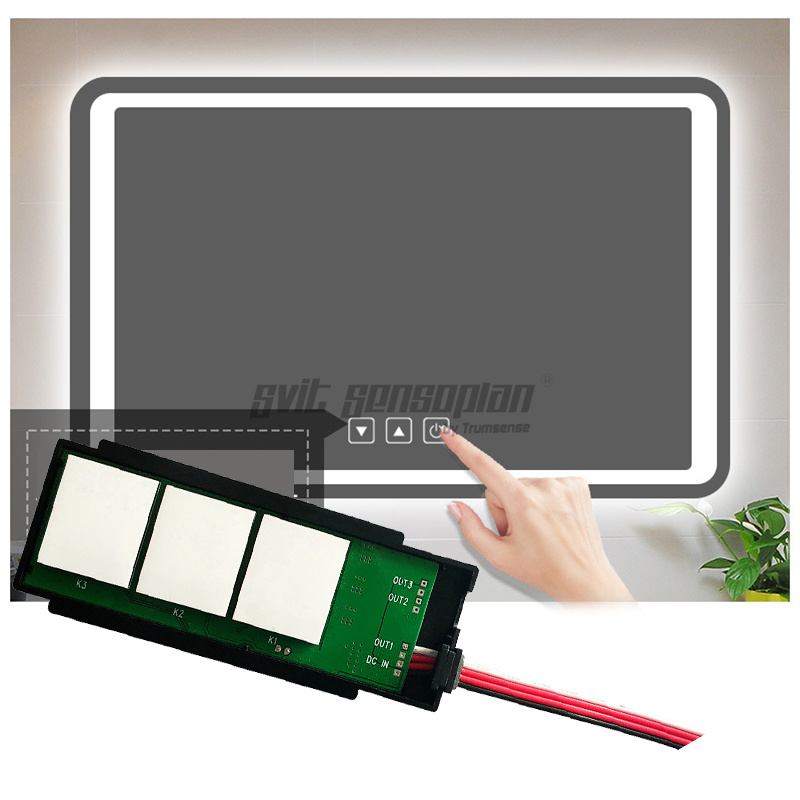

● Used for LED Light Mirror of Bathroom,Washroom,Bedroom, Bar,Hotel,Beauty Salon,Coffee Shop,Sitting Room,KTV,Homestay,Makeup Room... ... ... ... ... ...
1: WS08F3-A3-BWWholesales Price Reminding:
We are the direct factory, our mainly users are from the smart mirror manufacturer worldwide, if you has bulk quantity purchasing plan,please kindly contact us for wholesales offer.
2: Important Before You Place An Order of Touch Switch WS08F3-A3-BW In This Link:
a: We only produce and sell touch switch sensor,do not produce and sell mirror.
b: We will only send you the touch switch sensor, do not send mirror.
c: You will only receive the touch switch, you will not receive any mirror.
d: All the photos with mirror you can see in main photos, in description, in advertisement , in videos,or any other possible places,only with the purpose to show the final performance or functions, after you install our mirror touch switch sensor , on your old/existing mirrors.
e: The most important job is: remove the mercury, to make it transparent, to match our touch switch's touch key, please contact us for the video, if you has a plan to buy or already receive the goods, because we can not upload large file here.
f: We are the factory, we will make the touch panel work perfectly with our instruction, after your parcel was received.
g: If your quantity is very big, please contact us and we will offer you the best prices or maybe exclusive prices in your province or your country.
3: Touch Switch WS08F3-A3-BW Working Principle:

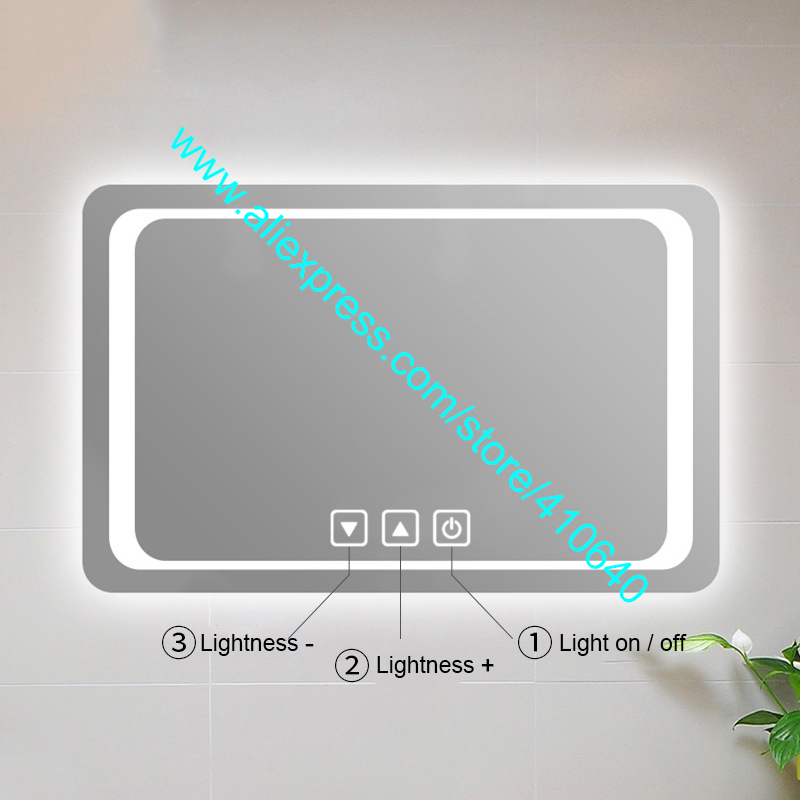

4: Basic Function of Touch Switch WS08D2-S2-BW:
▶WS08F3-A3-BW:
● This product has a built-in 1-way switch, which is controlled by three buttons.
● Power on, button K1 lights up blue light, K2, K3 backlight does not light, short press K1, the backlight of all buttons turns white, and the LED lights turn on at the same time, and then short press K1 to turn off the LED lights, and the backlight of the keys turns back to blue, so cycle;
● In any state, press and hold the K1 button for 3 seconds to turn off the button backlight and LED light, and then briefly press it to wake up again, the button backlight lights up blue, and the system enters the standby state;
● When the LED light is on, short press K3 to decrease the brightness of the light in stages, and long press to continuously decrease the brightness; short press K3 to increase the light brightness in stages, and long press to continuously increase the brightness.
5: Parameters of Touch Switch WS08F3-A3-BW :
Switch name: mirror touch sensor switch
Switch model: WS08F3-A3-BW
Working voltage: DC12-24V
Dimming method: PWM stepless
Working current 35mA (Max)
Brightness adjustment range: Stepless: 5%-100% Grading: 4
Switching current: 5A (Max) total current
Adjust color temperature: none
Touch method: capacitive touch sensing
Switch channel: 3 channels
Button backlight: blue and white
Power-off Memory: none
Support Mirror thickness: ≤5mm

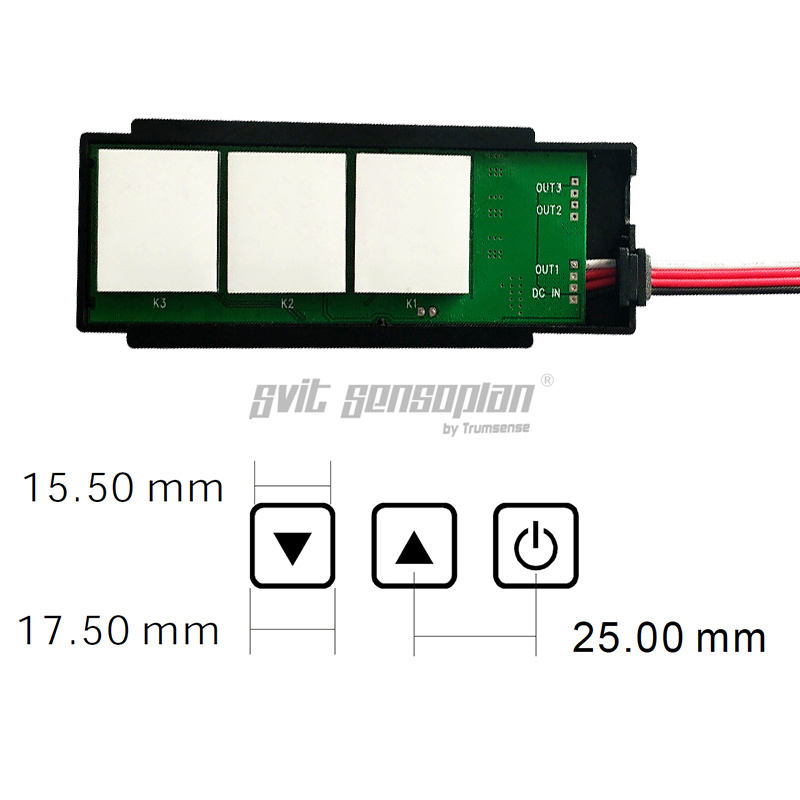

Switch size: 115*46*12mm

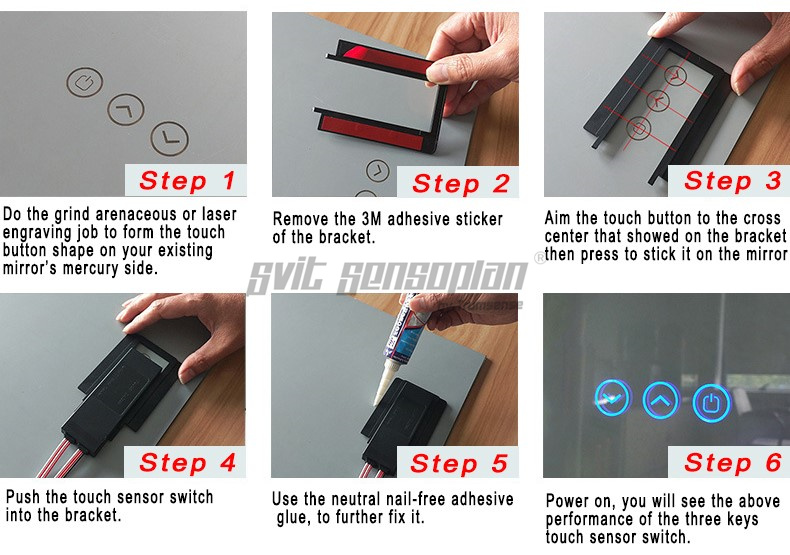

6: Installation of Touch Switch WS08F3-A3-BW :
a: Before the installation ,you need to remove the mercury of your mirror with the laser machine and we will send you the DWG format file for this laser engraving job, after you receive our touch switch, please kindly do the installation as below instruction:

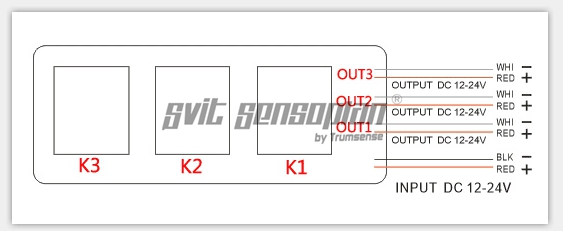

b: Wiring Diagram of WS08F3-A3-BW:
7: Applications of the WS08F3-A3-BW is Used In Below Fields Widely Where There Is A Led Mirror :
like: Bathroom,Washroom,Bedroom, Bar,Hotel,Beauty Salon,Coffee Shop,Sitting Room,KTV,Homestay,Makeup Room...

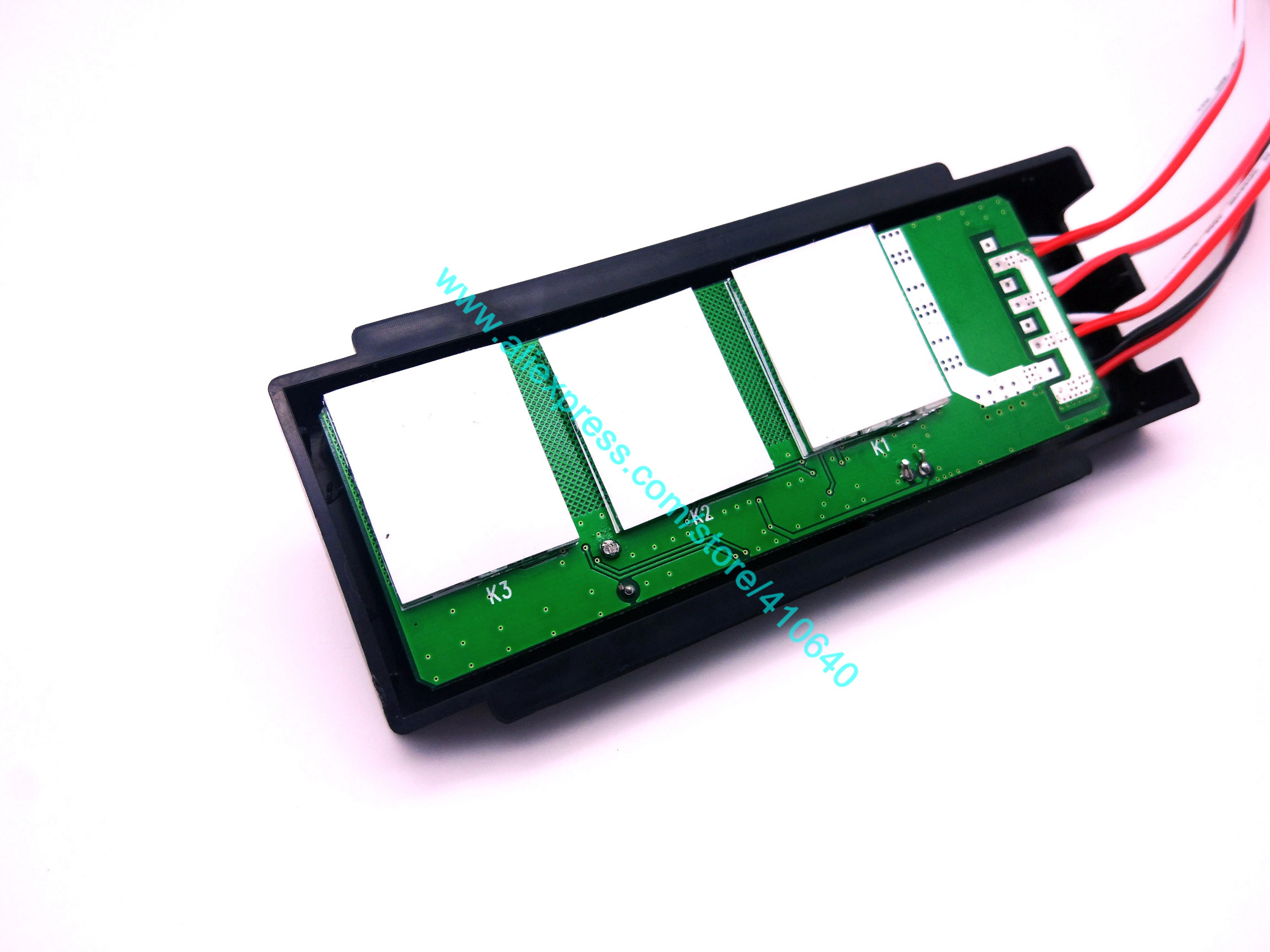

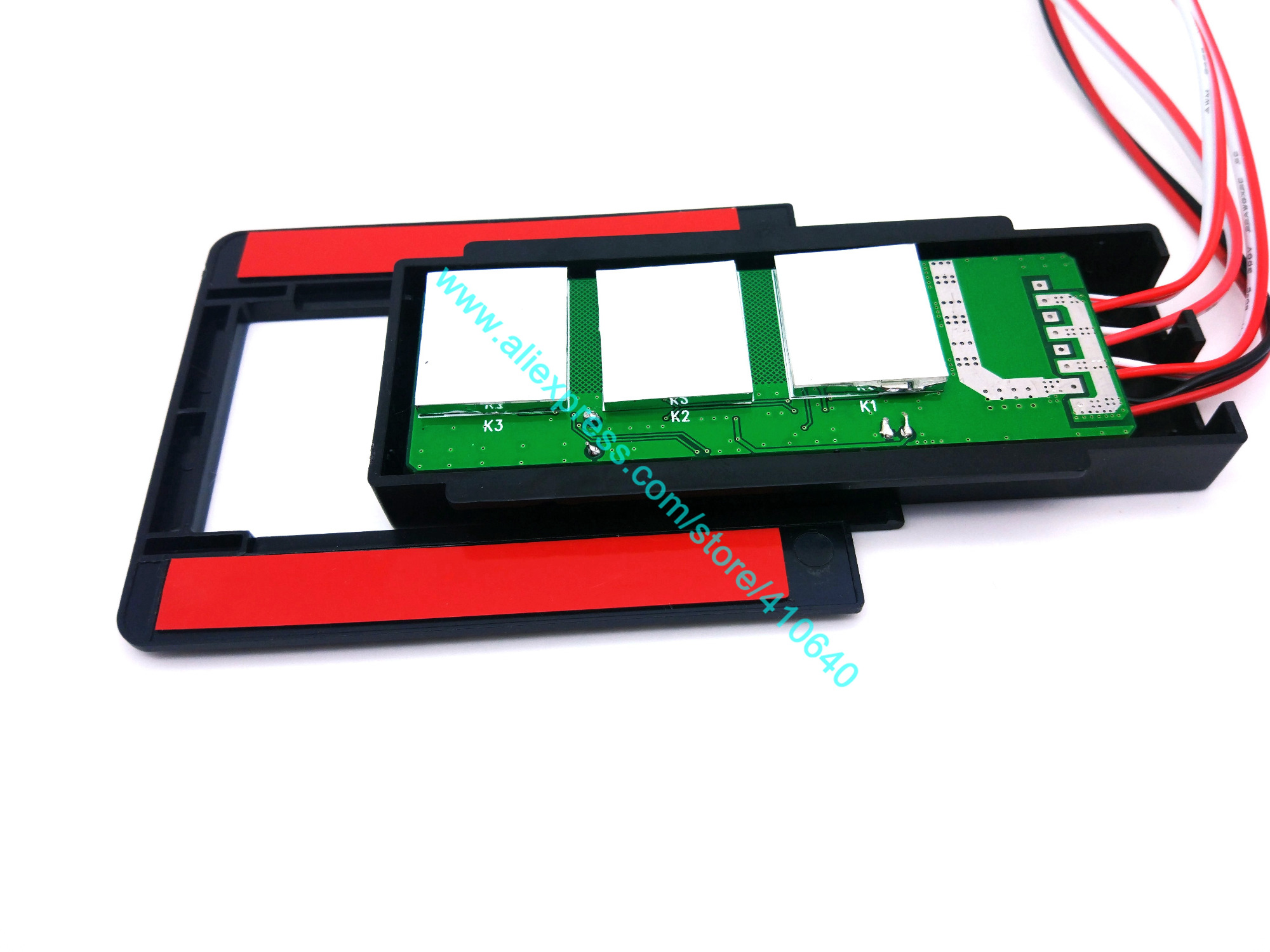

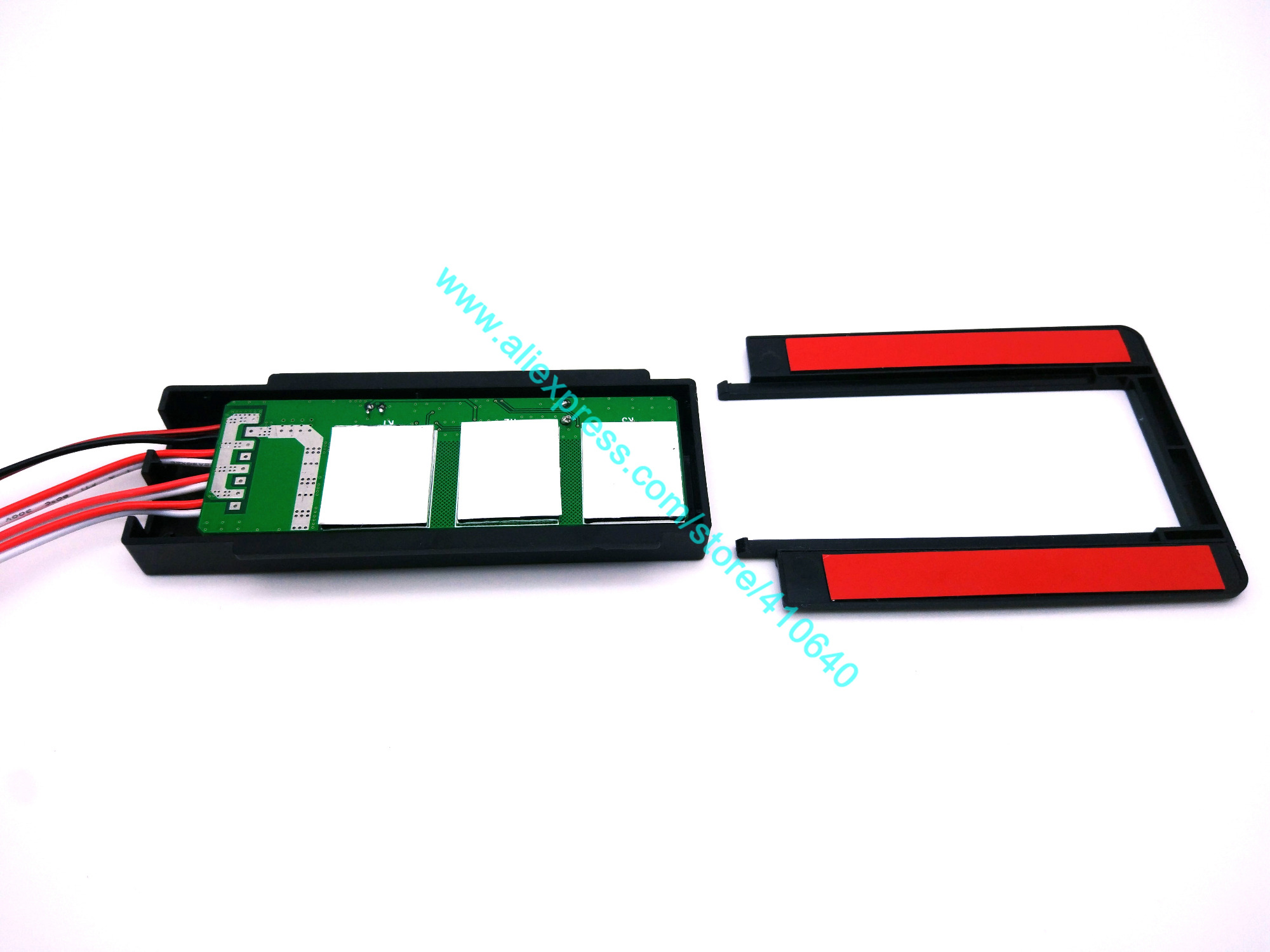

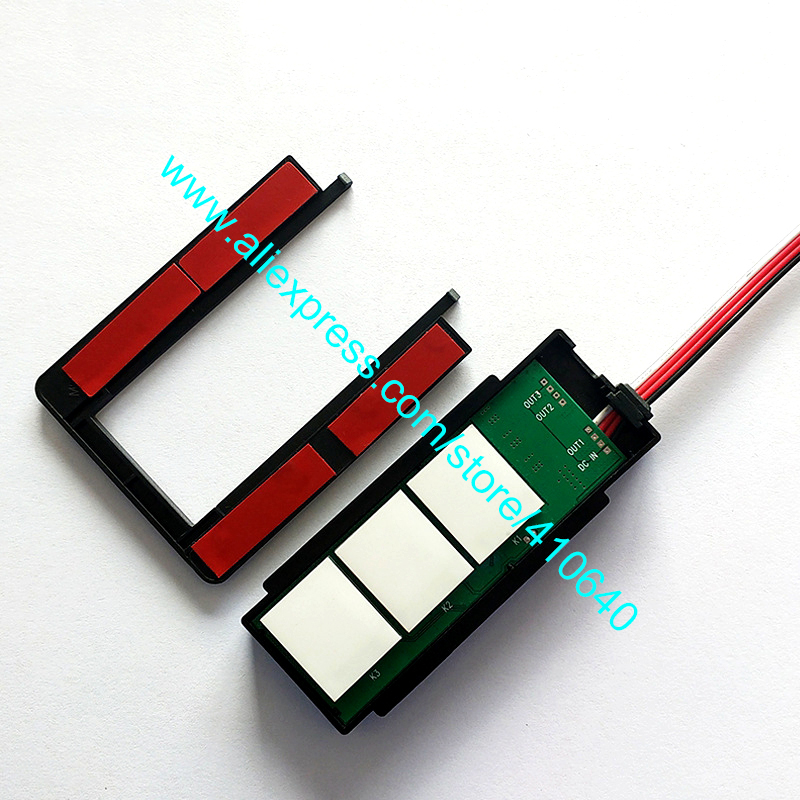

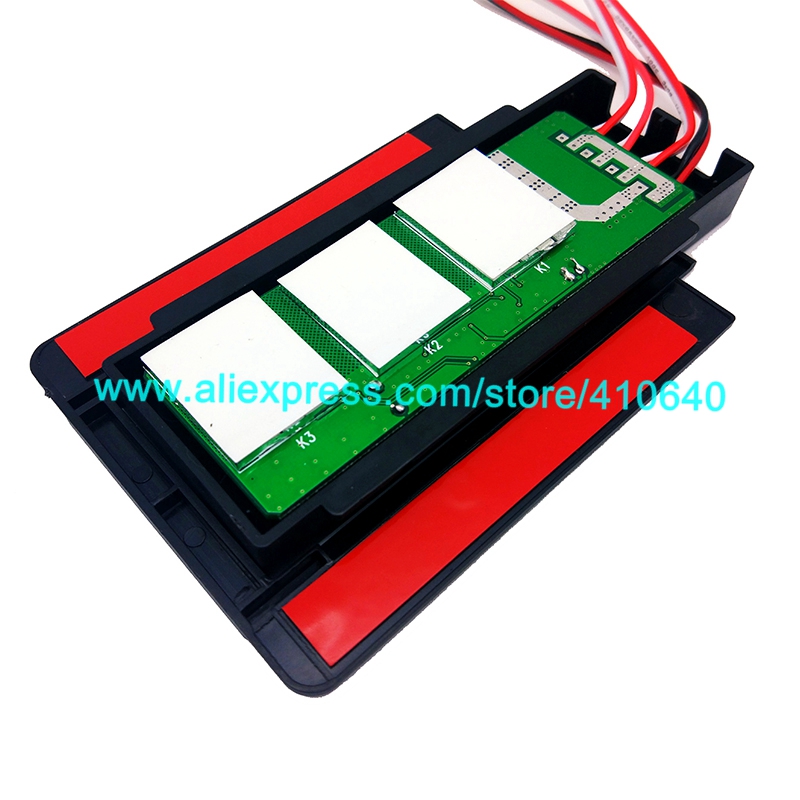

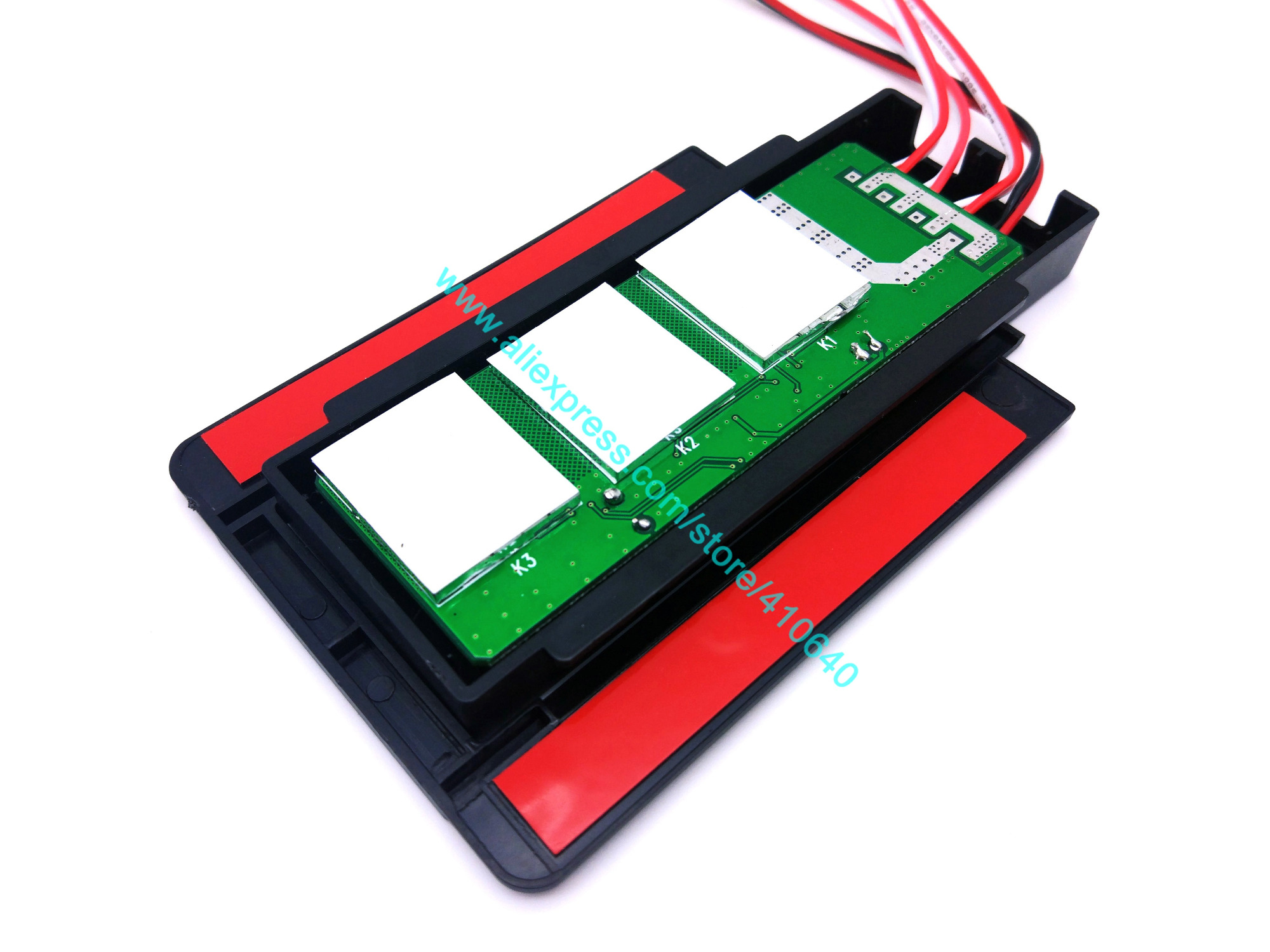

8: You Will Receive The Touch Switch WS08F3-A3-BW , Totally Same As the Detail Photos Showed Below:
9: Below Are The Products That is Compatible With The Touch Switch WS08F3-M2-BW / WS08F3-M2A-BW , and Below products are all our own designed and products:
a: Power Adapter: D14 http://www.aliexpress.com/item/4001143977296.html
b: Power Adapter: D24 http://www.aliexpress.com/item/4001148019275.html
c: Power Amplifier: http://www.aliexpress.com/item/4001189815565.html
d: Big Power Supply Adapter: http://www.aliexpress.com/item/4001226295374.html
e: mist removing film: http://www.aliexpress.com/item/32917242459.html
10: Customized Products Available:
In past years, plenty of smart mirror factory purchased from us and many of the items was customzied, if the above function can not meet your needs, please conact us to discuss, our enginner will share our suggestion with you.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
