Buying options explaination:
▶STT100ABW:

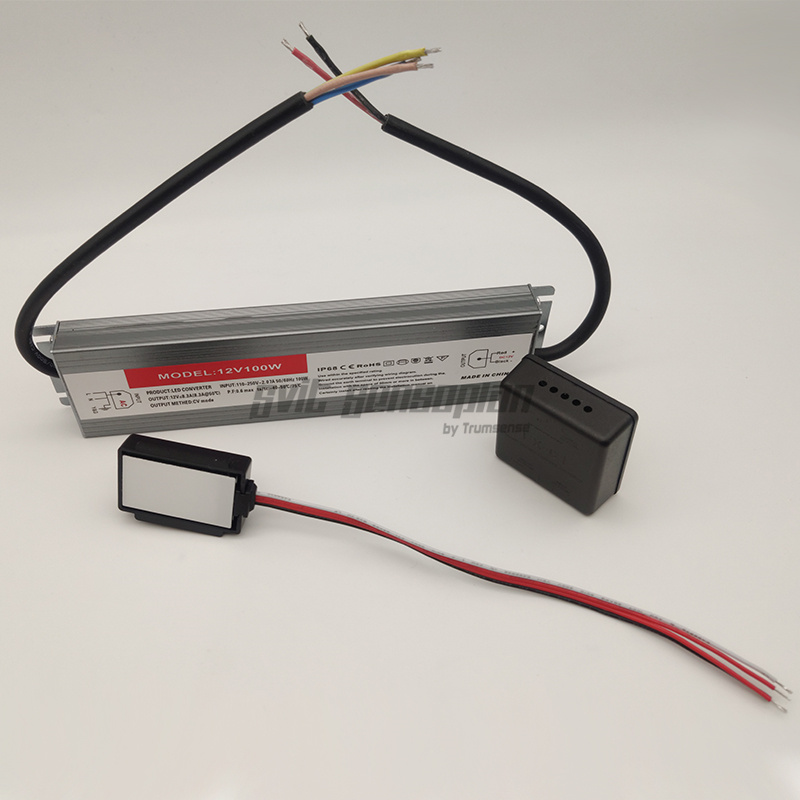

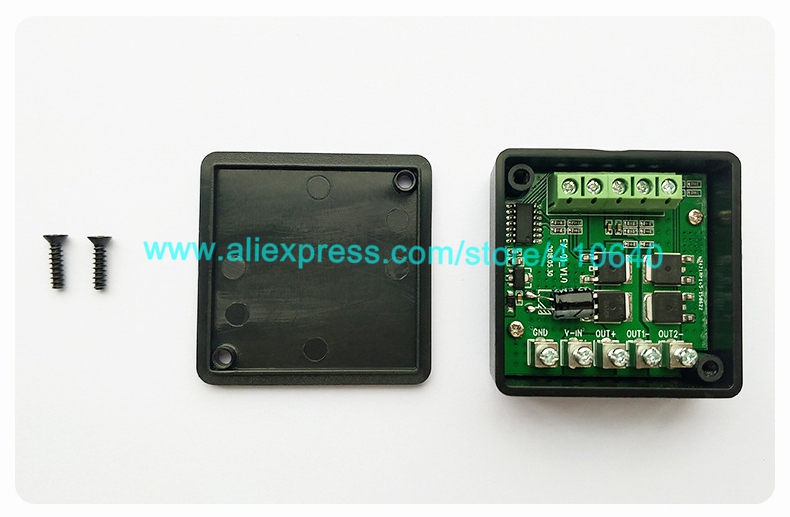

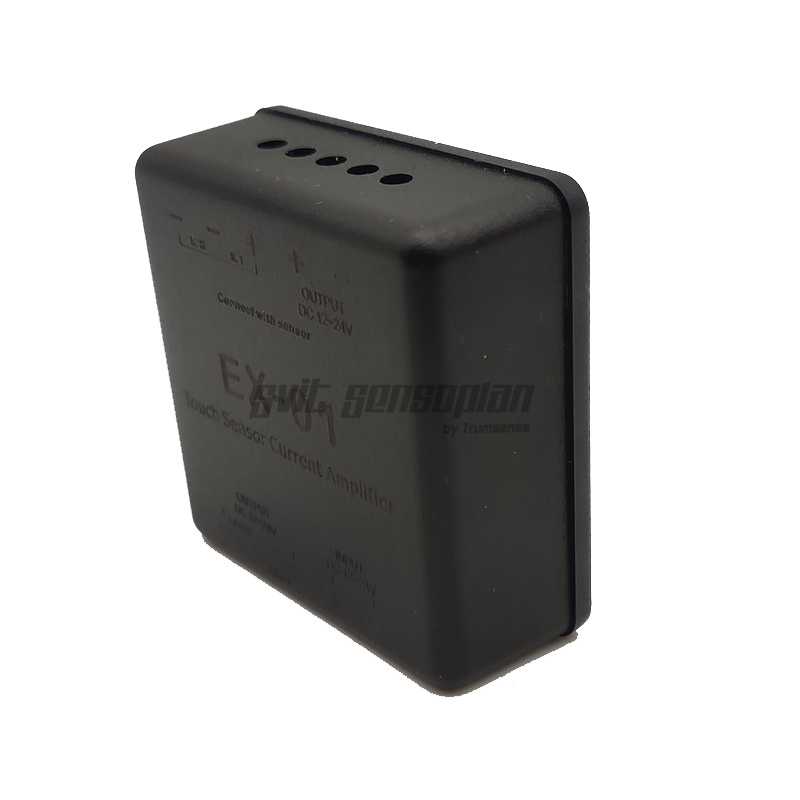

Include: 1 piece touch switch + 1 piece power adapter + 1 current amplifier
Short press : Turn on -Turn off
Long press: continuously and steplessly adjust LED brightness
Blue-white background light colour( for touch switch itself): blue for turn off, white for turn on
★ Trumsense Factory Warehouse Directly Delivery
● Model: STT100ABW Touch Switch
● Can Steplessly Adjust the Brightness of the LED Strip

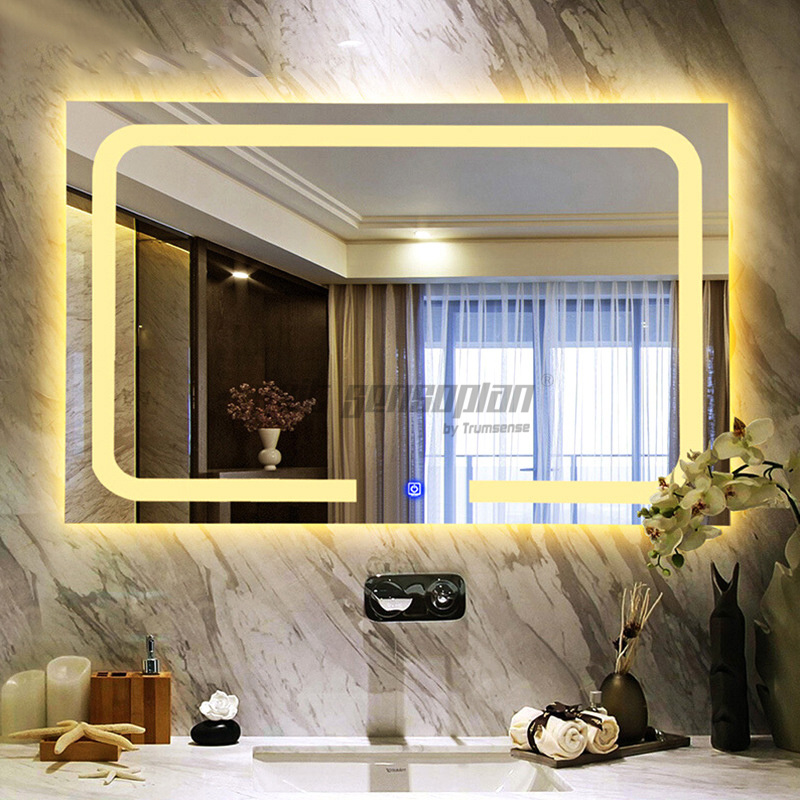

● Used for LED Light Mirror of Bathroom,Washroom,Bedroom, Bar,Hotel,Beauty Salon,Coffee Shop,Sitting Room,KTV,Homestay,Makeup Room... ... ... ... ... ...
1: STT10ABW Touch Switch Wholesales Price Reminding:
We are the direct factory, our mainly users are from the smart mirror manufacturer worldwide, if you has bulk quantity
purchasing plan,please kindly contact us for wholesales offer.
2: Important Before You Place An Order of Touch Switch STT100ABW In This Link:
a: We only produce and sell touch switch sensor,do not produce and sell mirror.
b: We will only send you the touch switch sensor, do not send mirror.
c: You will only receive the touch switch, you will not receive any mirror.
d: All the photos with mirror you can see in main photos, in description, in advertisement , in videos,or any other possible places,only with the purpose to show the final performance or functions, after you install our mirror touch switch sensor , on your old/existing mirrors.
e: The most important job is: remove the mercury, to make it transparent, to match our touch switch's touch key, please contact us for the video, if you has a plan to buy or already receive the goods, because we can not upload large file here.
f: We are the factory, we will make the touch panel work perfectly with our instruction, after your parcel was received.
g: If your quantity is very big, please contact us and we will offer you the best prices or maybe exclusive prices in your province or your country.
3: Touch Switch STT100ABW Working Principle:
STT100ABW is a LED touch stepless dimming switch for DC12V power supply, which realizes the touch switch control function of LED lamp, light tube, antifogging film and DC12V electrical appliance. STT100ABW series mirror touch switch is a product specially designed for bathroom intelligent lamp mirror. The product has reliable performance, convenient installation, sensitive touch and high output power, which is suitable for the control of various mirror lights and other electrical appliances. A backlight is designed on the touch switch board. The backlight and the touch switch are designed as a whole. When the power supply and the switch are connected, the backlight on the switch board is lighted after the power supply is switched on. The backlight is always bright and can be closed by long-touch.
The switch is activated by the touch of a finger, and stopped when you leave your hand. The touch is sensitive, and the illuminated keys can be easily seen even in the dark.
Multiple functional models available,the design of STT100ABW series ncludes general switch function, stepless brightness adjustment and different background light colour (touch switch itself) for the users' selection.
4: Basic Function of Touch Switch STT100A procduct:
a: The backlight selection of the touch switch (that is, the backlight color of the switch button itself, the switch model
with single-color backlight is suffixed with a single letter, and the backlight color is single and concise; the switch
model with two-color backlight is suffixed with two letters,which are different in different states. Backlight color, easy to distinguish):
B: blue backlight, the backlight of the switch is powered on and turned on is blue, a single backlight color;
W : White backlight, the backlight of the switch is powered on and turned on is white, a single backlight color;
BW: blue and white backlight, after the switch is powered on, the backlight is blue, when it is turned on, it is white
backlight, two-color backlight;
RB: red and blue backlight, after the switch is powered on, the backlight is red, when it is turned on, it is blue
backlight, two-color backlight;
b: Function selection of WS08BA touch switch:
Ordinary touch switch: after the switch is powered on, touch it once to turn on the light, touch it again to turn off the
led light;
Stepless dimming switch: After the switch is powered on, touch it to turn on the light, press and hold the touchpad
when the light is on, you can dim the brightness of the led light, the brightness range is
5%-100% brightness, and touch it again to turn off the light.
c: Function example explaination:
▶STT100ABW :
Short press : Turn on -Turn off
Long press: continuously and steplessly adjust LED brightness
Blue-white background light colour( for touch switch itself): blue for turn off, white for turn on
5: Parameters of Touch Switch STT100ABW:
Product name : single-touch switch
Product mode : STT100ABW
Working voltage : DC 12V
Load power : 100W
Keystroke backlight : blue, or white or blue- white ,or red-blue
Touching mode : capacitive inductive touch
Support mirror thickness : 3-5 mm

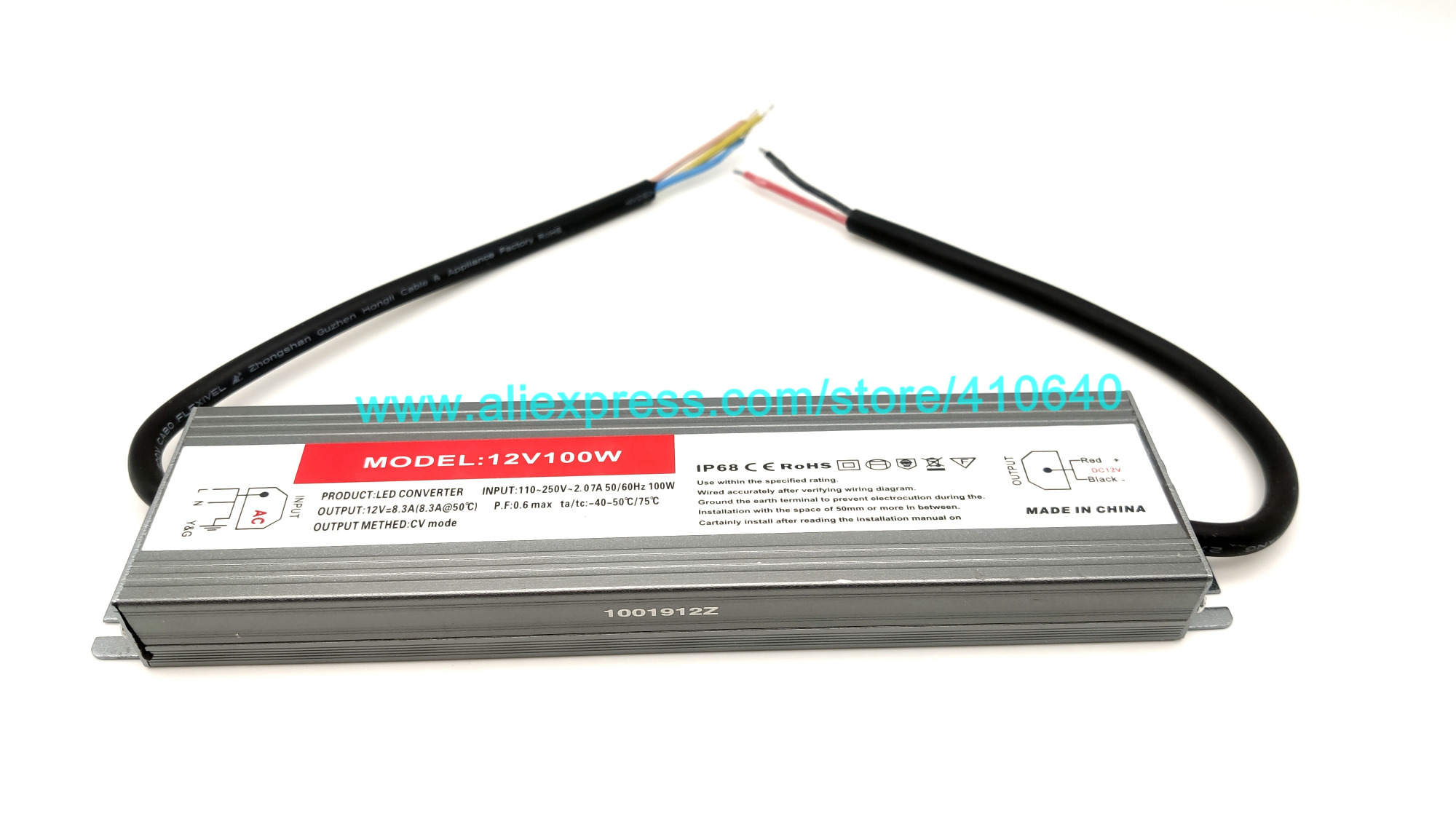

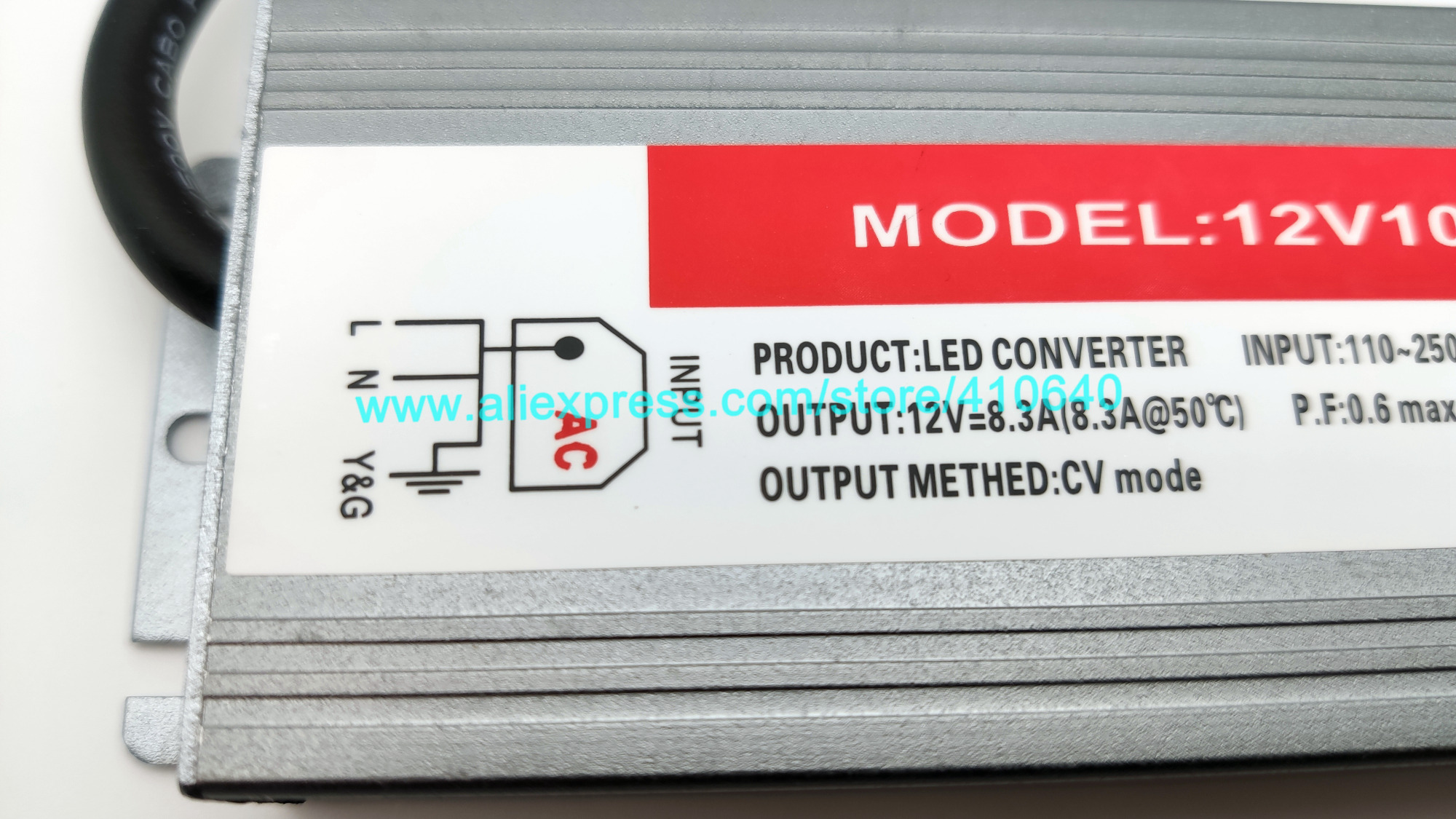

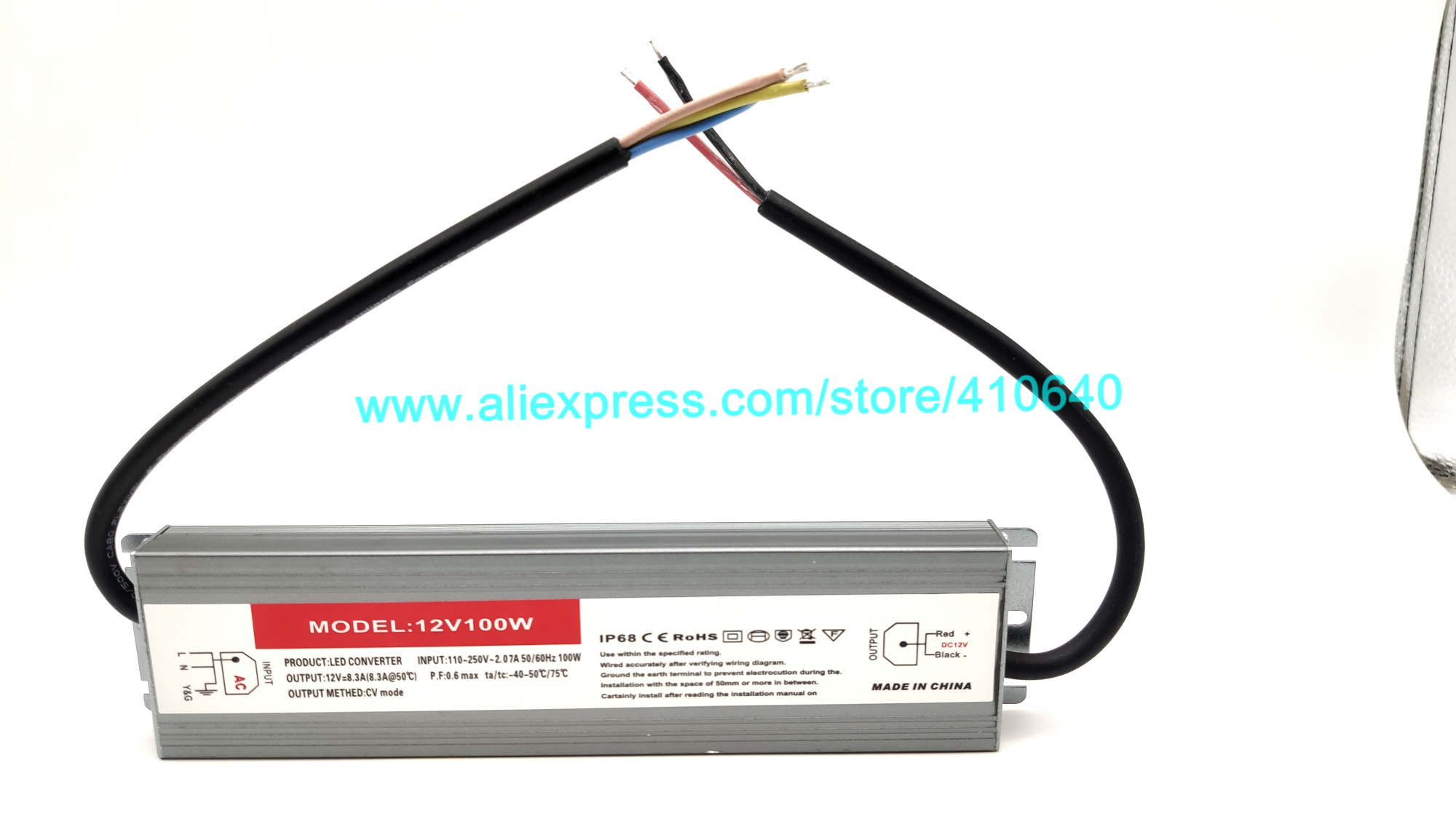

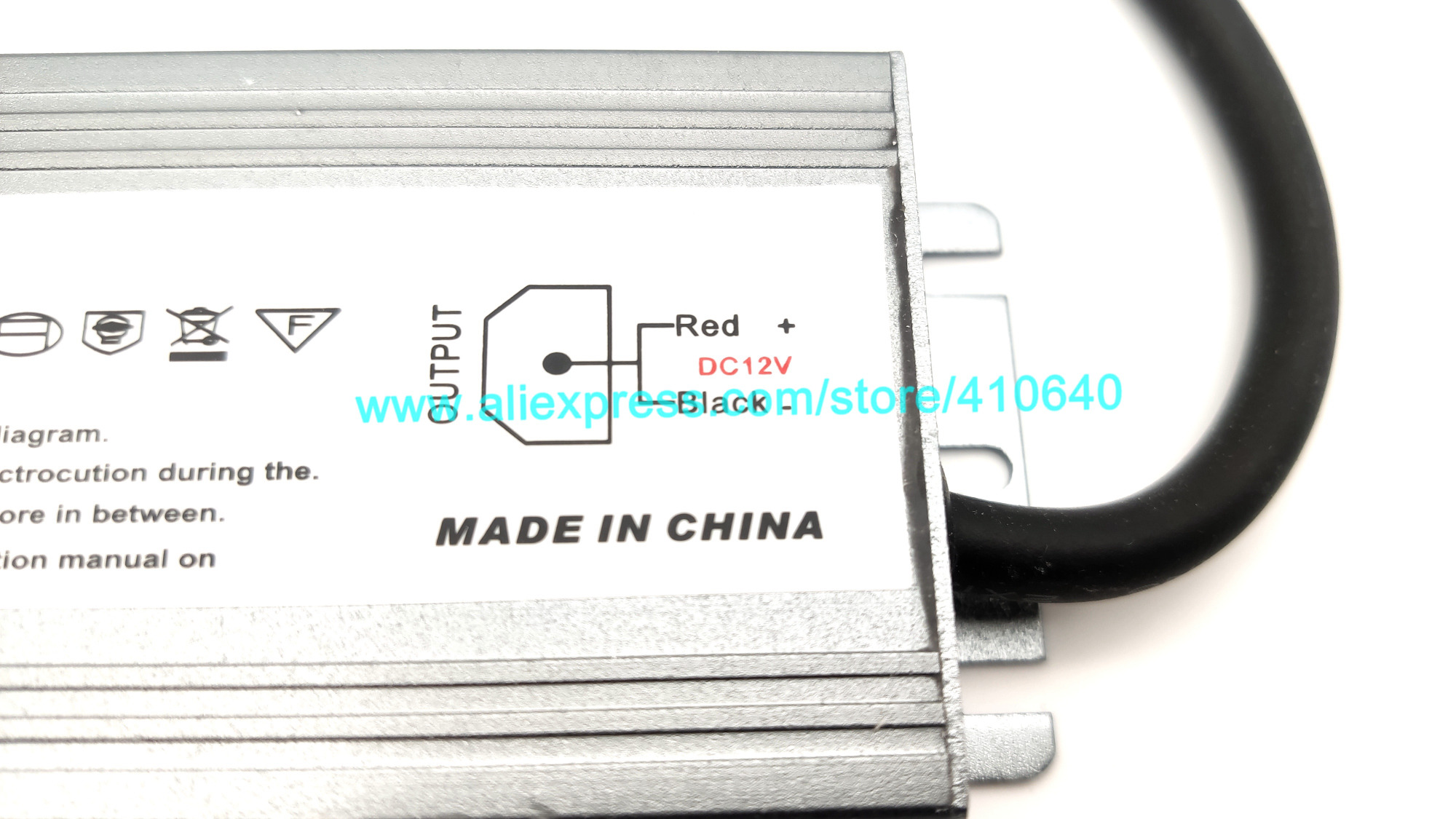

Power Adapter :
Input: AC 110 to 240V 50/60 Hz
Output: DC 12V
Power: 100 W

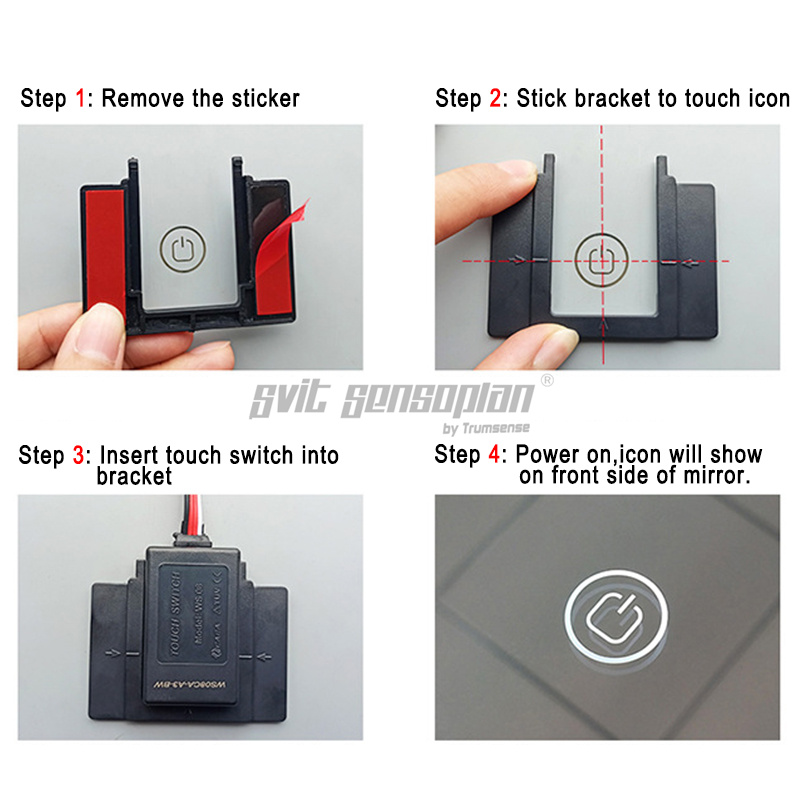

6: Installation of Touch SwitchSTT100ABW :
a: Before the installation ,you need to remove the mercury of your mirror with the laser machine and we will send you
the DWG format file for this laser engraving job, after you receive our touch switch, please kindly do the installation as
below instruction:

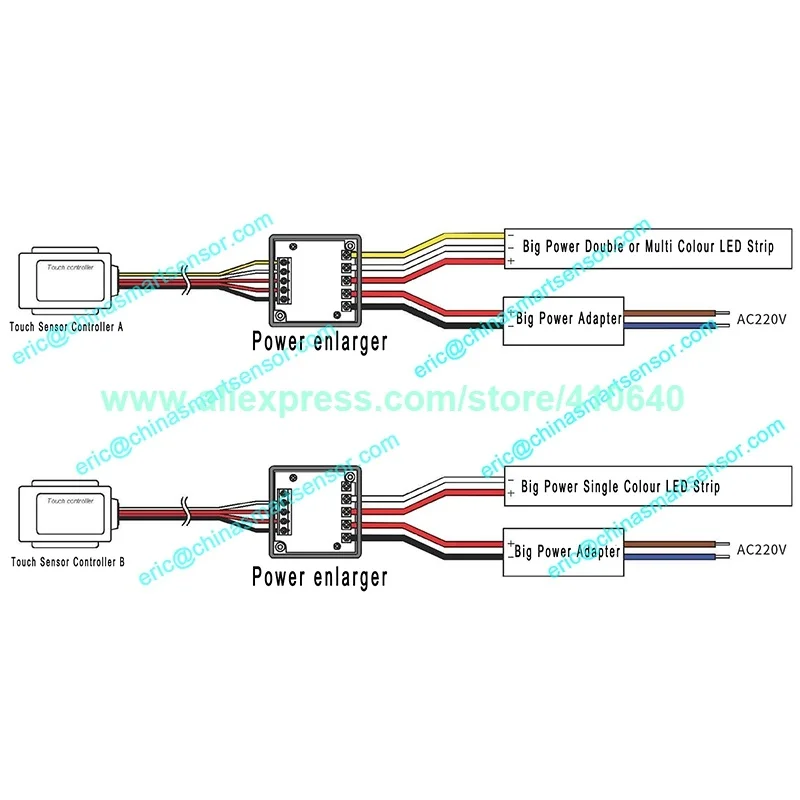

b: Wiring Diagram of STT100ABW:
7: Applications of the Touch Switch STT100ABW is Used In Below Fields Widely Where There Is A Led Mirror :
like: Bathroom,Washroom,Bedroom, Bar,Hotel,Beauty Salon,Coffee Shop,Sitting Room,KTV,Homestay,Makeup Room...

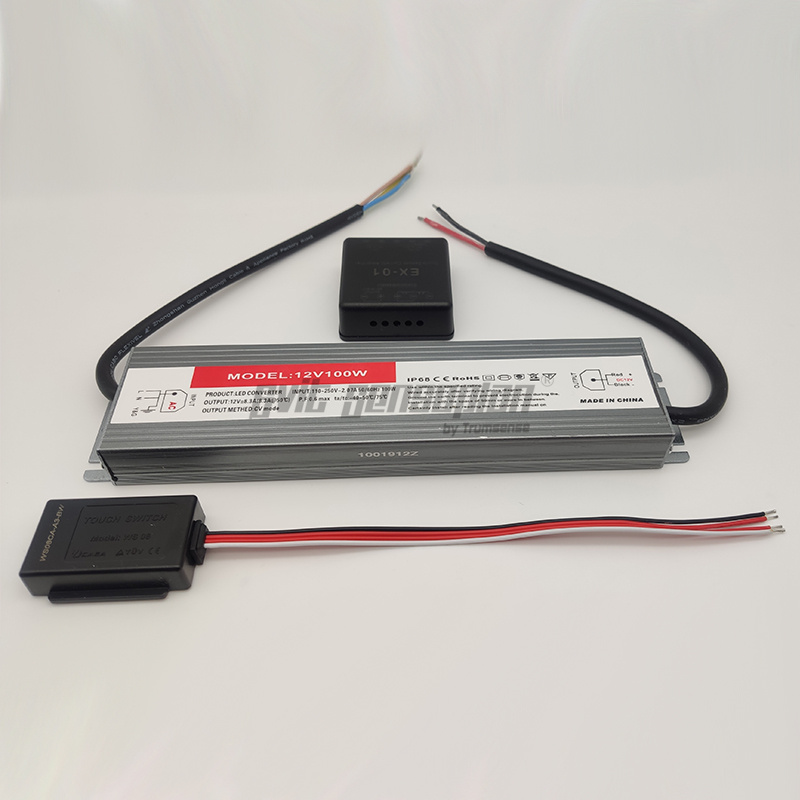

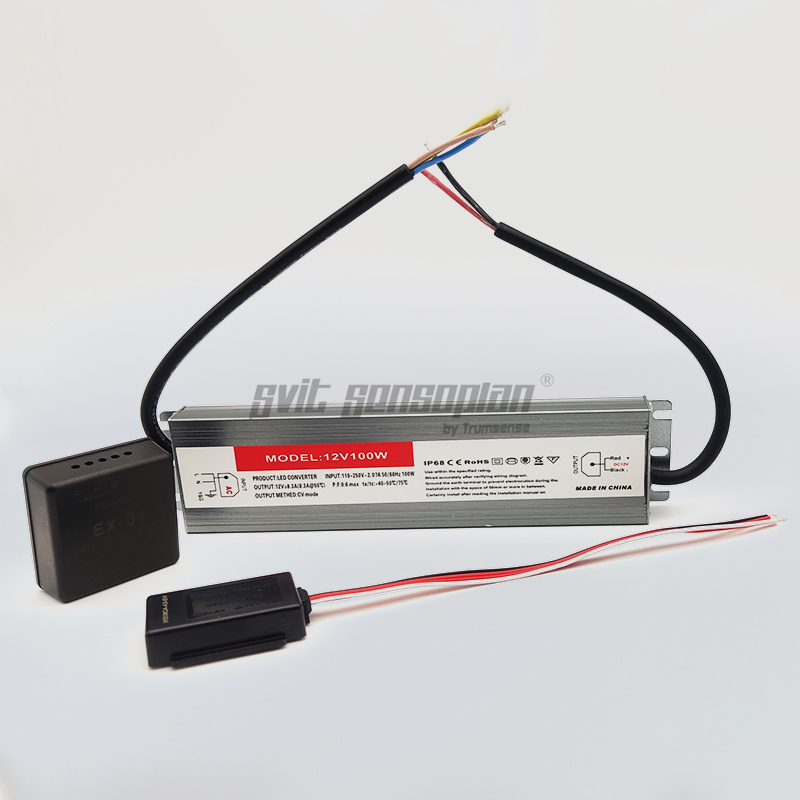

8: You Will Receive The Touch Switch STT100ABW , Totally Same As the Detail Photos Showed Below:
9: Below products are all our touch switch series :
1 Key Touch Switch (Classic Version):http://www.aliexpress.com/item/32594552735.html
1 Key Touch Switch (Classic +Various Background Light Colour Version):http://www.aliexpress.com/item/32909271460.html
1 Key Touch Switch (Colder and Warmer Light Colour Adjusting Version):http://www.aliexpress.com/item/32902357301.html
1 Key Touch Switch (Economic Version):http://www.aliexpress.com/item/1005002003884916.html
1 Key Touch Switch (To control mist removing film's on or off Version):http://www.aliexpress.com/item/32660063938.html
1 Key Touch Switch (To load maximum 100W LED Strip):http://www.aliexpress.com/item/1005001390397144.html
1 Key Touch Switch (220V Power Supply, control 220V LED Strip): http://www.aliexpress.com/item/32585167240.html
2 Keys Touch Switch (Classic Version): http://www.aliexpress.com/item/32906612564.html
2 Keys Touch Switch (New Version): http://www.aliexpress.com/item/32961645054.html
3 Keys Touch Switch (light on off +mist removing +bluetooth): http://www.aliexpress.com/item/32923035225.html
4 Keys Touch Switch Panel (Classic Version): http://www.aliexpress.com/item/32584015744.html
4 Keys Touch Switch Panel (Classic Version + Mist removing): http://www.aliexpress.com/item/32907177053.html
4 Keys Touch Switch Panel (Bluetooth Displayer+Stepless LED Brightness Adjusting ): http://www.aliexpress.com/item/4001170396482.html
6 Keys Touch Switch Panel:
K3015CA-USB: only has no function of mist removing. the rest are available.(special function: USB port)
K3015CA-USB link: http://www.aliexpress.com/item/32906393239.html
K3015-CBF: only has no function of radio and USB port. the rest are available. (special function: has the mist removing control touch button)
K3015-CBF link:http://www.aliexpress.com/item/32908778833.html
K3015CA: no function of mist removing and USB port, the rest are available.
K3015CA link: http://www.aliexpress.com/item/32859138342.html
Mist removing film: http://www.aliexpress.com/item/32917242459.html
Suitable DC 12V or DC 24V output power adapter:
D14 power adapter:http://www.aliexpress.com/item/4001143977296.htmlorhttp://www.aliexpress.com/item/4001147933707.html
D24 power adapter:http://www.aliexpress.com/item/4001148019275.htmlorhttp://www.aliexpress.com/item/4001148067097.html
Relay FD-01http://www.aliexpress.com/item/4001148405262.html
Waterproof 3D Sound Quality Speaker:
http://www.aliexpress.com/item/33012206241.html
Bluetooth Speaker:
http://www.aliexpress.com/item/1005001485234783.html

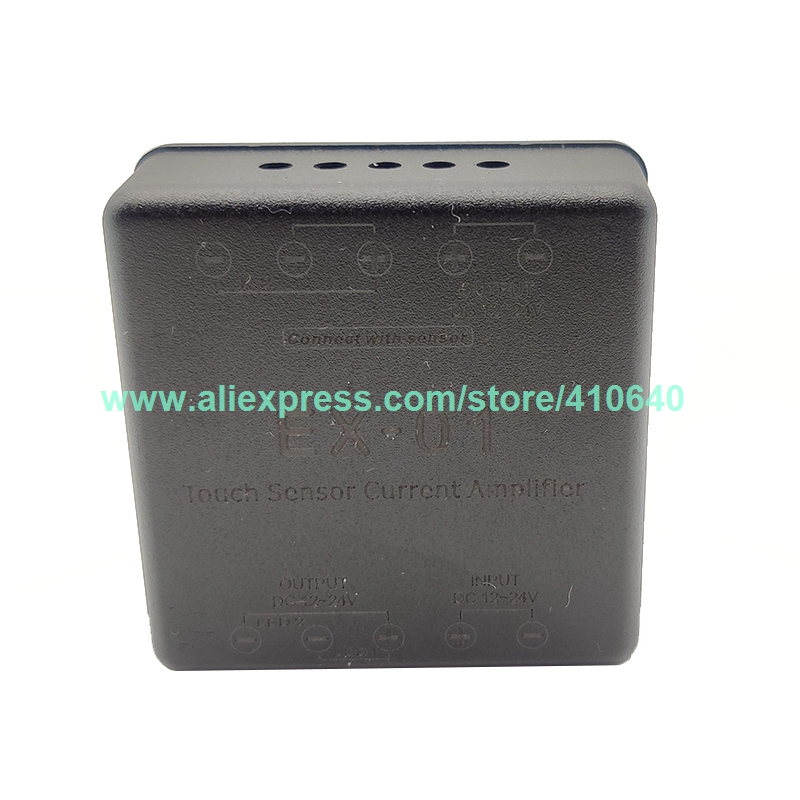

Power Amplifier EX-01:
http://www.aliexpress.com/item/4001189815565.html
110-220V to DC 12V LED Power Converter:
10: Customized Products Available:
In past years, plenty of smart mirror factory purchased from us and many of the items was customzied, if the above
function can not meet your needs, please conact us to discuss, our enginner will share our suggestion with you.
