Buying options explaination:
▶1 set of K3015CAS:
★ Time + Date + Week + Temperature Displaying
★ LED Strip on / off
★ FM Radio
★ Anti-fog film on off control
★ Black LED screen back ground light
★ Trumsense Factory Warehouse Directly Delivery
● Model: K3015CAS-S5
● Time + Date + Week + Temperature Displaying
● Bluetooth
● Anti-mist film On Off Control
● FM Radio
● LED Strip on / off
● Black LED screen back ground light
● Used for LED Light Mirror of Bathroom,Washroom,Bedroom, Bar,Hotel,Beauty Salon,Coffee Shop,Sitting Room,KTV,Homestay,Makeup Room... ... ... ... ... ...
1: K3015CAS Wholesales Price Reminding:
We are the direct factory, our mainly users are from the smart mirror manufacturer worldwide, if you has bulk quantity purchasing plan,please kindly contact us for wholesales offer.
2: Important Before You Place An Order of Touch Switch K3015CAS In This Link:
a: We only produce and sell touch switch sensor,do not produce and sell mirror.
b: We will only send you the touch switch sensor, do not send mirror.
c: You will only receive the touch switch, you will not receive any mirror.
d: All the photos with mirror you can see in main photos, in description, in advertisement , in videos,or any other possible places,only with the purpose to show the final performance or functions, after you install our mirror touch switch sensor , on your old/existing mirrors.
e: The most important job is: remove the mercury, to make it transparent, to match our touch switch's touch key, please contact us for the video, if you has a plan to buy or already receive the goods, because we can not upload large file here.
f: We are the factory, we will make the touch panel work perfectly with our instruction, after your parcel was received.
g: If your quantity is very big, please contact us and we will offer you the best prices or maybe exclusive prices in your province or your country.
3: Touch Switch K3015CAS Working Principle:

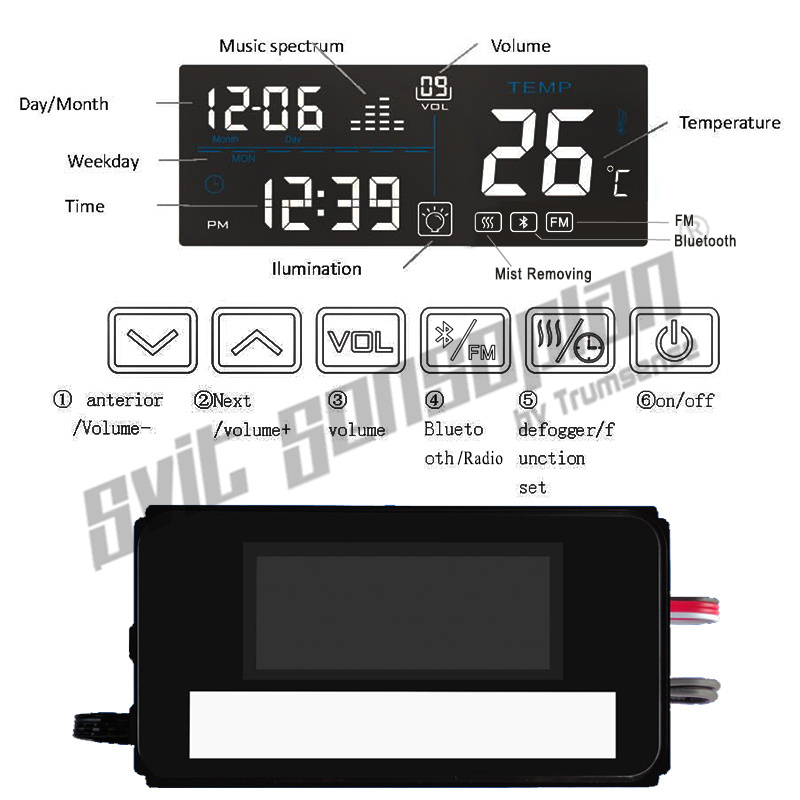

4: Basic Function of Touch Switch K3015CAS:
▶K3015CAS:
Ilumination
K6 is the lighting control key, which can switch the lighting or adjust the brightness and color temperature, as shown in the following table
b. Defogger（Optional function）
Short press K5 to turn on or off the anti-fog; (the anti-fog switch has a timing off function, after the anti-fog function is turned on, it will automatically turn off after more than 60 minutes)
Note: The anti-fog function is turned on by automatic detection, and the anti-fog load must be connected before powering on to have the anti-fog switch function.
c. How to set
In the normal standby state (Bluetooth function is off), long press K5 for 3 seconds to enter the setting mode. At the same time, the screen displays "24Hr" and flashes, indicating that the default is 24 hours. By short pressing K1/K2, you can select "12Hr" or " 24Hr".
Short press K5 again to enter the hour digit adjustment. The hour digit of the time displayed on the screen flashes. At this time, the hour digit can be adjusted by short pressing K1/K2. (AM12~11-PM12~11 or 0~23 cycle)
Short press K5 again to enter the minute digit adjustment. The minute digit of the time displayed on the screen flashes. At this time, the minute digit can be adjusted by short pressing K1/K2. (00~59 cycle)
After the time adjustment is completed, short press K5 again to enter the date adjustment. First, the year will be displayed and flashing. At this time, the year can be adjusted by short pressing K1/K2;
After confirming the year, short press K5 again to enter the month adjustment, the month digit displayed on the screen flashes, at this time, the month digit can be adjusted by short pressing K1/K2;
After confirming the month, short press K5 again to enter the day adjustment. The day position displayed on the screen flashes. At this time, you can adjust the day position by short pressing K1/K2.
After confirming the date, short press K5 again to enter the temperature unit selection. The temperature unit displayed on the screen flashes. At this time, short press K1/K2 can be adjusted to "ºC" or "ºF".
In the setting mode, if there is no key operation for 5 seconds, the current setting is automatically saved and the setting mode is exited, returning to the normal standby state.
d. Bluetooth playback function
Short press the K4 button to turn on the Bluetooth function. The number area at the top left of the display will display the "Bt===" scroll bar, indicating that the Bluetooth is starting. After the speaker emits a "beep beep" music prompt, the screen will display the Bluetooth icon And flashing, at this time the Bluetooth function is fully turned on and enters the searchable state, turn on the Bluetooth function of the mobile phone and search for the device name of "K3015C" to connect, the connection is successful
In the playing state, press K1 key to switch to the previous song, press K2 key to switch to the next song;
In the playback state,press the K3 button and wait for the volume icon at the top of the screen to flash, you can adjust the playback volume by pressing the K1 button or the k2 button. After 3 seconds of inactivity, the volume icon stops flashing and returns to the normal standby state;
e. FM radio setting
Short press the K4 key twice to turn on the FM radio function. The “FM===” scroll bar will be displayed in the digital area on the upper left of the display, indicating that the FM radio is starting. After the start is completed, the FM icon will be displayed, and the upper left area will display the currently listening radio frequency;
In FM radio state, press K1 to switch to the previous radio channel, and press K2 to switch to the next radio channel;
In the listening state, press the K3 until the volume icon at the top of the screen flashes, then you can adjust the volume just like during Bluetooth playback;
Automatic search: Press and hold the K3 key for three seconds to enter the automatic search mode. At this time, the receivable radio channels can be automatically searched and stored. After the search is completed, it will return to the first radio channel for normal listening.
Manual search: long press the K2 key to enter the manual search mode. At this time, you can adjust the listening frequency by short pressing the K1 key and K2 key. After finding the channel you want to listen to, short press K3 to save the current channel. radio channel.
Delete radio channel: For some radio channels with poor signal or you don't want to listen to, you can delete them manually. Press and hold the K1 key for three seconds to delete the currently listening radio channel.
f. night mode
This product comes with a night mode, the LCD screen will automatically switch to a low-brightness state in the middle of the night, so as not to display too bright and dazzling at night. Specifically, the brightness is 100% from 06:00 to 22:00, and the brightness is reduced to 10% from 22:00 to 06:00.
In night mode, when there is an operation, the display will return to normal brightness, and after no operation for more than 10 seconds, it will revert to a low-brightness display.
The whole machine shuts down and the screen sleeps when you need to completely turn off the screen display, you can press and hold the K6 button for 3 seconds when the lighting is off to turn off the screen display and enter the sleep state. Short press the K6 button again to wake up and enter the normal standby state.
5: Parameters of Touch Switch K3015CAS :
6: Installation of Touch Switch K3015CAS :
a: Before the installation ,you need to remove the mercury of your mirror with the laser machine and we will send you the DWG format file for this laser engraving job, after you receive our touch switch, please kindly do the installation as below instruction:
b: Wiring Diagram of K3015CAS:
7: Applications of the K3015CAS Used In Below Fields Widely Where There Is A Led Mirror :
like: Bathroom,Washroom,Bedroom, Bar,Hotel,Beauty Salon,Coffee Shop,Sitting Room,KTV,Homestay,Makeup Room... aa

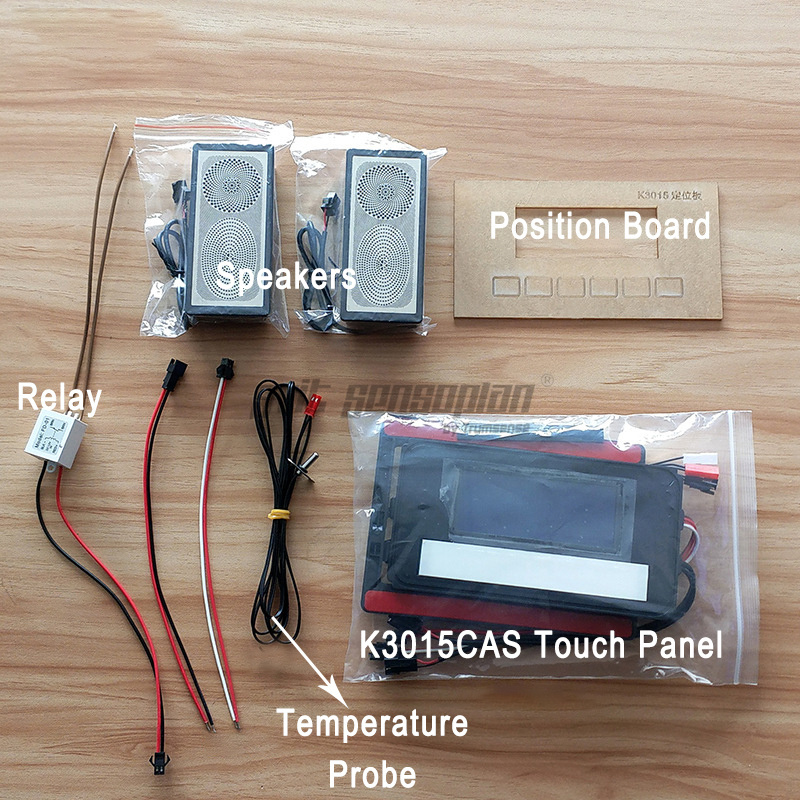

8: You Will Receive The Touch Switch K3015CAS , Totally Same As the Detail Photos Showed Below:
9: Below Are The Products That is Compatible With The Touch Switch K3015CAS, and Below products are all our own designed and products:
a: Power Adapter: D14 http://www.aliexpress.com/item/4001143977296.html
b: Power Adapter: D24 http://www.aliexpress.com/item/4001148019275.html
c: Power Amplifier: http://www.aliexpress.com/item/4001189815565.html
d: Big Power Supply Adapter: http://www.aliexpress.com/item/4001226295374.html
10: Customized Products Available:
In past years, plenty of smart mirror factory purchased from us and many of the items was customzied, if the above function can not meet your needs, please conact us to discuss, our enginner will share our suggestion with you.
