Buying options explaination:
▶K3013CAR01-A1-B :
Short press : Turn on LED and anti-fog film -Turn off and anti-fog film
Long press : continuous adjustment of light brightness
Blue background light colour ( for touch switch itself): Blue for both on or off
▶K3013CAR01-A1-W
Short press : Turn on LED and anti-fog film -Turn off and anti-fog film
Long press : continuous adjustment of light brightness
White background light colour ( for touch switch itself): Blue for both on or off
▶K3013CAR01-A3-BW
Short press : Turn on LED and anti-fog film -Turn off and anti-fog film
Long press : continuous adjustment of light brightness
Blue-white background light colour( for touch switch itself): blue- for turn off, white- for turn on
★ Trumsense Factory Warehouse Directly Delivery
● Model: K3013CAR01-A1-B / K3013CAR01-A1-W / K3013CAR01-A3-BW Touch Switch
● Can Steplessly Adjust the Brightness of the LED Strip
● Used for LED Light Mirror of Bathroom,Washroom,Bedroom, Bar,Hotel,Beauty Salon,Coffee Shop,Sitting Room,KTV,Homestay,Makeup Room... ... ... ... ... ...
1: K3013CAR01-A1-B / K3013CAR01-A1-W / K3013CAR01-A3-BW Touch Switch Wholesales Price Reminding:
We are the direct factory, our mainly users are from the smart mirror manufacturer worldwide, if you has bulk quantity purchasing plan,please kindly contact us for wholesales offer.
2: Important Before You Place An Order of Touch Switch K3013CAR01-A1-B / K3013CAR01-A1-W / K3013CAR01-A3-BW In This Link:
a: We only produce and sell touch switch sensor,do not produce and sell mirror.
b: We will only send you the touch switch sensor, do not send mirror.
c: You will only receive the touch switch, you will not receive any mirror.
d: All the photos with mirror you can see in main photos, in description, in advertisement , in videos,or any other possible places,only with the purpose to show the final performance or functions, after you install our mirror touch switch sensor , on your old/existing mirrors.
e: The most important job is: remove the mercury, to make it transparent, to match our touch switch's touch key, please
contact us for the video, if you has a plan to buy or already receive the goods, because we can not upload large file here.
f: We are the factory, we will make the touch panel work perfectly with our instruction, after your parcel was received.
g: If your quantity is very big, please contact us and we will offer you the best prices or maybe exclusive prices in your province or your country.
3: Touch Switch K3013CAR01-A1-B / K3013CAR01-A1-W / K3013CAR01-A3-BW Working Principle:
K3013CA0R1 series is a LED touch stepless dimming switch for DC12V power supply, which realizes the touch switch control function of LED lamp, light tube, antifogging film and DC12V electrical appliance. K3013CAR01 series mirror touch switch is a product specially designed for bathroom intelligent lamp mirror. The product has reliable performance, convenient installation, sensitive touch and high output power, which is suitable for the control of various mirror lights and other electrical appliances. A backlight is designed on the touch switch board. The backlight and the touch switch are designed as a whole. When the power supply and the switch are connected, the backlight on the switch board is lighted after the power supply is switched on. The backlight is always bright and can be closed by long-touch.
The switch is activated by the touch of a finger, and stopped when you leave your hand. The touch is sensitive, and the illuminated keys can be easily seen even in the dark.
Multiple functional models available,the design of K3013CA series ncludes general switch function, stepless brightness adjustment and different background light colour (touch switch itself) for the users' selection.
4: Basic Function of Touch Switch K3013CAR01-A1-B / K3013CAR01-A1-W / K3013CAR01-A3-BW procduct:
a: The backlight selection of the touch switch (that is, the backlight color of the switch button itself, the switch model
with single-color backlight is suffixed with a single letter, and the backlight color is single and concise; the switch
model with two-color backlight is suffixed with two letters,which are different in different states. Backlight color, easy to distinguish):
B: blue backlight, the backlight of the switch is powered on and turned on is blue, a single backlight color;
W : White backlight, the backlight of the switch is powered on and turned on is white, a single backlight color;
BW: blue and white backlight, after the switch is powered on, the backlight is blue, when it is turned on, it is white
backlight, two-color backlight;
b: Function selection of WS08CB touch switch:
Ordinary touch switch: after the switch is powered on, touch it once to turn on the light, touch it again to turn off the
led light;
Stepless dimming switch: After the switch is powered on, touch it to turn on the light, press and hold the touchpad
when the light is on, you can dim the brightness of the led light, the brightness range is
5%-100% brightness, and touch it again to turn off the light.
c: Function example explaination:
▶K3013CAR01-A1-B :
Short press : Turn on LED and anti-fog film -Turn off and anti-fog film
Long press : continuous adjustment of light brightness
Blue background light colour ( for touch switch itself): Blue for both on or off
▶K3013CAR01-A1-W
Short press : Turn on LED and anti-fog film -Turn off and anti-fog film
Long press : continuous adjustment of light brightness
White background light colour ( for touch switch itself): Blue for both on or off
▶K3013CAR01-A3-BW
Short press : Turn on LED and anti-fog film -Turn off and anti-fog film
Long press : continuous adjustment of light brightness
Blue-white background light colour( for touch switch itself): blue- for turn off, white- for turn on

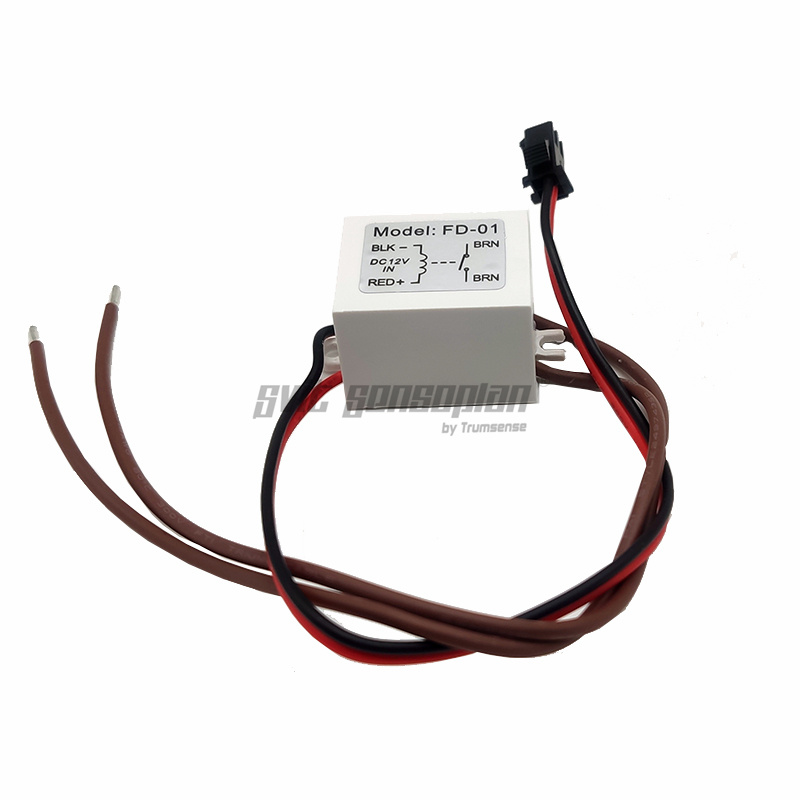

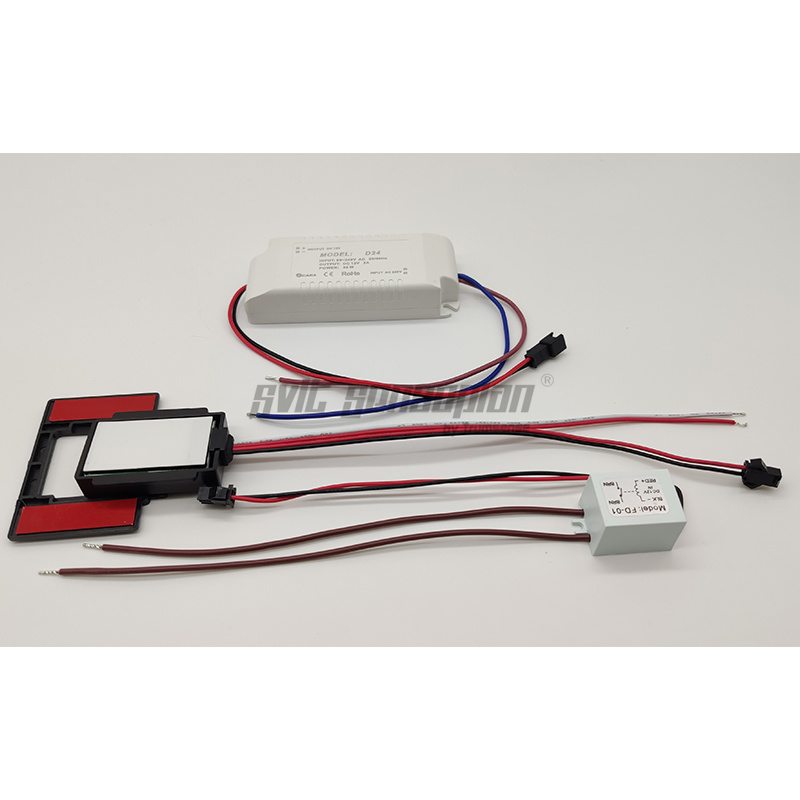

5: Parameters of Touch Switch K3013CAR01-A1-B / K3013CAR01-A1-W / K3013CAR01-A3-BW (power adapter D24 and relay FD0-1 included):
Product name : single-touch switch
Product Type : K3013CA0R1 series
Working voltage : DC12V
Switch current : 3.5A ( Max )
Load power : 48W
Keystroke backlight : blue, or white or blue- white
Touching mode : capacitive inductive touch
Support mirror thickness : 3-5 mm

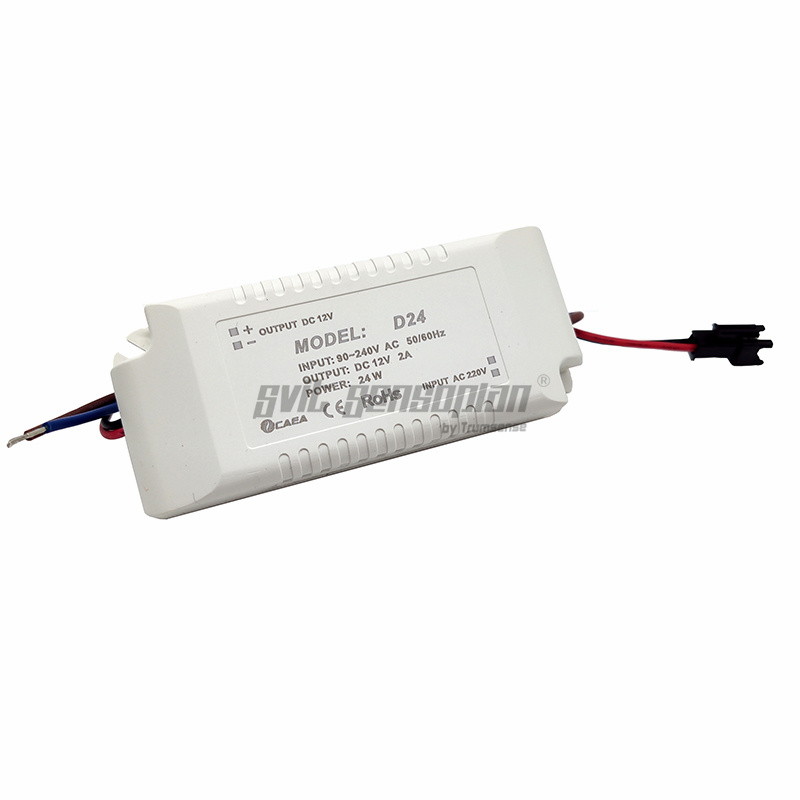

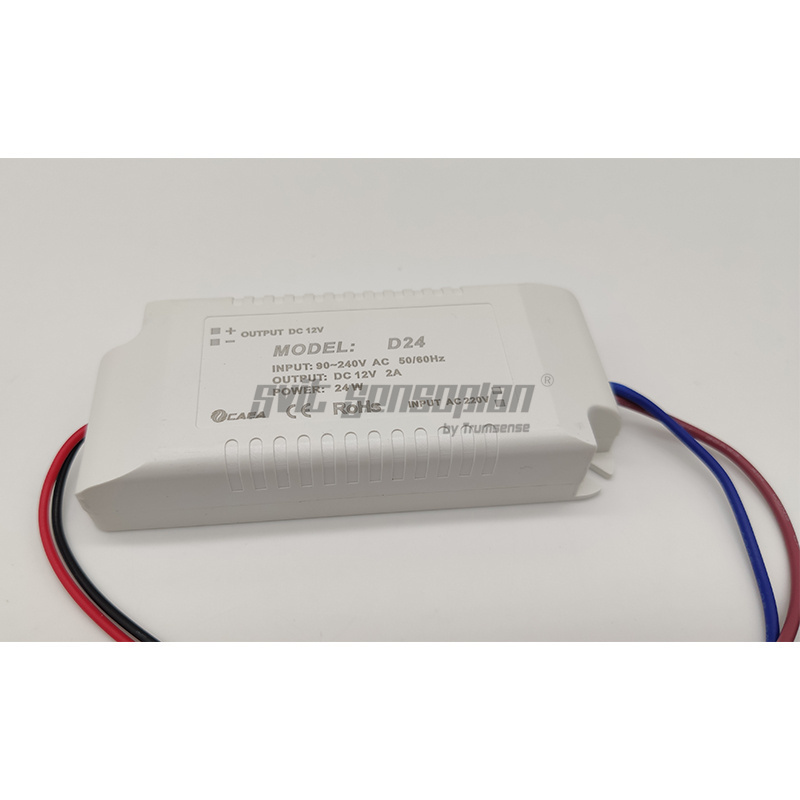

Power Adapter :
Model: D24
Input: AC 90 to 240V 50/60 Hz
Output:DC 12V
Power: 24W
Current: 2A
Size: LxWxH = 100x42x20 mm
6: Installation of Touch Switch K3013CAR01-A1-B / K3013CAR01-A1-W / K3013CAR01-A3-BW :
a: Before the installation ,you need to remove the mercury of your mirror with the laser machine and we will send you
the DWG format file for this laser engraving job, after you receive our touch switch, please kindly do the installation as
below instruction:
b: Wiring Diagram of K3013CAR01-A1-B / K3013CAR01-A1-W / K3013CAR01-A3-BW:

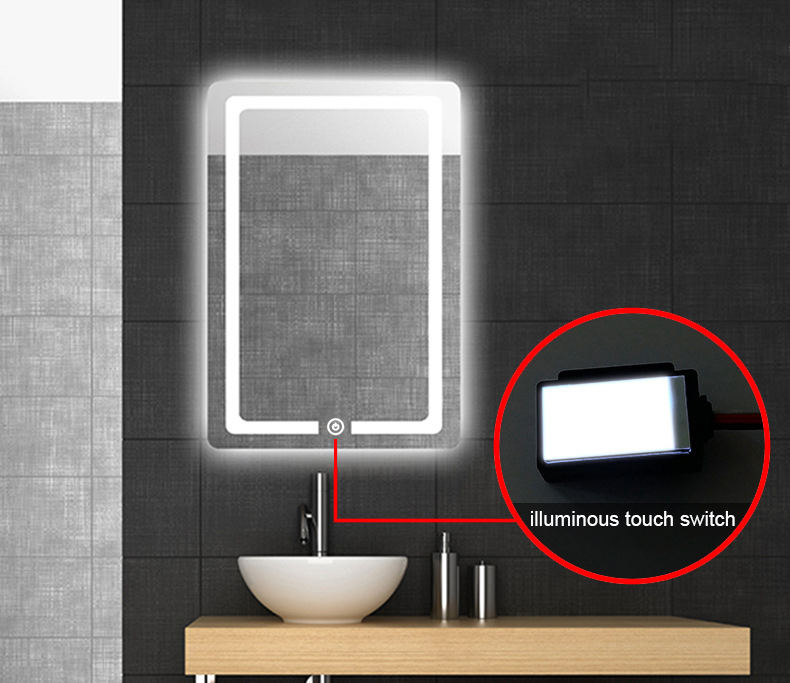

7: Applications of the Touch Switch K3013CAR01-A1-B / K3013CAR01-A1-W / K3013CAR01-A3-BW is Used In Below Fields Widely Where There Is A Led Mirror :
like: Bathroom,Washroom,Bedroom, Bar,Hotel,Beauty Salon,Coffee Shop,Sitting Room,KTV,Homestay,Makeup Room...

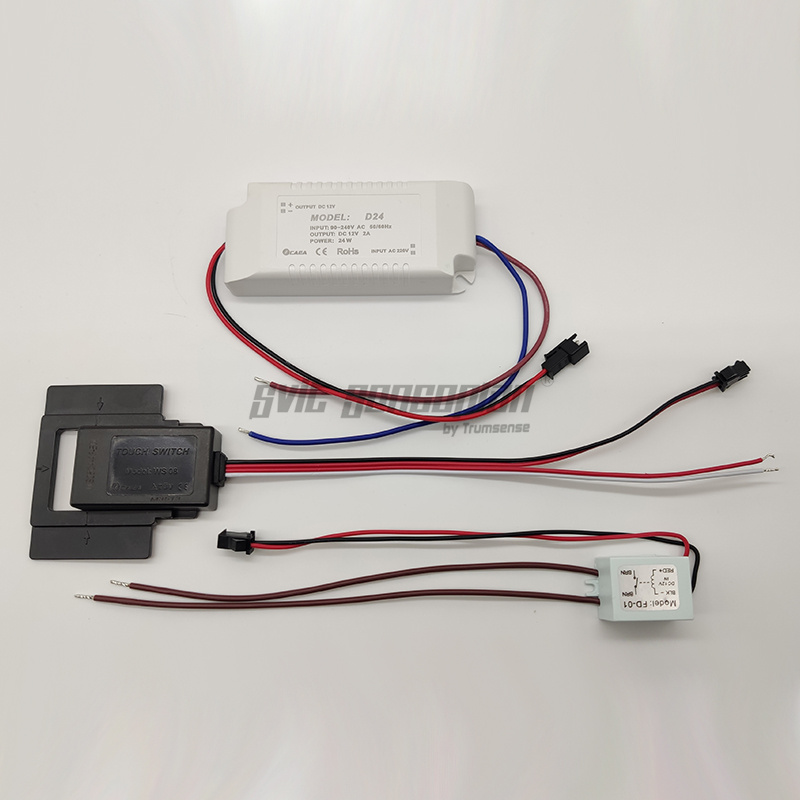

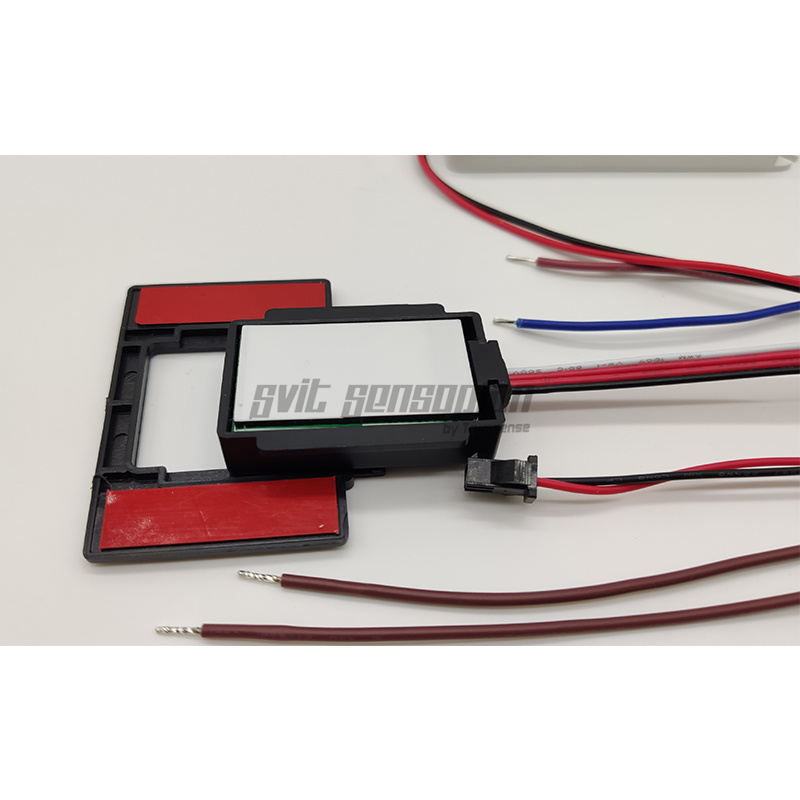

8: You Will Receive The Touch Switch K3013CAR01-A1-B / K3013CAR01-A1-W / K3013CAR01-A3-BW , Totally Same As the Detail Photos Showed Below:
9: Below Are The Products That is Compatible With The Touch Switch K3013CAR01-A1-B / K3013CAR01-A1-W / K3013CAR01-A3-BW, and Below products are all our own designed and products:
a: mist removing film: http://www.aliexpress.com/item/32917242459.html
10: Customized Products Available:
In past years, plenty of smart mirror factory purchased from us and many of the items was customzied, if the above
function can not meet your needs, please conact us to discuss, our enginner will share our suggestion with you.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
