Trumsense K3013CA Touch Switch DC 12V for LED Dimming Mirror of Sitting Room Bathroom KTV Homestay Makeup Room with Adapter

Buying options explaination:

​

★  Trumsense Factory Warehouse Directly Delivery

●   Model: K3013CA-A0-B / K3013CA-A0-W / K3013CA-A2-BW / K3013CA-A1-B / K3013CA-A1-W /

               K3013CA-A3-BW Touch Switch

●  Can Steplessly Adjust the Brightness of the LED Strip

● Used for LED Light Mirror of Bathroom,Washroom,Bedroom, Bar,Hotel,Beauty Salon,Coffee Shop,Sitting    Room,KTV,Homestay,Makeup Room... ... ... ... ... ...





1: K3013CA-A0-B / K3013CA-A0-W / K3013CA-A2-BW / K3013CA-A1-B / K3013CA-A1-W / K3013CA-A3-BWTouch Switch Wholesales Price Reminding:

2: Important Before You Place An Order of Touch Switch WK3013CA-A0-B / K3013CA-A0-W / K3013CA-A2-BW / K3013CA-A1-B / K3013CA-A1-W / K3013CA-A3-BW In This Link:

3: Touch Switch K3013CA-A0-B / K3013CA-A0-W / K3013CA-A2-BW / K3013CA-A1-B / K3013CA-A1-W / K3013CA-A3-BW Working Principle:

K3013CA series is a LED touch stepless dimming switch for DC12V power supply, which realizes the touch switch control function of LED lamp, light tube, antifogging film and DC12V electrical appliance. K3013CA series mirror touch switch is a product specially designed for bathroom intelligent lamp mirror. The product has reliable performance, convenient installation, sensitive touch and high output power, which is suitable for the control of various mirror lights and other electrical appliances. A backlight is designed on the touch switch board. The backlight and the touch switch are designed as a whole. When the power supply and the switch are connected, the backlight on the switch board is lighted after the power supply is switched on. The backlight is always bright and can be closed by long-touch.

The switch is activated by the touch of a finger, and stopped when you leave your hand. The touch is sensitive, and the illuminated keys can be easily seen even in the dark.

Multiple functional models available,the design of K3013CA series ncludes general switch function, stepless brightness adjustment and different background light colour (touch switch itself) for the users' selection.

4: Basic Function of Touch Switch K3013CA-A0-B / K3013CA-A0-W / K3013CA-A2-BW / K3013CA-A1-B / K3013CA-A1-W / K3013CA-A3-BW procduct:

     a: The backlight selection of the touch switch (that is, the backlight color of the switch button itself, the switch model

         with single-color backlight is suffixed with a single letter, and the backlight color is single and concise; the switch

         model with two-color backlight is suffixed with two letters,which are different in different states. Backlight color, easy to distinguish):

B: blue backlight, the backlight of the switch is powered on and turned on is blue, a single backlight color;

W : White backlight, the backlight of the switch is powered on and turned on is white, a single backlight color;

BW: blue and white backlight, after the switch is powered on, the backlight is blue, when it is turned on, it is white

                backlight, two-color backlight;

    b: Function selection of WS08CB touch switch:

Ordinary touch switch: after the switch is powered on, touch it once to turn on the light, touch it again to turn off the

                                            led light;

Stepless dimming switch: After the switch is powered on, touch it to turn on the light, press and hold the touchpad

                                            when the light is on, you can dim the brightness of the led light, the brightness range is

                                             5%-100% brightness, and touch it again to turn off the light.

   c: Function example explaination:

       ▶K3013CA-A0-B :

           Short press : Turn on -Turn off

           Blue background light colour ( for touch switch itself): Blue for both on or off

         Short press :  Turn on -Turn off

          Short press : Turn on -Turn off

          Blue-white background light colour( for touch switch itself): blue- for turn off, white- for turn on

         Short press : Turn on -Turn off

         Long press : continuous adjustment of light brightness

    Product name : single-touch switch

    Product Type : K3013CA series

    Working voltage : DC12V

    Switch current : 3.5A ( Max )

    Load power : 48W

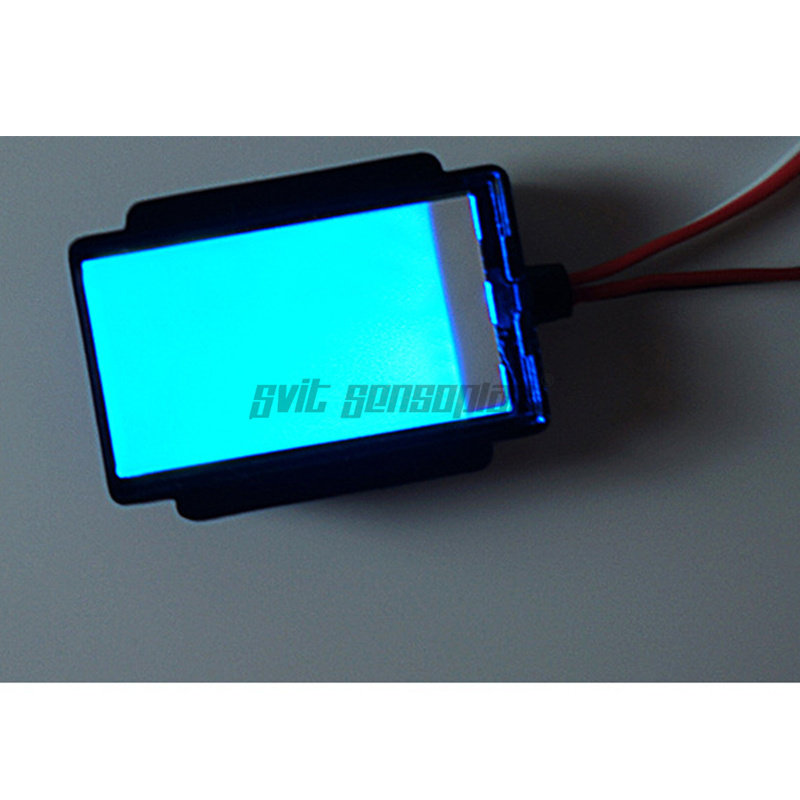

    Keystroke backlight : blue, or white or blue- white

    Touching mode : capacitive inductive touch

    Support mirror thickness : 3-5 mm

    Power Adapter :

    Input: AC 90 to 240V 50/60 Hz

    Output:DC 12V

    Power: 12W

    Current: 1A

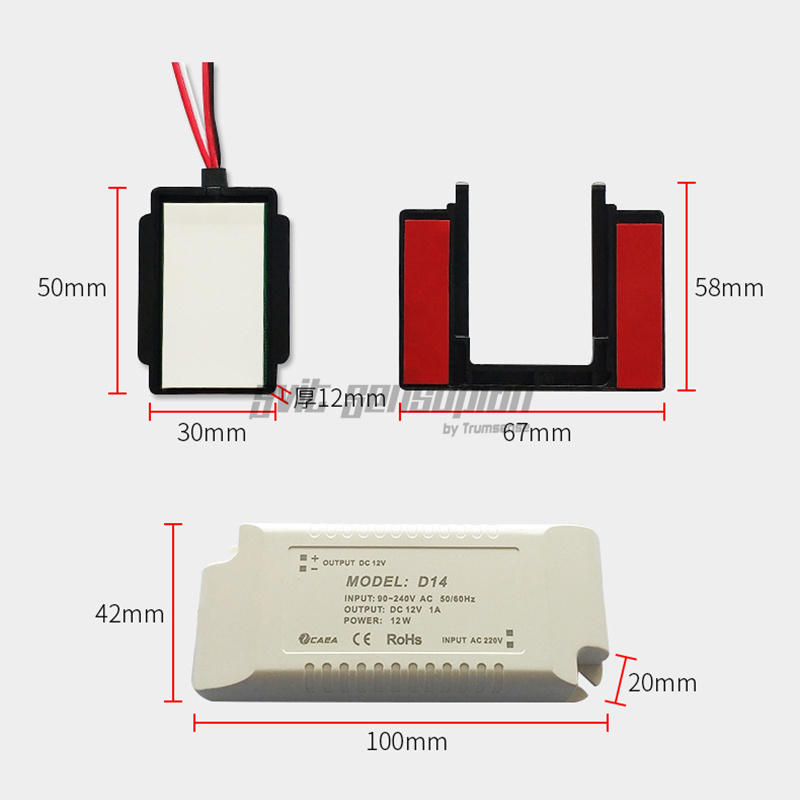

    Size: LxWxH = 100x42x20 mm

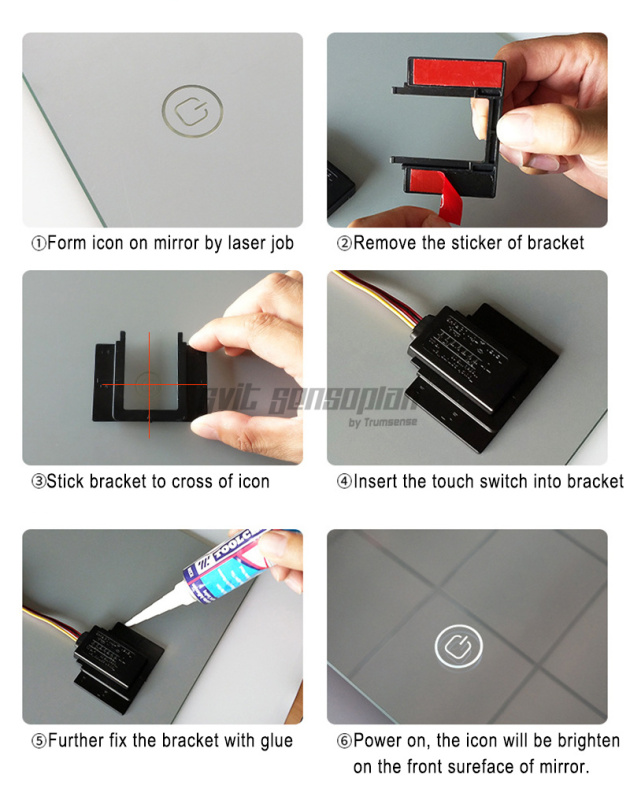

6: Installation of Touch Switch K3013CA-A0-B / K3013CA-A0-W / K3013CA-A2-BW / K3013CA-A1-B / K3013CA-A1-W / K3013CA-A3-BW :

     a: Before the installation ,you need to remove the mercury of your mirror with the laser machine and we will send you the DWG format file for this laser engraving job, after you receive our touch switch, please kindly do the installation as below instruction:

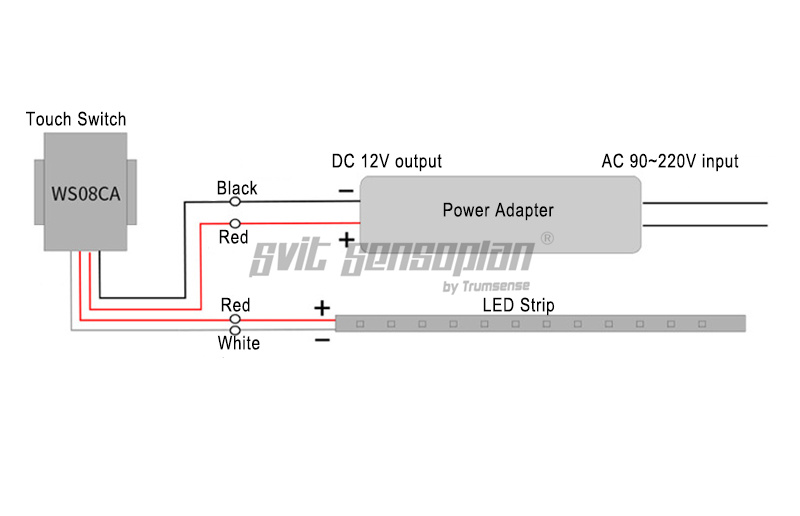

    b: Wiring Diagram of K3013CA-A0-B / K3013CA-A0-W / K3013CA-A2-BW / K3013CA-A1-B / K3013CA-A1-W / K3013CA-A3-BW:

​

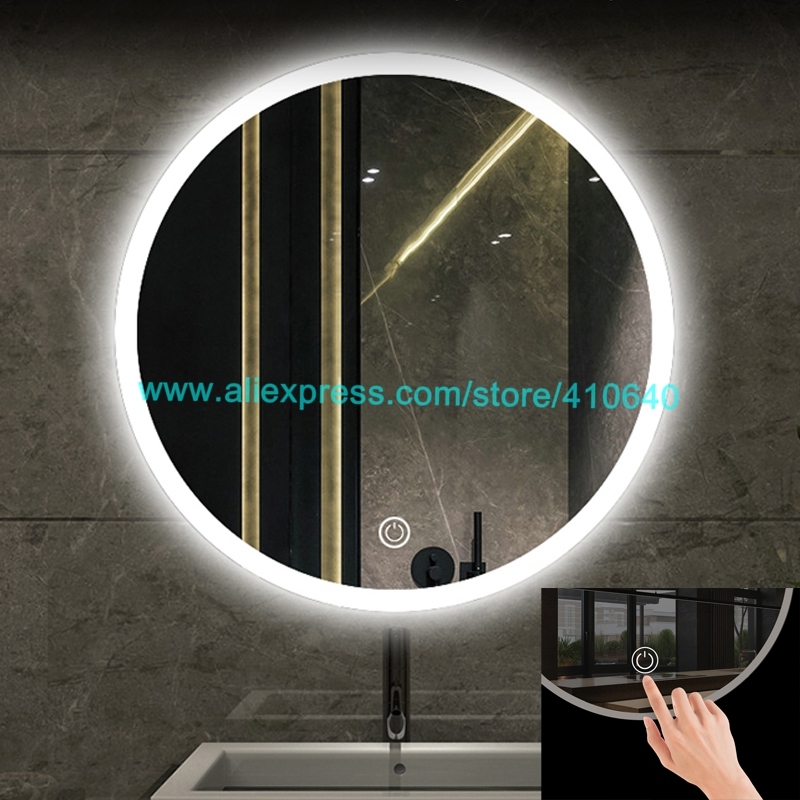

7: Applications of the Touch Switch K3013CA-A0-B / K3013CA-A0-W / K3013CA-A2-BW / K3013CA-A1-B / K3013CA-A1-W / K3013CA-A3-BW is Used In Below Fields Widely Where There Is A Led Mirror :

like: Bathroom,Washroom,Bedroom, Bar,Hotel,Beauty Salon,Coffee Shop,Sitting Room,KTV,Homestay,Makeup Room...

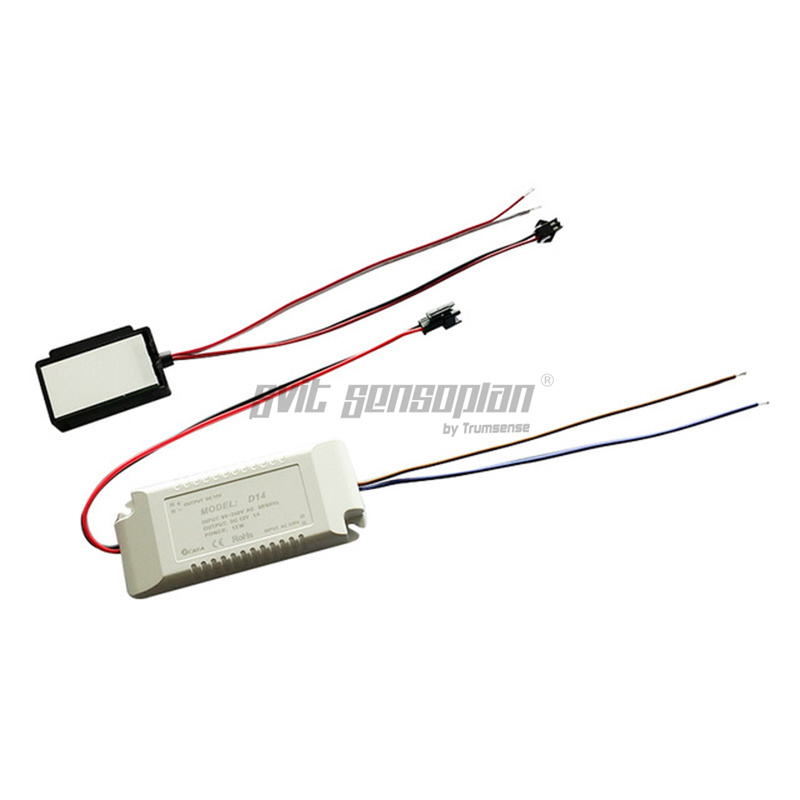

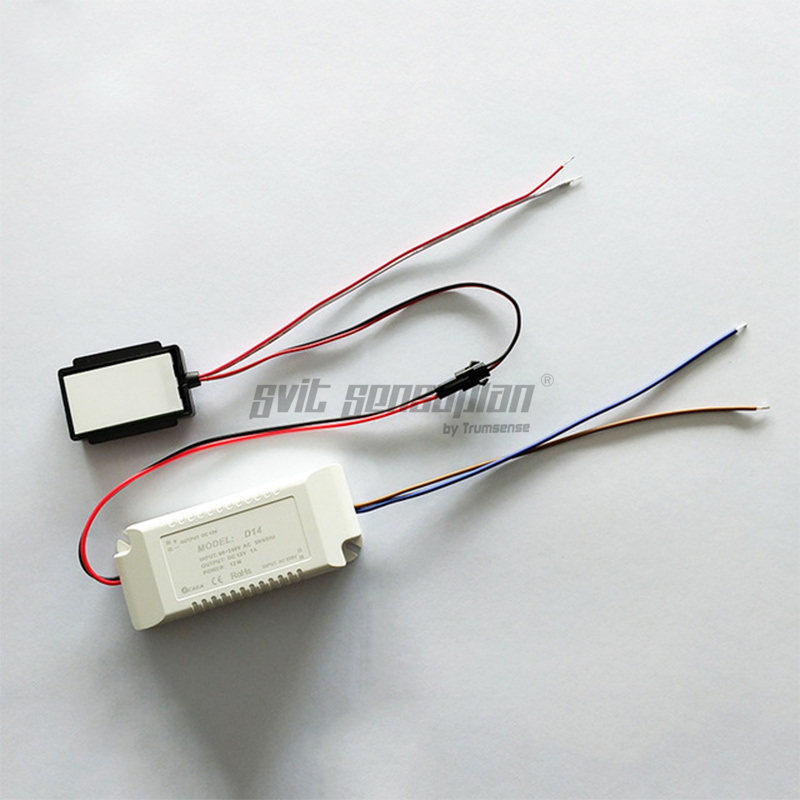

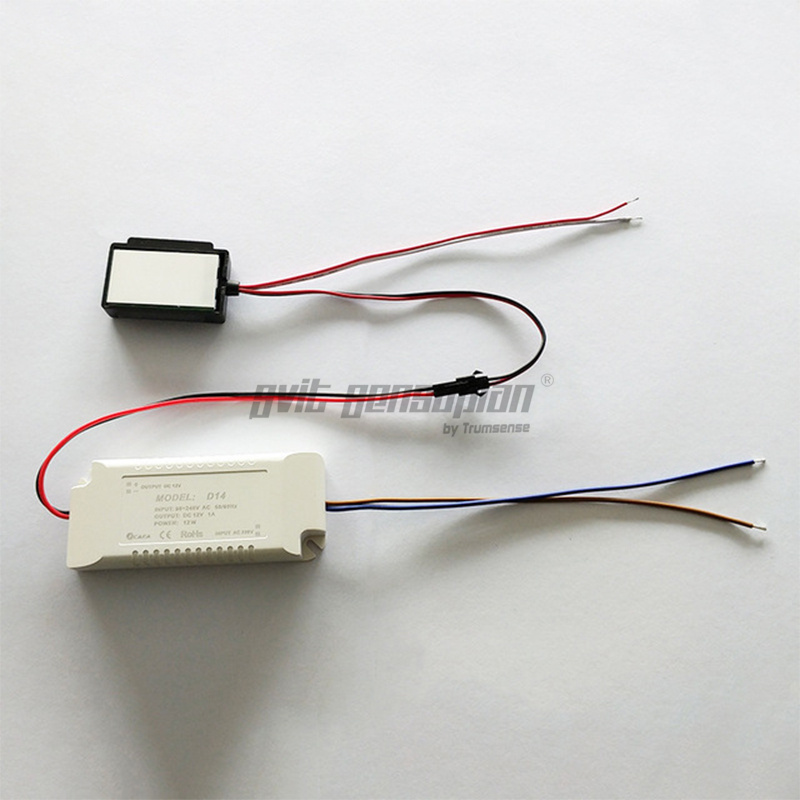

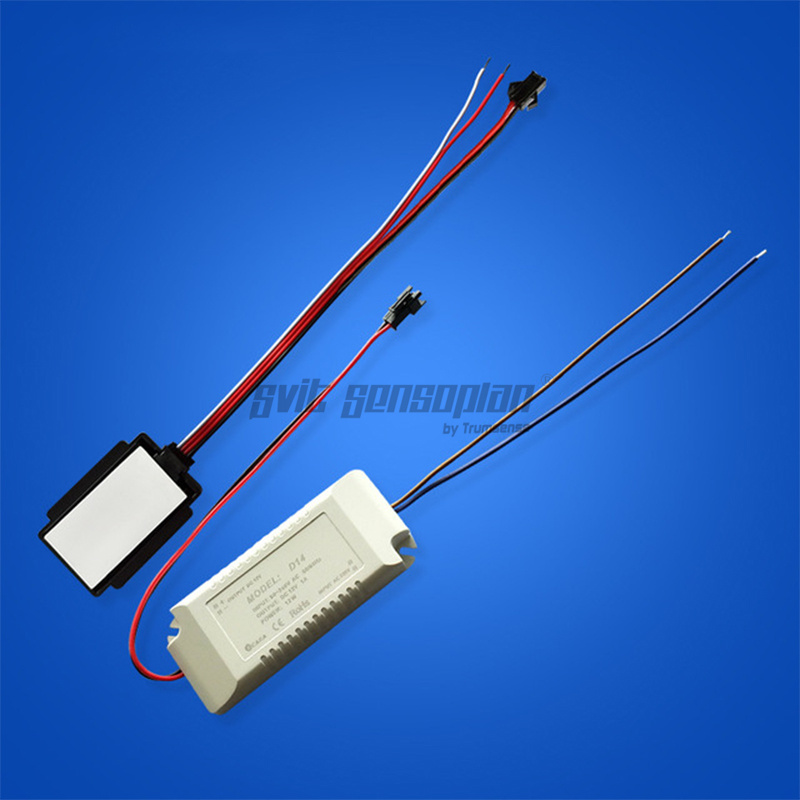

8: You Will Receive The Touch Switch K3013CA-A0-B / K3013CA-A0-W / K3013CA-A2-BW / K3013CA-A1-B / K3013CA-A1-W / K3013CA-A3-BW , Totally Same As the Detail Photos Showed Below:

9:  Below Are The Products That is Compatible With The Touch Switch WS08D1-S3A-BW / WS08D1-S4-BW / WS08D1-S5-BW / WS08D1-S5A-BW, and Below products are all our own designed and products:

​

10: Customized Products Available:

       In past years, plenty of smart mirror factory purchased from us and many of the items was customzied, if the above

       function can not meet your needs, please conact us to discuss, our enginner will share our suggestion with you.
