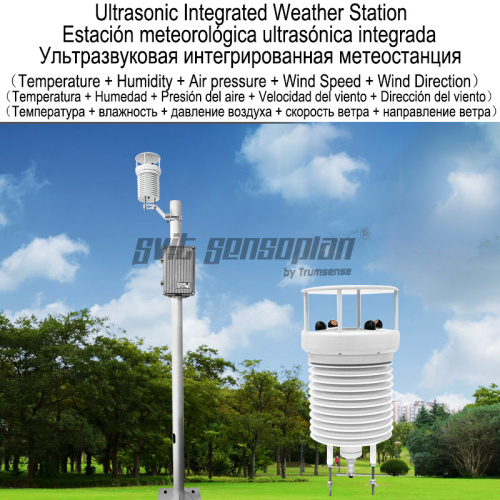

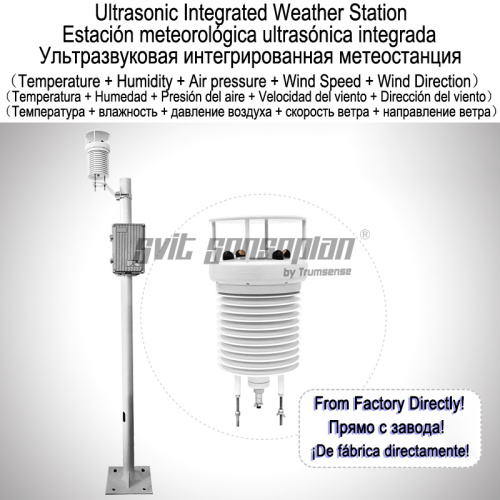

Ultrasonic integrated automatic weather station system is a unattended meteorological acquisition system that integrates meteorological data acquisition, storage, transmission and management. It is widely used in industrial and agricultural production, tourism, urban environmental monitoring and other professional fields.
Basic parameters :
Power supply : AC220V to DC12V adapter power supply, optional solar or DC24V power supply ;
Internal storage : 4Mbit ( more than ten thousand data, scalable ) ;
Record interval : 1min ~ 240min continuous adjustable ;
Communication : RS232 ( standard ), RS485, USB, RJ45, GPRS, WIFI ;
Working environment temperature : − 20 °C – 60 °C ; humidity 5 % RH – 95 % RH ( no condensation ) ;
Equipment power consumption : ≤ 1W ( conventional five elements configuration does not contain GPRS, with GPRS / WIFI / RJ45power consumption is2W ) ;
Screen resolution : 192 * 64, with backlight ;
Sampler size : 240 * 175 * 89 mm ;
installation part ( selection ) : solar power supply system, weather station bracket, metal protection box, outdoor LED screen, GPRS wireless communication, etc.
The ultrasonic integrated automatic weather station system consists of three parts : meteorological sensor, meteorological data acquisition instrument and computer meteorological software. Can simultaneously monitor atmospheric temperature, atmospheric humidity, wind speed, wind direction, pressure and many other meteorological elements ;
Ultrasonic integrated sensor a full digital detection, high precision sensor, high strength structure design can be accurately detected in harsh climate environment ;
Meteorological data acquisition instrument has meteorological data acquisition, real-time clock, meteorological data timing storage, parameter setting, friendly man-machine interface and standard communication functions.
The system built-in large capacity FLASH memory chip can store more than 1 year of meteorological data ;A variety of communication interfaces ( RS232 / RS485 / USB ) can easily establish wired communication connection with the computer. If GPRS wireless communication module is selected, it can also realize remote wireless connection between meteorological equipment and computer monitoring center.
● 5 basic sensors, with the maximum support of 16 sensors, can expand the types and quantities of sensors as needed ;
● Low power processor, data acquisition, storage, communication functions, high integration ;
● Support 0.5 ~ 3.5 meters bracket installation, can be selected according to the need to install accessories ;
● 192 * 64 full-lattice backlight LCD can watch the monitoring data in real time with clear display and comprehensive content ;
● Support solar energy, electricity and other power supply ;
● Standard RS232 interface, a variety of communication interface ( RS485 / RJ45 / WIFI / GPRS ) can be selected as required ;
● Meteorological equipment waterproof design, suitable for various harsh environments ;
● Local observation network can be used alone or quickly established ;
● The data can be stored offline, and the data acquisition cycle can be set according to the observation needs ;
● Support single version of weather station software and Internet of things cloud platform software, powerful data query, statistics, export and other functions ;
● Ultrasonic principle of wind speed, wind direction sensor, no mechanical moving parts, longer life, higher accuracy ;
Standard configuration :
Acquisition instrument : Metal shell meteorological data acquisition instrument ;
Sensor : ultrasonic wind speed, wind direction, air temperature and humidity, atmospheric pressure - integrated sensor ;
Communication mode : RS232 wired communication ;
Power supply system : AC220V power supply ;
Software : installation of CD mode ;
Bracket : 2 m vertical rod bracket ;
Accessories : various adapter cables ;
Customized configuration :
Acquisition instrument : Metal shell meteorological data acquisition instrument ;
Sensor : ultrasonic integrated sensor ( if need to add other sensors, can increase according to user needs ) ;
Communication : RS232 1 RS485 1 RJ45 wired communication / GPRS wireless communication ;
Power supply system : AC220V power supply / solar power supply system ( can be configured according to user needs ) ;
Software : installation of CD mode ;
Other parts : vertical pole bracket, a variety of adaptation cable ;
In total , there are 3 networking modes of meteorological system,that fully meets the networking requirements under different application environments.
A: Wired networking mode :
RS232 is used for one-to-one communication between automatic weather station and meteorological workstation computer, and the effective distance is 20 m ; or one-to-many communication via RS485, the theoretical transmission distance is 800 meters.

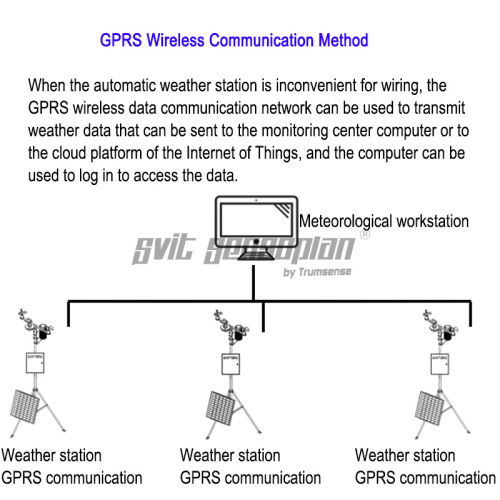

B: GPRS wireless communication method:
When the automatic weather station is inconvenient for wiring, the GPRS wireless data communication network can be used to transmit weather data. Weather station data can be sent to the monitoring center computer or to the cloud platform of the Internet of Things, and the computer can be used to log in to access the data.
C: Ethernet ( RJ45 / WIFI ) access :
Through this way, the weather station in the same LAN can be connected to the central computer, or the Ethernet network at the installation site of the weather station can connect to the Internet. The data can be sent to the cloud platform of the Internet of Things, and the data can be accessed by computer.
