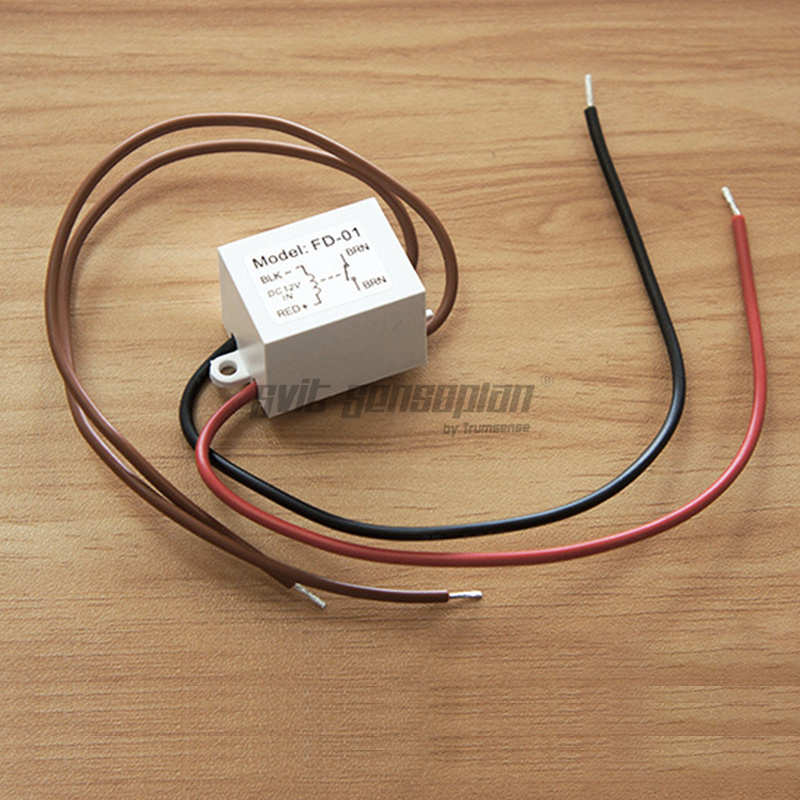

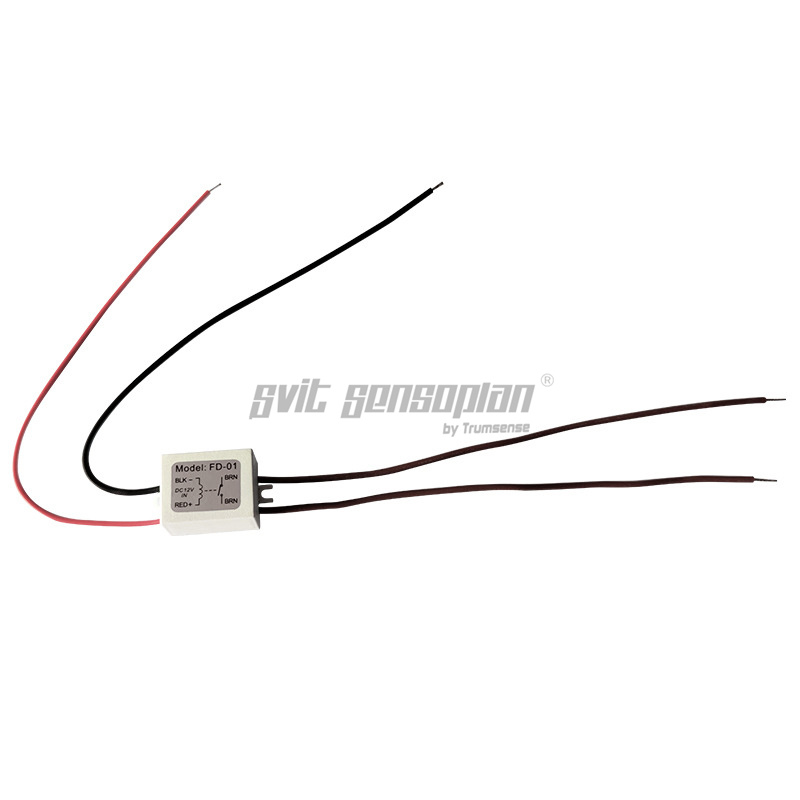

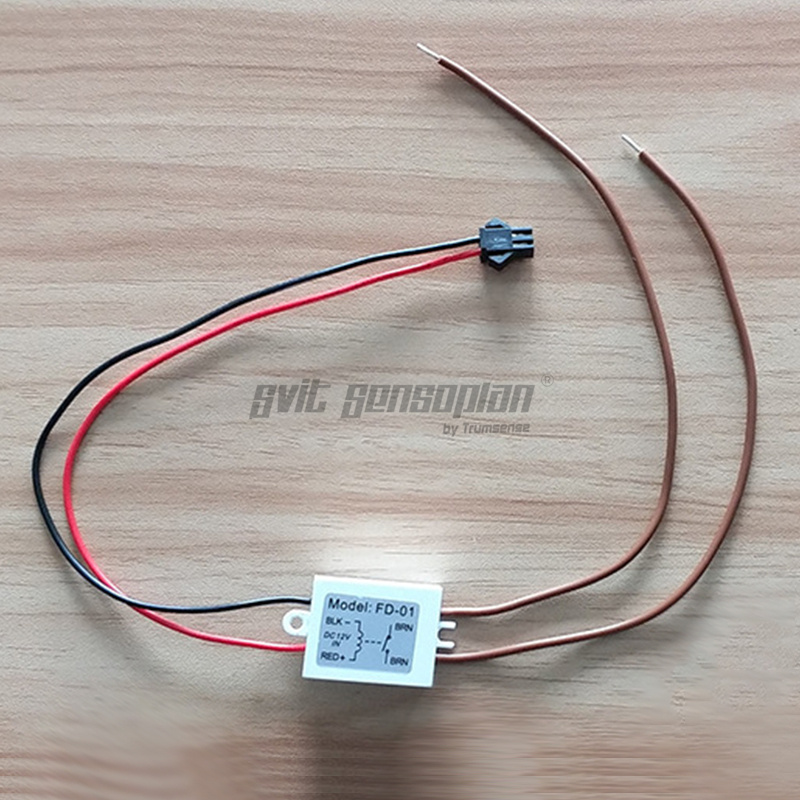

DC 12V Anti-Fog Relay for Lamp Mirror
Mist Removing Film Controller
Mini Relay for Mirror Defogging Film on off Controller
DC12V relay is mainly used in bathroom products to realize the function of low voltage DC control high voltage AC mains switch. Such as the anti-fog film switch control of the mains lighting or bathroom mirror. It can also be used in other occasions where low voltage DC is needed to control high voltage AC. It has the advantages of small size, large switch load, and convenient wiring. Applicable scene: ① When the low-voltage 12V touch switch and touch screen are connected to the high-voltage 220V anti-fog film,an external relay is required; at this time, the constant voltage driving power supply only needs to load the power of the LED lamp belt. ② The low-voltage 12V touch switch is connected to the LED light belt and the low-voltage 12V anti-fog film. When the total power of the light belt and anti-fog film exceeds the load power of the touch switch,an external relay is required; at this time, the constant-voltage drive power supply needs to load the LED light belt at the same time And anti-fog film power. ③ When the touch screen K3014AF and K3015CBF are connected to the low-voltage 12V anti-fog film,an external relay is required; at this time, the constant voltage drive power needs to load the power of the lamp belt and the anti-fog film at the same time.

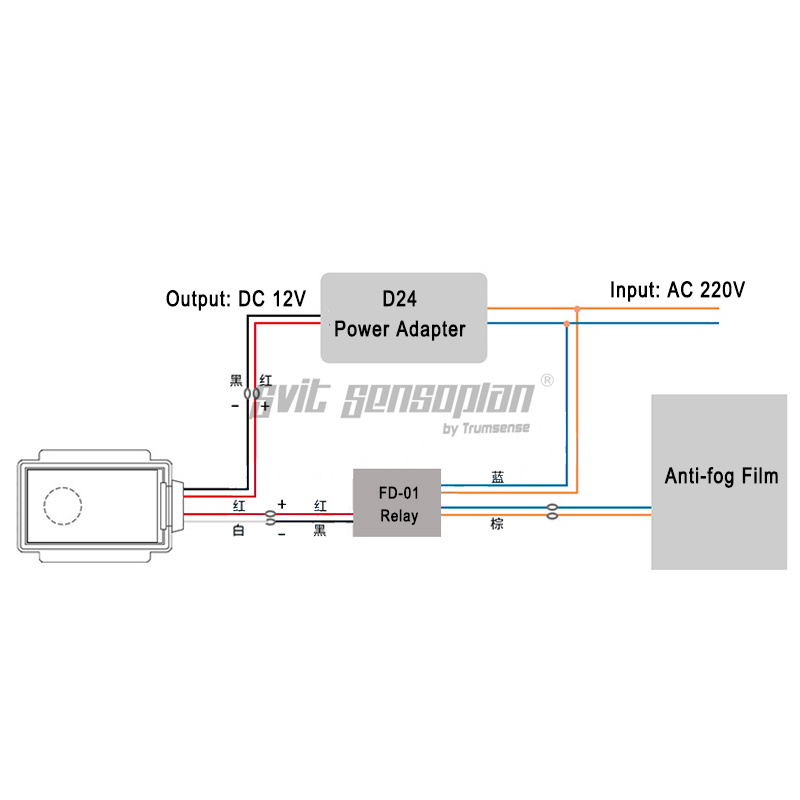

Application examples 01::
Application examples 02:
Basic Parameter

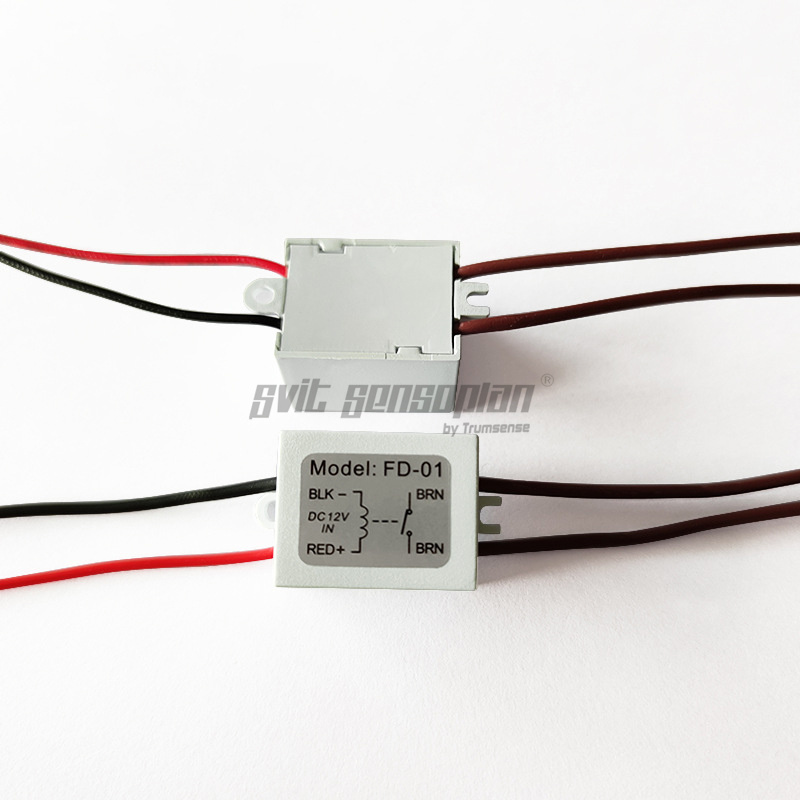

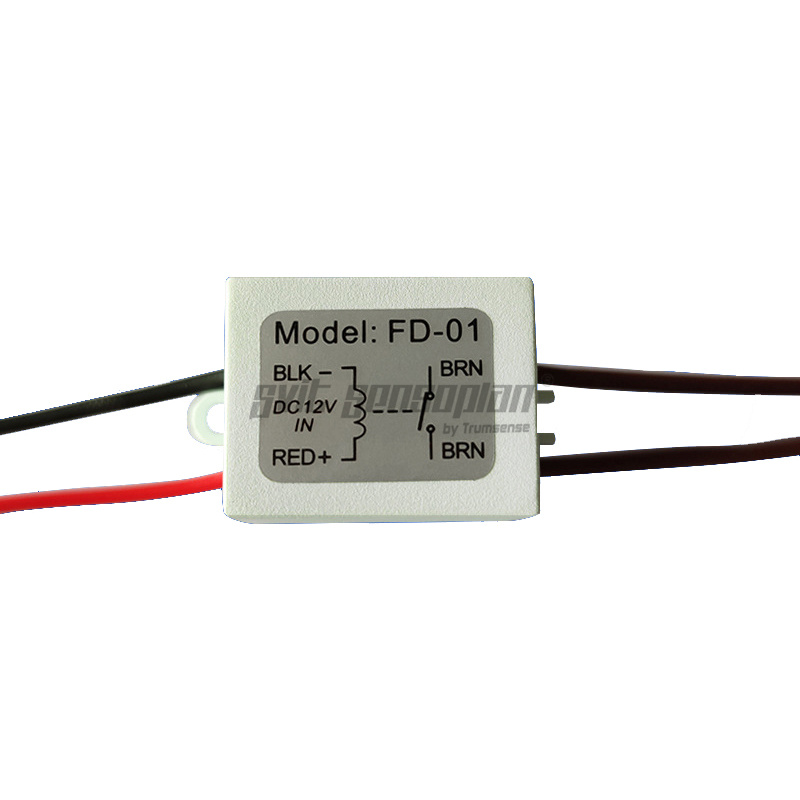

Product model:FD-01
Product name:DC12V relay
Rated voltage:DC12V
Coil DC resistance:320ohm
Contact load:10A 120V AC 5A 250V AC 5A 28V DC
Pull-in voltage:DC 8V
Release voltage:DC 1.8V

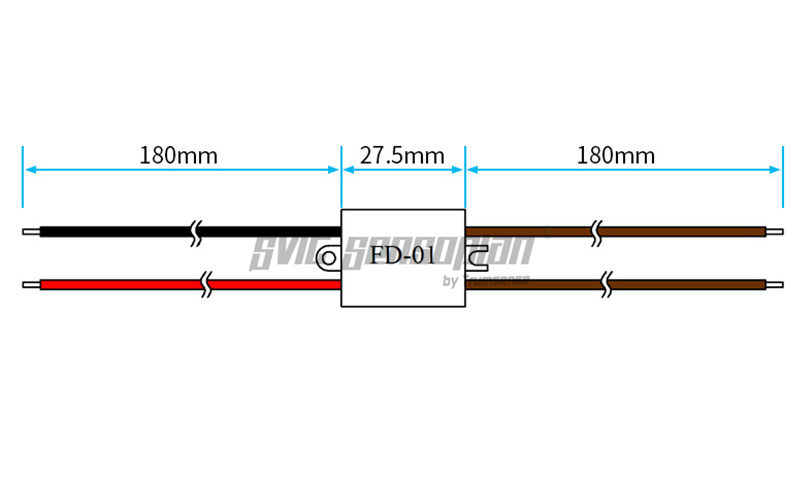

Dimensions:27.5* 21.5* 19mm
Matching Products:
1:DC 12V Bathroom Light Mirror Touch Switch LED Mirror Touch Control For LED Mirror of Furniture Cabinet Cupboard Hotel Bathroom:
Order link:http://www.aliexpress.com/item/32660063938.html
2:Anti Mist Dual Key LED Mirror Dimmer Touch Switch Blue White Back Light Mirror Touch Sensor Colour Change
Order link:http://www.aliexpress.com/item/32906612564.html
3:Double Key LED Mirror Touch Sensor Switch to Remove Mist Adjust Brightness and Colour of Light Blue White Back Light
Order link:http://www.aliexpress.com/item/32961645054.html
4:THREE KEY LED Mirror Touch Sensor Switch with Optional Functions of Brightness Adjustment or Bluetooth or Mist Removing:
Order link:http://www.aliexpress.com/item/32923035225.html
5:K3014AF Light Mirror Switch Touch Switch with Time Temperature Display On Mirror Surface for Washroom WITH ANTI-FOG Function
Order link:http://www.aliexpress.com/item/32907177053.html
6: K3015CBF Touch Switch Panel Time Date Temperature Display Anti Mist FOR Washroom Bathroom Cabinet LED Light Mirror Refurbishment:
Order link:http://www.aliexpress.com/item/32908778833.html
7: Antifog Film For Bathroom Mirror Electric Heating Mirror Film Bathroom Mirror Film to Remove the Mist Various Size is Available:
Order link:http://www.aliexpress.com/item/32917242459.html
You will receive the following item, same as the detail photos show below:
