Description
Our non-contact liquid level sensor designed by our company can only be installed in non-metallic containers or pipes such as plastic, glass and ceramics. It is installed on the outer wall side of the container and does not need to be in direct contact with the liquid to be tested. It will not be corroded by strong acid and alkali liquid, nor by scale. After installation, depending on the thickness of the container, if you need to adjust the detection sensitivity of the sensor, you can open the QC label, fix the sensor on the container or pipe to be tested, adjust the liquid level to the position that needs to be sensed, and then press and hold the small circle. Press the button inside the hole for about 3 seconds until the blue status indicator flashes. At this time, release the button, and the liquid level will be sensed when it is lifted to the position.
Feature: 1: level status LED light display mode, 2: pure electronic circuit structure, non-mechanical working mode, stable performance and longevity, 3: high stability, high sensitivity, good anti-interference, free from external electromagnetic interference, suitable for complex environments, 4: strong compatibility, penetrate a variety of non-metallic materials such as plastic, glass, ceramics and other containers, the sensing distance can reach 10mm; suitable for water, alcohol, acid, alkali and other dielectric properties of liquid and powdery small particles detection It is suitable for non-metallic containers such as plastics, glass, ceramics and the outer wall of containers or pipes. It can be used with different mounting brackets for different occasions. 5: open electrode output, suitable for various control circuits, maximum 300mA output current.

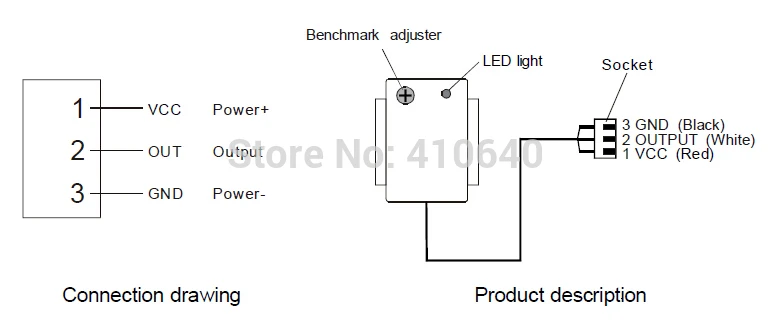

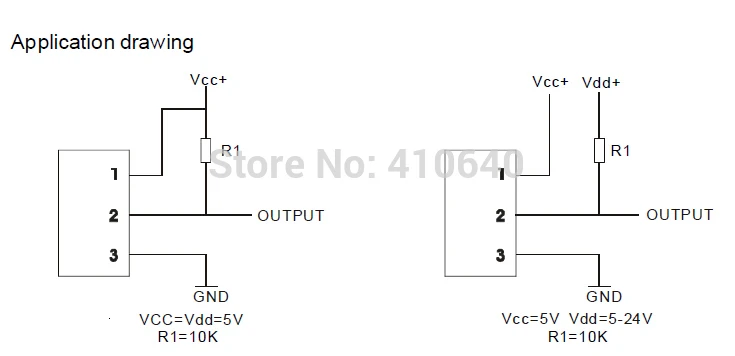

Applications: It is suitable for non-metallic containers or pipes such as plastics, glass, and ceramics. The application is as following: Household appliances Smart bathroom Water purification equipment Water treatment equipment Medical equipment Food Machinery Chemical Equipment other devices . . . . . . Wiring and sensitivity adjustment:

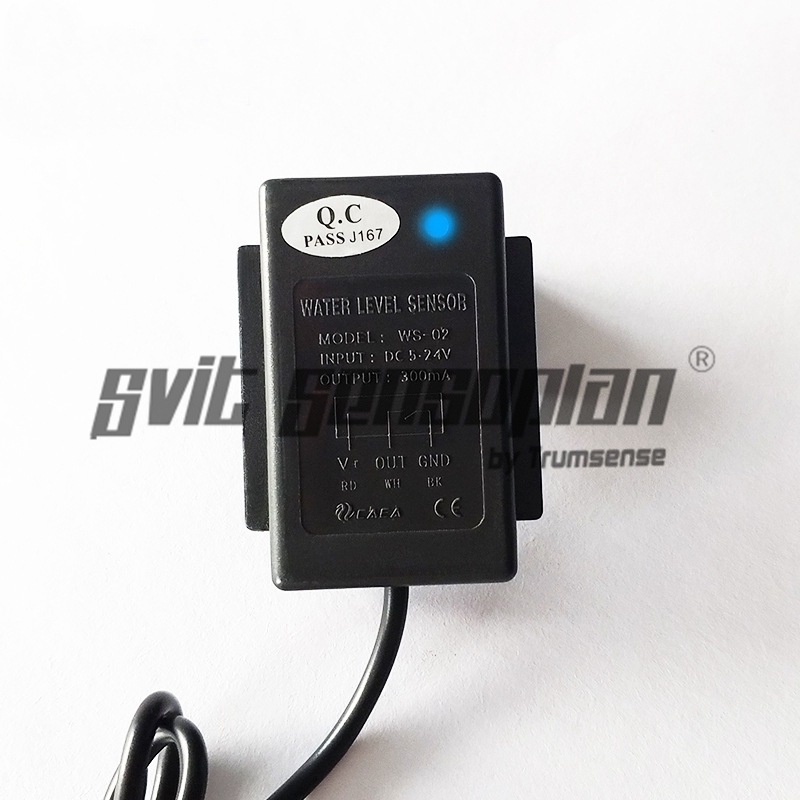

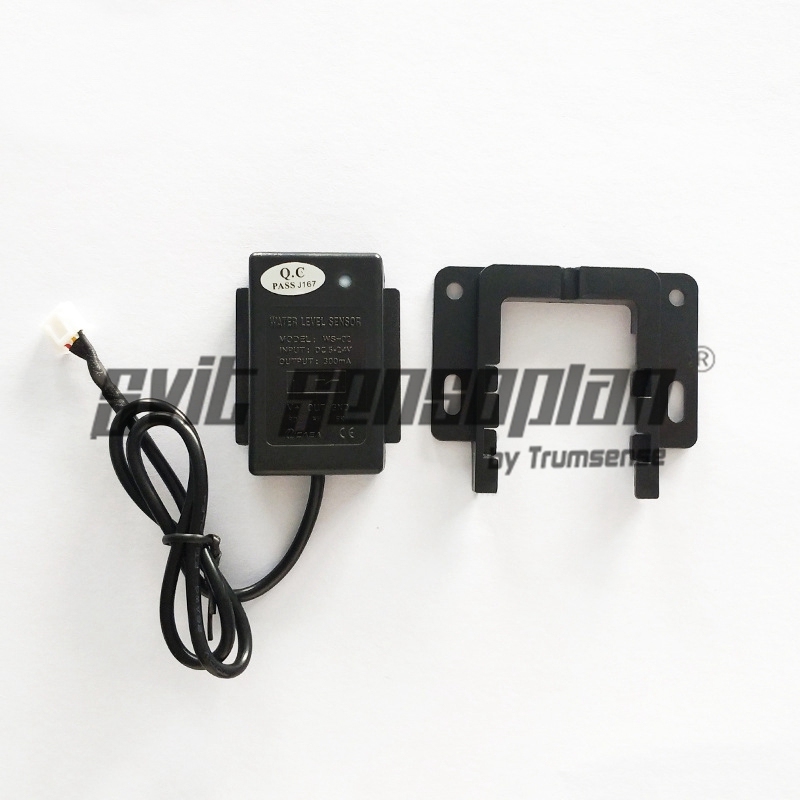

Order photo show:
What container suitable for?
It is suitable for non-metallic containers or pipes such as plastics, glass, and ceramics. The application is as following: Household appliances Smart bathroom Water purification equipment Water treatment equipment Medical equipment Food Machinery Chemical Equipment other devices . . . . . .
Any liquid type demand?
This non-contact liquid level sensor is used in a wide range of applications. It is suitable for the detection of liquids such as water, alcohol, acids, alkalis and other small liquid particles. Since it does not have to be in direct contact with the liquid to be tested, it will not It is corroded by strong acid and alkali liquid and is not affected by scale .
Its sensitivity adjustable?
Yes,fix the sensor on the container or pipe to be tested, adjust the liquid level to the position that needs to be sensed, then press and hold the button inside the small round hole for about 3 seconds until the blue status indicator flashes. The button can be pressed, and the liquid level can be sensed after the liquid level rises and falls to the position.
