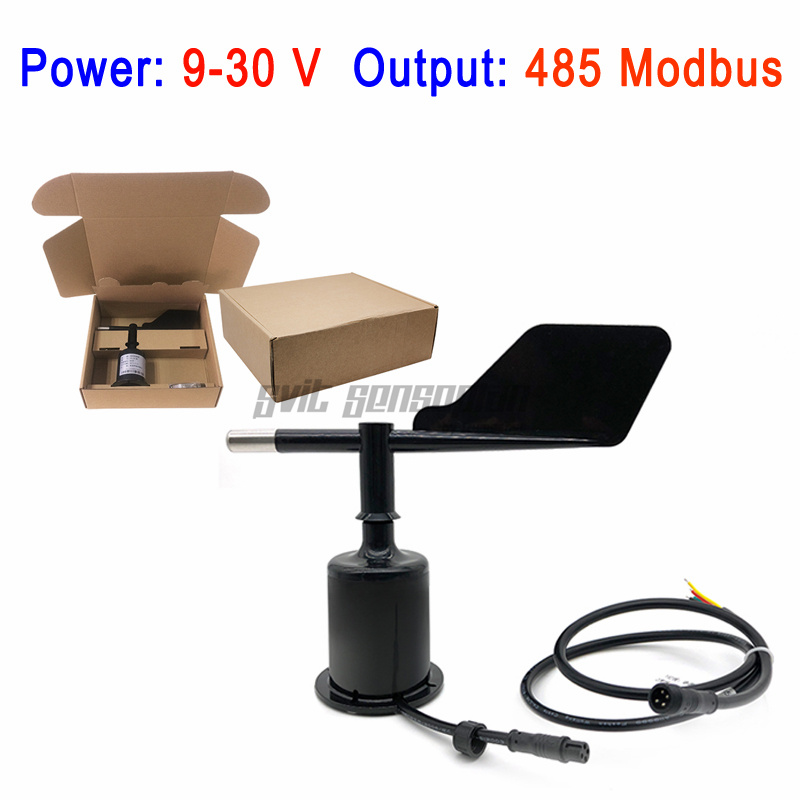

Trumsense STTWD930485 9 to 30 V Power RS485 Modbus Output Wind Direction Sensor Compliant with the CIMO Guide of WMO With High Precision and Strong Lightning Resistance

Item No.: 00335
Good dynamic characteristics, good linearity, high precision, high sensitivity, high wind resistance, wide measuring range, good interchangeability, long circuit life, reliable operation, strong anti-lightning interference capability, etc.
Description Contact Us for Wholesales Bottom Price Review
Description
The wind speed sensor adopts the traditional three-wind cup structure. The wind cup is made of imported ABS material with high strength and small starting wind speed. The precision signal processing unit can output various signals according to user requirements. This product has the advantages of large measuring range, good linearity, convenient observation, stable and reliable.

The wind direction sensor is a professional meteorological instrument for measuring the horizontal wind direction of the wind. The interior uses a precision angle sensor and uses a low inertia ABS wind vane to respond to the wind direction with good dynamic characteristics. When the wind direction changes, the empennage rotates through the shaft to drive the potentiometer shaft to rotate, thereby generating a varying resistance signal output at the active end of the potentiometer.


1: Trumsense Wind Direction Sensor  Wholesales Price Reminding:

     We are the direct factory, our mainly users are from the weather monitoring equipment manufacturer worldwide, if you has bulk quantity purchasing plan,please kindly contact us for wholesales offer.




2: Elite Features of New Generation Trumsense Wind Direction Sensor:

1: Good dynamic characteristics, good linearity, high precision and high sensitivity
2: Strong wind resistance
3: Wide measuring range
4: Good interchangeability
5: Long circuit life
6: Reliable work
7: A variety of excellent performances such as strong anti-lightning interference
8: Compliant with the WMO World Meteorological Organization (CIMO Guide)





3:  Basic Applications of  New Generation Trumsense Wind  Direction Sensor:

widely used in meteorology, oceans, environment, airports, ports, laboratories, industry and agriculture and transportation.






4: Recent Order Photo Show of Wind  Direction Sensor:





















5: Mechancial Size of Wind Direction Sensor:



6: Trumsense Wind  Speed or Direction Calculation Formula :



Wind Speed Sensor Calculation Formula:
1: Impulsive(0 to 5V):W =0, (f = 0),
 W =0.3+0.0877×ff≠ 0
    W: indicating value of wind speedm/s
    f:    pulse signal frequency

2: Current mode (4~20mA):
    W = (i4)×45/16
     W: indicating value of wind speedm/s

i:   current type4-20mA))

3: Voltage type(0~5V)
    W =V/5×45
     Windicating value of wind speedm/s
     :  voltage signal0-5V))


4: Voltage type(0~2.5V)
    W =V/2.5×45
    Windicating value of wind speedm/s
    Vvoltage signal0-2.5V



Wind Direction Sensor Calculation Formula:
1: Voltage type (05V output)
    D = 360°×V / 5
    D: indicating value of wind direction
    V: output-voltage(V))

2: Current type ( 420mA output )
    D=360°× ( I-4 ) / 16
    D indicating value of wind direction
    I: output-current (mA))





7: Wind Speed Sensor Parameter /  Wiring / Protocol:

Wind Speed Sensor Parameter:
Measurement range:

045m/s
                    070m/s
Accuracy: ±(0.3+0.03V)m/sV: wind speed
Resolution: 0.1m/s
Staring wind speed: ≤0.5m/s
Power supply model:

DC 5V
                  DC 12V
                  DC 24V
                  Other

Out-put
Pulse05V
Current420mA
Voltage05V
Voltage15V
Voltage02.5V
RS232 ( ASCII   ModBus)
RS485 ( ASCII   ModBus)
Relay
Other
Instrument line lengthStandard2.5m    Other
Load capacityCurrent mode impedance≤600Ω
                          Voltage mode impedance≥1KΩ
Operating environmentTemperature-40℃50℃
Humidity≤100%RH
Defend gradeIP45
Cable gradeNominal voltage300V
Temperature grade80℃
Produce weight130 g
power dissipation50 mW


Wind Speed Sensor Wiring:



Wind Speed Sensor Mechancial Size:





Wind Direction Sensor Parameter:
Measurement range: 0360°
Accuracy: ±3°
Staring wind speed≤0.5m/s
Power supply mode

DC 5V
         DC 12V
         DC 24V
         Other
Out-put:
           PulsePulse signal

Current420mA
         Voltage05V
          RS232
          RS485
          TTL Level: (□frequency  Pulse width
          Other
Instrument line lengthStandard2.5m      Other


Wind Direction Sensor Wiring:



Wind Direction Sensor Mechancial  Size:


 8: Wind Direction Sensor Installation Guide:






9: Wiring Example of Wind Direction Sensor,based on Current output, Voltage Output, Pulse, RS485 and RS232:




10:
Customized Products Available:

       In past years, plenty of users purchased from us and many of the items was customzied, if the above function can not meet your needs, please conact us to discuss, our enginner will share our suggestion with you. Because we has mature team of design, develpment and after-sales.






china smart sensor, trumsense, trumsense precision technology,svitsensoplan,
svitsensoplan by trumsense,smarter sensor,smarter sensor by kaishengsi, Wind Speed Sensor,Wind Speed Sensors,Wind Speed Transducer,anemoscope,anemometer,air meter,
airometer,wind sensor,air sensor,wind direction sensor,anemoscope,wind indicator,dogvane,Wind Speed Sensor 360 Degree,Wind Speed Sensor 360 Deg,Voltage Output ,Anemometer,Wind direction Sensor,Wind direction Sensors,Wind direction Transducer,485 Type Wind Speed Sensor,RS485 wind sensor,RS485 wind direction sensor,
Wind Speed Sensor,Wind Speed transducer,Wind Speed test,Wind Speed testing,Wind Speed control,wind speed indicator,Wind Speed monitor,Wind Direction Sensor,
Voltage Type Wind Direction Sensor,RS485 wind direction sensor,wind direction monitor,wind direction testing,wind direction transducer,Anemometer,anemoscope,
dogvane,Depapepe,wind indicator,anemoscope,Anemometer,wind velocity indicator,HWA,ventometer,wind gage,air speed gauge,wind direction sensor,wind,speed,sensor,direction,weather,station,weather station,
wind speed and direction sensor,wind sensor direction,wind direction,anemometer wind direction,wind speed direction,wind speed,anemometer wind speed meter,wind gauge, widely used in meteorology, oceans, environment, airports, ports, laboratories, industry and agriculture and transportation.
Contact Us for Wholesales Bottom Price
About the price: we are the factory, so the wholesales price is always avaibable, just leave message to list the product name, quantity and other details, will offer you very soon.
